Specifications
Model Number :
HX-Patch Cord-33
Place of Origin :
Guangdong, China
Brand Name :
HXFiber
Packaging Details :
paper box
Supply Ability :
1500000 Piece/Pieces per Month
Price :
Negotiable
Type :
Fiber optic patch cord
Use :
FTTH , FTTX
Warranty Time :
10 Years
Custom length :
1/2/3/5/7/9/10/100m or as your inquiry
Insertion Loss :
< 0.2 dB
Cable diameter :
0.9 / 2.0 / 3.0 mm
Return loss :
> 55 dB
Material of Outer sheath :
PVC,LSZH,PU,PE
Armored Tube :
with steel armored
Working Temperature(℃) :
-25℃~+70℃
Connector Ferrule :
Zirconia Ceramic
Polish Type :
SMF:UPC-UPC;UPC-APC;APC-UPC;APC-APC; MMF:UPC-UPC
MOQ :
1pcs
Port :
shenzhen
Description
Products Description

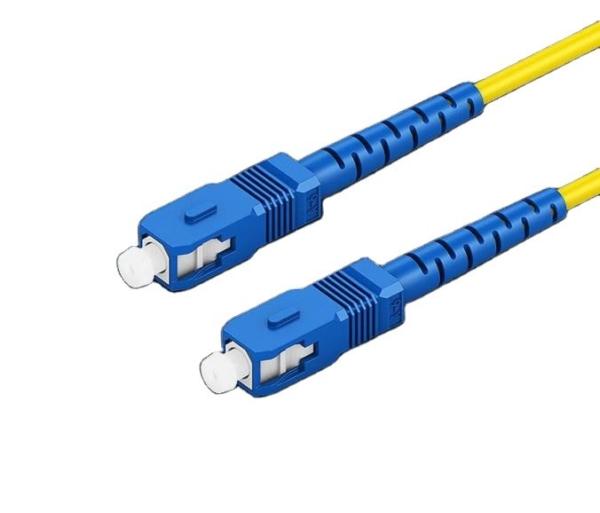

G657A 3.0mm Singlemode Simplex Anti Rodent Armored Fiber Patch Cord
Connector Type
SC to SC
Jacket OD
3.0mm
Fiber Mode
9/125μm
Jacket Color
Yellow/Blue/Black
Polish Type
UPC to UPC
Wavelength
1310/1550nm
Fiber Count
Simplex/Duplex
Jacket Material
PVC/LSZH
Insertion loss
≤0.3dB
Interchangeability
≤0.2dB
Return loss
≥55dB
Vibration
≤0.2dB
Operating temperature
-40~75°C
Storage temperature
-45~85°C
Length
2/5/10/15/20m/100m customized length
delivery date
3-7days according the quantity
G657A 3.0mm Singlemode Simplex Anti Rodent Armored Fiber Patch Cord
3.0mm Armored Fiber Patch Cord
Structure:
tight-buffered fiber+ Steel Armored + Aramid yarn + jacket
Tight-buffered fiber:
SM:G652D,G657A1,G657A2 MM:62.5/125,50/125(OM3,OM4)
Available 0.9mm PVC tight-buffered fiber

Color:
SM/ White or yellow
MM/Blue or orange / Aqua
Characteristics: Soft, flexible, water blocked, Anti Rodent , Anti-Bending, UV resistant, easy to lay and splice, and with big capacity data transmission;
Good mechanical and environmental characteristics;
