ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
Specifications
Model Number :
WGX-ZD1
Place of Origin :
Guangdong, China
Brand Name :
HX
Certification :
CE RoHS FCC
Packaging Details :
Export carton
Supply Ability :
1500000 Piece/Pieces per Month
Price :
Negotiable
Type :
Fiber optic distribution box, Fiber Optic Distribution Box
Use :
FTTX, FTTH FTTB FTTX Network
Warranty Time :
12 Month
Network :
TCP, GPRS, wifi
Product name :
FTTH 8 Core fiber optic terminal box
Application :
FTTH FTTxFTTB Network
Color :
Black /White /OEM
Material :
ABS
Core :
8 Core
Weight :
0.6kg

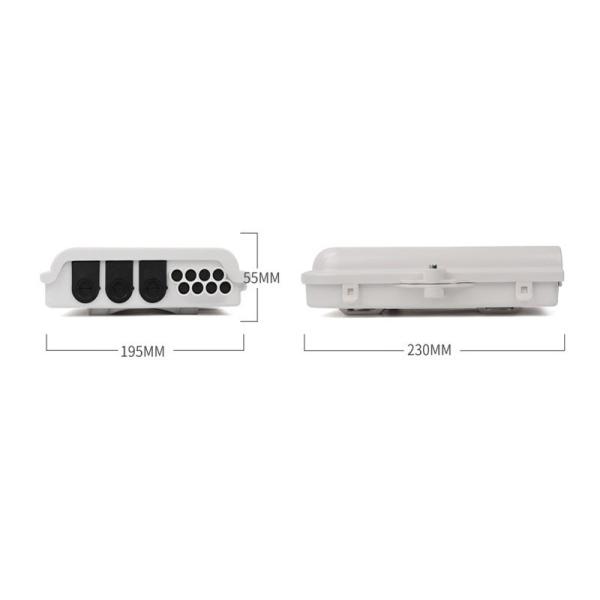

Size :
230*195*55 mm
Port :
Shenzhen
Description

ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Distribution Splitter Box 12 Month

Product Name
8 Core box distribution
Size
230*195*55 mm
Weight
0.6kg
Installation (Wall-mounted/Pole-mounting)
Wall-mounted/Pole-mounting
Other Accessories
Wall mounting kits,Screws,Cable tie,Heat shrink protective sleeves,Key
Environmental requirement
Working temperature
-40℃~+85℃
Relative humidity
≤85%(+30℃)
Atmospheric pressure
70KPa~106Kpa
Main technical datasheet
Insertion loss
≤0.2dB
UPC return loss
≥50dB
APC return loss
≥60dB
Life of insertion and extraction
>1000 times
Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC); IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
Product Description
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month

PRODUCT CONCEPT
The fiber splitter box is also called the fiber distribution box, the client wiring equipment in the FTTH optical network, mainly used for the fusion splicing, light splitting, wiring output and other functions of the optical transmission terminal, and can effectively terminate, protect and manage the optical cable , the necessary equipment in the optical network transmission process.
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
Product Design
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
Customer evaluation
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
Company Profile
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept
Service&Production Capacity
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
Foreign Exhibitions
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
Cooperative Brand&Certification
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
Payment&Transportation Method
ABS 4Core 8Core 12Core 24Core 48Core Fiber Optic Splitter Terminal Box 12 Month
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
