7 Inch LCD Display Module 50 Pin Dot Matrix Screen 800x480 320 Brightness
7 Inch LCD Display Module 50 Pin Dot Matrix Screen 800x480 320 Brightness
7 Inch LCD Display Module 50 Pin Dot Matrix Screen 800x480 320 Brightness
7 Inch LCD Display Module 50 Pin Dot Matrix Screen 800x480 320 Brightness
7 Inch LCD Display Module 50 Pin Dot Matrix Screen 800x480 320 Brightness
7 Inch LCD Display Module 50 Pin Dot Matrix Screen 800x480 320 Brightness
Specifications
Brand Name :
HuaXianJing
Model Number :
HXJ7800480
Certification :
ISO14001/ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
100K per month
Delivery Time :
5weeks~8weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Name :
LCD Display Module
Backlight Luminance :
320 Cd/m2
Screen Size :
7 Inch LCD Display Module
Panel Size(mm) :
165*100*5.8
Viewing Area(mm) :
154.08*85.92
Display resolution :
800x480 pexels
interface :
RGB
Driver Ic Model :
EK9713CA
Pin count :
50 Pin
Operating voltage :
3-3.6V
Description

7 Inch LCD Display Module 50pin RGB interface 800*480 resolution wide viewing angle dot matrix display 320 brightness driver IC EK9713CA can be equipped with touch function

It s a 7 Inch LCD Display Module is a remarkable display solution that combines functionality and versatility. With a resolution of 800 * 480, it presents clear and legible visuals, making it suitable for a wide range of applications. Whether it's for displaying device status, operational instructions, or simple graphical interfaces, this module offers an effective visual communication medium.
It features a 50pin RGB interface, which provides robust connectivity and enables seamless integration with various control systems. This interface is designed to handle the transmission of color data efficiently, ensuring vivid and accurate color reproduction on the display. The wide viewing angle dot matrix display is a standout feature. It allows for excellent visibility from multiple directions, ensuring that the content remains clear and viewable whether the user is looking at it straight on or from an oblique angle. This is especially crucial in applications where multiple people may need to view the screen simultaneously or where the device's orientation can vary.
Boasting a brightness of 320 nits, it provides satisfactory readability in typical indoor and moderately lit outdoor environments. The Driver IC EK9713CA is at the heart of its reliable performance, driving the display to deliver consistent and high-quality images. Additionally, the option to equip it with a touch function further expands its usability. Users can interact with the screen intuitively, making selections, inputting data, or navigating through menus with ease. The touch functionality can be customized to meet different application requirements, enhancing the overall user experience.
The 7-inch size strikes a balance between compactness and display area. It's large enough to show detailed information while remaining small enough to fit into a variety of device enclosures. Its durable construction and reliable performance make it a popular choice for engineers and designers looking to incorporate a high-quality display into their projects.
Product Features:

  • 800 * 480 resolution for clear and legible visual output.

  • 50pin RGB interface for efficient color data transmission and connectivity.

  • Wide viewing angle dot matrix display for excellent visibility from all directions.

  • 320 brightness for satisfactory readability in common lighting conditions.

  • Driver IC EK9713CA for reliable and high-quality display driving.

  • Optional touch function for intuitive user interaction.

  • 7-inch size for a balanced display solution.

Applicable Scenarios:

  • In industrial control panels, it can serve as a key display component. Operators can view real-time machine status, production data, and control instructions. The wide viewing angle ensures that the information is visible to everyone in the vicinity, and the 50pin RGB interface can be easily connected to the control system. The 800 * 480 resolution is sufficient to display detailed charts and graphs, and the touch function, if equipped, allows for quick adjustments and operations, even with gloved hands. The 320 brightness is suitable for the often brightly lit factory environment.

  • For digital signage in public places, such as malls or airports. The display can showcase advertisements, flight information, or directional signs. The wide viewing angle dot matrix display makes it visible to passersby from different angles, and the 50pin RGB interface can be integrated with the signage's content management system. The 800 * 480 resolution is adequate to display eye-catching graphics and text, and the touch function can be used to provide interactive experiences, like allowing users to search for specific information. The 320 brightness is sufficient for the ambient lighting in these public areas.

  • In educational tablets for schools, it can function as the main display. Students can use it to access learning materials, participate in online classes, and complete interactive exercises. The 7-inch size is convenient for handheld use, and the 800 * 480 resolution is suitable for displaying educational content. The wide viewing angle ensures that students can see the screen clearly regardless of their seating position, and the touch function enables them to interact with the content easily. The 320 brightness is good for use in classrooms with normal lighting.

Product Parameter:

Panel Name

7Inch LCD Display Module

Dimensions

165*100*5.8mm

Viewing area size

154.08*85.92mm

brightness

320cd/m2

Resolution

800X480

working temperature

-20°C~+70°C

storage temperature

-30°C~+80°C

interface

RGB

Driver IC

EK9713CA

Pin count

50 Pin

Operating voltage

3-3.6V

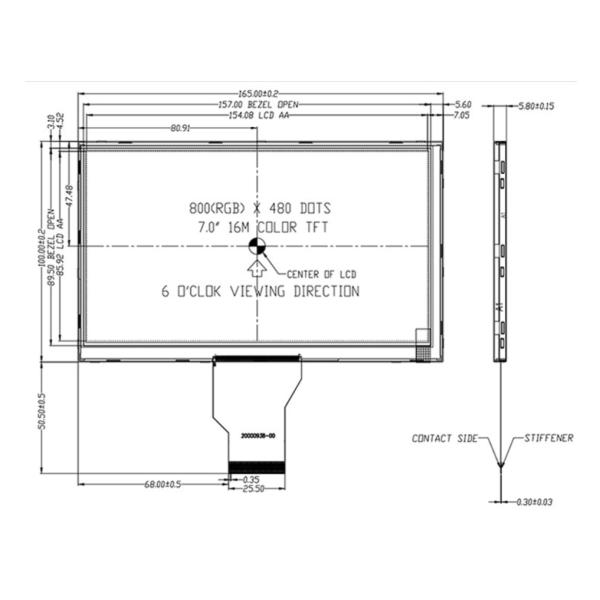

Drawing:

7 Inch LCD Display Module 50 Pin Dot Matrix Screen 800x480 320 Brightness
