Specifications
Brand Name :
HuaXianJing
Model Number :
HXJ28240320
Certification :
ISO14001/ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
100K per month
Delivery Time :
5weeks~8weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Name :
LCD Display Module
Backlight Luminance :
300 Cd/m2
Screen Size :
2.8 Inch LCD Display Module
Panel Size(mm) :
50*69.2*2.3
Viewing Area(mm) :
43.2*57.6
Display resolution :
240x320 pexels
Pixel Arrangement :
SPI
Driver Ic Model :
ST7789V
Pin count :
14 Pin
Description

2.8 Inch LCD Display Module full viewing angle 14pin SPI interface 240*320 resolution 300 brightness driver IC ST7789V

The 2.8 Inch LCD Display Module is a remarkable display component that combines functionality and compactness. With a resolution of 240 * 320, it offers clear and detailed visuals, making it suitable for presenting a wide variety of information, from simple icons to more complex text and graphics.
Featuring a 14pin SPI interface, it provides convenient connectivity options, allowing for easy integration into numerous electronic devices. This interface simplifies the connection process, whether it's being incorporated into a handheld gadget, a small sensor device, or an IoT module.
Boasting a full viewing angle, users can enjoy consistent and clear visuals from any direction. This is extremely valuable in applications where the display orientation may vary, such as in portable instruments or wearable devices. No matter how the user positions the device, the screen content remains easily visible.
With a brightness of 300 nits, it ensures excellent readability in typical indoor environments and can handle moderately lit outdoor scenarios. The driver IC ST7789V powers the display, guaranteeing reliable and stable performance, consistently delivering sharp images.
Its relatively small size makes it a great choice for space-constrained applications. The 2.8-inch display takes up minimal space while still providing ample visual real estate to convey essential information. It's an ideal option for designers looking to create compact and efficient electronics.
Product Features:

  • 240 * 320 resolution for clear and detailed visual output.

  • 14pin SPI interface for easy and versatile device integration.

  • Full viewing angle for optimal visibility from all directions.

  • 300 brightness for great visibility in common lighting.

  • Driver IC ST7789V for dependable display operation.

  • Compact 2.8-inch size for space-limited applications.

Applicable Scenarios:

  • In handheld GPS devices, it serves as the main display, showing maps, directions, and location details. The 240 * 320 resolution is sufficient to display clear route guidance, the full viewing angle ensures that the user can see the screen regardless of the angle of the device while on the move, and the 14pin SPI interface can communicate with the device's microcontroller. The 300 brightness is visible in most outdoor and indoor settings.

  • For industrial handheld testers, like electrical testers or temperature gauges, it can display measurement results, unit settings, and warning messages. The high resolution helps technicians read the data accurately, the full viewing angle allows for easy viewing in different working positions, and the SPI interface can connect to the device's circuitry. The 300 brightness is suitable for use in factories or fieldwork environments.

  • In wearable fitness trackers, it can function as a secondary display to show real-time fitness data, such as heart rate, steps taken, and calorie burn. The small size fits well into the compact tracker design, the resolution is enough to present the key data, the full viewing angle is useful when the tracker is worn on the wrist in different orientations, and the 300 brightness ensures that users can monitor their fitness information clearly in indoor and outdoor settings.

Product Parameter:

Panel Name

2.8Inch LCD Display Module

Dimensions

50*69.2*2.3mm

Viewing area size

43.2*57.6mm

brightness

240cd/m2

Resolution

240*320

working temperature

-20°C~+70°C

storage temperature

-30°C~+80°C

interface

SPI

Driver IC

ST7789V

Pin count

14 Pin

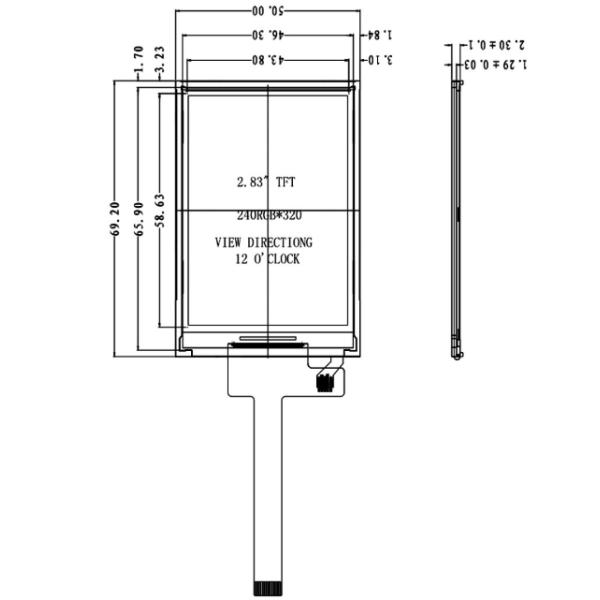

Drawing:
