2.4 Inch Capacitive Touch Screen 8 bit 16 bit Parallel Serial Interface Resolution 240*320 Driver IC GC9306 400 Brightness
2.4 Inch Capacitive Touch Screen 8 bit 16 bit Parallel Serial Interface Resolution 240*320 Driver IC GC9306 400 Brightness
2.4 Inch Capacitive Touch Screen 8 bit 16 bit Parallel Serial Interface Resolution 240*320 Driver IC GC9306 400 Brightness
2.4 Inch Capacitive Touch Screen 8 bit 16 bit Parallel Serial Interface Resolution 240*320 Driver IC GC9306 400 Brightness
Specifications
Brand Name :
HuaXianJing
Model Number :
HXJM024C332-CTP
Certification :
ISO14001/ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
100K per month
Delivery Time :
5weeks~8weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Backlight Luminance :
400Cd/m2
Screen Size :
2.4 inch capacitive touch LCD
Panel Size(mm) :
42.72*60.26*2.36
Viewing Area(mm) :
37.72*49.96
Display resolution :
240*320 pexels
interface :
Parallel/serial
Driver Ic Model :
GC9306
Touch mode :
capacitive
Description

2.4 inch capacitive touch screen 8-bit 16-bit parallel and serial interface Resolution: 240*320 Driver IC GC9306 400 brightness
The 2.4 inch capacitive touch screen is a highly functional and versatile display solution. It is equipped with both 8 - bit and 16 - bit parallel interfaces as well as a serial interface, providing flexible connection options for seamless integration with a wide range of devices. With a resolution of 240×320 pixels, it offers sharp and detailed visuals, capable of presenting clear text, vivid images, and smooth graphics. Driven by the GC9306 IC, it ensures stable performance and accurate color representation. Boasting a brightness of 400 nits, the screen remains clearly visible even in well - lit environments.
​
Product Features​
  • Capacitive Touch Technology: Offers a highly responsive touch experience, enabling precise finger inputs and multi - touch gestures. This technology allows for intuitive interaction, enhancing user experience in various applications.​
  • Versatile Interfaces: The availability of 8 - bit and 16 - bit parallel interfaces, along with a serial interface, provides great flexibility. Parallel interfaces enable high - speed data transfer, which is beneficial for applications that require quick display updates, while the serial interface simplifies connections in space - constrained or low - cost designs.​
  • High - Resolution Display: The 240×320 pixel resolution ensures detailed visual output. Whether it's displaying complex graphical user interfaces, small - scale images, or text - heavy content, the screen can present information with clarity.​
  • Reliable GC9306 Driver IC: The GC9306 IC guarantees stable operation, consistent color accuracy, and smooth refresh rates. It effectively manages the power consumption of the display, contributing to energy - efficient performance.​
  • High Brightness: With a brightness of 400 nits, the touch screen is suitable for use in environments with different lighting conditions. It can be easily viewed in bright sunlight or well - lit indoor spaces, making it adaptable to various usage scenarios.​
Applicable Scenarios​
  • Portable Electronic Devices: Ideal for use in smartphones, tablets, and portable media players. The capacitive touch technology and high - resolution display provide users with an immersive and user - friendly experience. For example, in a portable media player, it can display vivid video content and allow for easy navigation through playlists.​
  • Industrial Control Panels: In industrial settings, it can be used in control panels for machinery, equipment, and production lines. Operators can use the touch screen to input commands, monitor real - time data, and control processes. The versatile interfaces and reliable driver IC ensure stable performance in industrial environments.​
  • Interactive Kiosks: In public areas such as shopping malls, airports, and museums, interactive kiosks equipped with this touch screen can provide users with information, product details, and navigation assistance. The high brightness and responsive touch technology make it suitable for public use, where quick and easy interaction is required.​
  • Automotive Infotainment Systems: Can be integrated into car infotainment systems to display maps, music playlists, and vehicle information. The capacitive touch functionality allows for convenient operation while driving, and the high - resolution display ensures clear visibility of important information.


Product Parameter


Panel Name

2.4 inch capacitive touch LCD

Dimensions

42.72*60.26*2.36mm

Viewing area size

37.72*49.96mm

Backlight Luminance

400Cd/m2

Resolution

240*320

working temperature

-20°C~+70°C

storage temperature

-30°C~+80°C

interface

Parallel/serial

Driver IC

GC9306

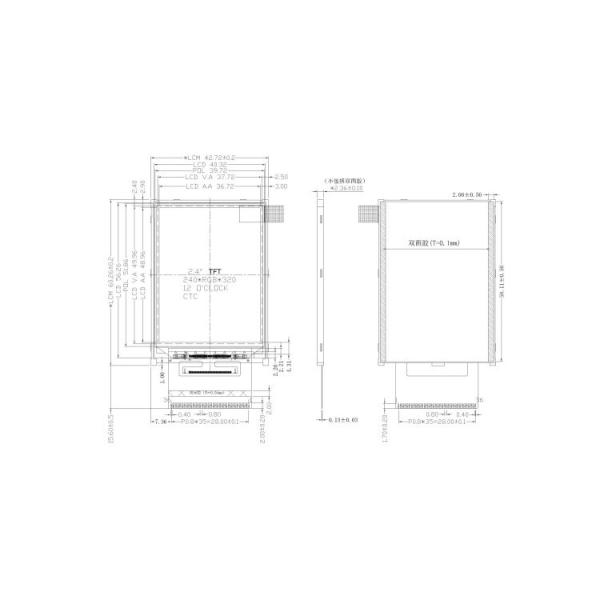

Drawing


2.4 Inch Capacitive Touch Screen 8 bit 16 bit Parallel Serial Interface Resolution 240*320 Driver IC GC9306 400 Brightness
