5 Tons Specifications Cat Head Tower Crane For Civil Construction Projects
5 Tons Specifications Cat Head Tower Crane For Civil Construction Projects
5 Tons Specifications Cat Head Tower Crane For Civil Construction Projects
5 Tons Specifications Cat Head Tower Crane For Civil Construction Projects
5 Tons Specifications Cat Head Tower Crane For Civil Construction Projects
5 Tons Specifications Cat Head Tower Crane For Civil Construction Projects
Specifications
Brand Name :
AVITT or others
Model Number :
QTZ50(5010)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1
Price :
$32100-35200 per set
Payment Terms :
TT, LC
Supply Ability :
40 sets per month
Delivery Time :
10 days after receiving the deposit or origin LC
Packaging Details :
Naked packing, 3*40’HQ+1*20'GP containers.
Condition :
100% New
Application :
Buildings and projects
Type :
Fixed with tower head
Max. load :
5t
Jib length :
50m
Tip. load :
1.0t
Power supply :
380V/50Hz or according to client's requirements
Mast section :
1.5*1.5*2.5m
Description

5 Tons Specifications Cat Head Tower Crane For Civil Construction Projects

Performance parameters and technical indexes reach both domestic and international advanced level.

a. Max. jib length: 50m
b. Max. lifting capacity 5t
c. Max. hoisting capacity at jib tip: 1.0t
d. Max. lifting moment 500 t.m
e. Max. free-standing height: 30m

f. Max. working height of anchored crane: 120m
g. Types of tower crane: fixed with outer side climbing type / inner climbing type and mobile type

Specification

Rated Lifting Moment 500KN.M
Rated Loading Capacity 5t
Max. Lifting Load 5t
Tip Load 1.0t
Max. Lifting Height 120m
Free standing height 30m
Span 50m
Working range 3 to 50m
Slewing speed 0.7/0.35r/min
Trolley speed 38.6/25.2 m/min
Jacking-up speed 0.4 m/min
Hoisting speed (a=2)65.14/32.57/7.0; (a=4)32.14/15.60/3.5
Counter jib length 13m
Tower height height 6.2m
Power supply 380V/50Hz or according to client's requirements
Power Capacity 24.9Kw
Electric switch box Schneider
Main Material 135*10mm /square tube/Q235B
Mast section 1.6*1.6*2.5m,

Competitive Advantage:

1. Focusing on tower crane exporting for 15 years;

2. Manufacturer's representative;

3. Preferential ex-factory price, excellent product quality and good after-sales service are our pursuit;

4. Our tower cranes had exported to more than 20 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar and Algeria etc.

We are dedicated to provide you professional solutions with Aclass Service!

Applications:

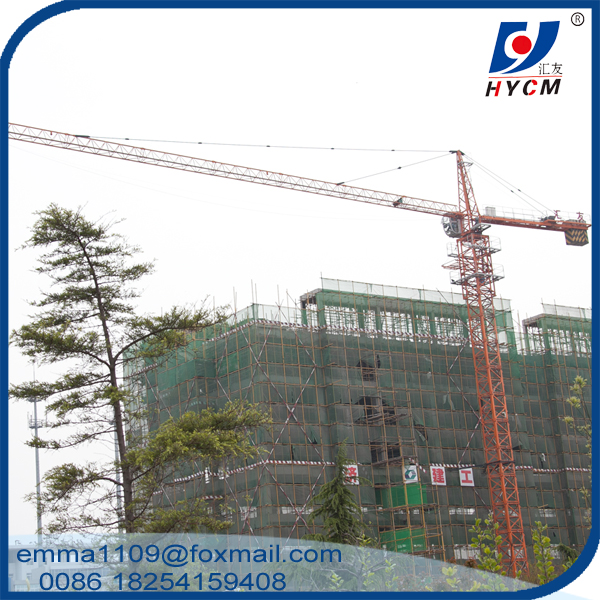

It’s used in construction building site, such as Multi commercial housing, High rise building, Skyscraper, and Workshop Material handling etc.

5 Tons Specifications Cat Head Tower Crane For Civil Construction Projects

5 Tons Specifications Cat Head Tower Crane For Civil Construction Projects
