50m Kind Of Hammerhead Tower Craines Of Construction Cranes Tower 5008
50m Kind Of Hammerhead Tower Craines Of Construction Cranes Tower 5008
50m Kind Of Hammerhead Tower Craines Of Construction Cranes Tower 5008
50m Kind Of Hammerhead Tower Craines Of Construction Cranes Tower 5008
50m Kind Of Hammerhead Tower Craines Of Construction Cranes Tower 5008
50m Kind Of Hammerhead Tower Craines Of Construction Cranes Tower 5008
Specifications
Brand Name :
HYCM
Model Number :
QTZ50(5008) Tower Crane
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1
Price :
$28200-29800 per set
Payment Terms :
TT, LC
Supply Ability :
40 sets per month
Delivery Time :
10 days after receiving the deposit or origin LC
Packaging Details :
Naked packing, 3*40’HQ containers.
Condition :
100% New
Application :
Buildings and projects
Type :
Fixed with tower head
Max. load :
4 t
Jib length :
50 m
Tip. load :
0.8 t
Power supply :
380V/50Hz, 415V/50Hz, 220V/50Hz or according to clients need
Mast section :
1.6*1.6*2.2 m
Main chord :
160*12 mm
After sale service :
Engineers available to service overseas
Description

50m Kind Of Hammerhead Tower Craines Of Construction Cranes Tower 5008

Overview

1. This type Tower Cranes with the “top head” also called Topkit tower crane, Cat Head tower crane, Kit Top tower crane ect.

2. This Small tower crane or mini tower crane used for lower story buildings construction, normally 5-15 lays.

3. This crane can save time on other jobsite duties by easily moving materials from one place to another.

4. They can be used in conjunction with other tower cranes at sites where space is confined

Specification

Model QTZ50 (5008) Tower Crane
Type Fixed
Working Radius (m) 50
Max. Load Capacity (T) 4
Tip Load (T) 0.8
Free standing height (m) 29
Max. Height with anchorages (m) 120
Mast Section dimension (m) 1.6×1.6×2.2, angle steel 160×12mm

Hoisting Mechanism

 Speed (m/min)

(a=2) 64.15/32.57/7.0

(a=4) 32.14/15.60/3.5
Motor power (kw) 15/15/4

Slewing Mechanism

 Speed (r/min) 0.70/0.35
Motor power (kw) 3.7

Trolleying Mechanism

 Speed (m/min) 38.6/25.2
Motor power (kw) 2.2/1.5

Jacking-up System

 Speed (m/min) 0.4
Motor power (kw) 4
Total Power (kw) 24.9
Power Supply 380V/50Hz or according to clients needs

Our Advantage

High quality

Raw material is the foundation of product and the first hurdle to guarantee quality. tower crane bulk purchase steel directly from big steel factories like Jinan steel, improve the safety of product.

First class components

First-class product composed by first-class components, insisted to use the first class components, such as Schneider electric element etc.

Safety protection

Completely safety protection devices improves the safety, weight limiters, adopt the advanced pull-ring structure from abroad, moment adopt bow-board mechanical type which can be used in severe wild environment.

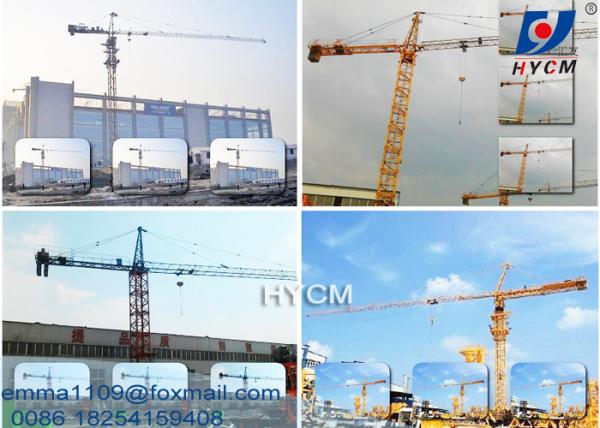

Pictures

50m Kind Of Hammerhead Tower Craines Of Construction Cranes Tower 500850m Kind Of Hammerhead Tower Craines Of Construction Cranes Tower 5008
