Specifications
Brand Name :
HYCM
Model Number :
QTZ50(5010) Tower Crane
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1
Price :
$34000-36300 per set
Payment Terms :
TT, LC
Supply Ability :
40 sets per month
Delivery Time :
10 days after receiving the deposit or origin LC
Packaging Details :
Naked packing, 3*40’HQ+1*20'GP containers.
Condition :
100% New
Application :
Buildings and projects
Type :
Fixed with tower head
Max. load :
5 t
Jib length :
50 m
Tip. load :
1.0 t
Power supply :
380V/50Hz or according to client's requirements
Mast section :
1.5*1.5*2.5 m
Color :
Yellow or according to clients needs
Control system :
normal one
Description

QTZ50 High-Rise Tower Crane For Construction Building 5 Tons Hydraulic Types


Service
a. Rapid response to any inquiry(within 3 hours) and 24 hours on-line service.
b. Competitive price which directly work with facotry. Welcome to visit us.
c. Professional inspection department to guarantee quality.
d. Engineers will go to construction site for guiding the installation and test-running for first time.
e. Easy-worn Spare parts is free supplied along with the tower crane.
f. 12 months super long time guarantee period.

Specification

ModelQTZ50 (TC5010) Tower Crane
TypeFixed and external climbing type
Working Radius (m)50
Max. Load Capacity (T)5
Tip Load (T)1.0
Freestanding height (m)30
Max. Height with anchorage (m)120
Mast Section dimension (m)1.6×1.6×2.5, Square 135×10mm

Hoisting Mechanism

Speed (m/min)

(a=2) 64.15/32.57/7.0
(a=4) 32.14/15.60/3.5

Motor power (kw)15/15/4

Slewing Mechanism

Speed (r/min)0.70/0.35
Motor power (kw)3.7*2

Trolleying Mechanism

Speed (m/min)38.6/25.2
Motor power (kw)2.2/1.5

Jacking-up System

Speed (m/min)0.4
Motor power (kw)4
Total Power (kw)24.9
Power Supply380V/50Hz or according to clients needs


Safety Features
1. Overload protection:If the material is over the capacity, the crane will give a sharp warning for protection itself
2. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
3. Control Method: Room control or remote control to avoid any injure to the operation staff
4. Main lifting motor: with thermal protection and currency protection

Main markets for tower crane:
1. Middle East
2. Asia
3. Russia
4. South America
5. Oceania
6. North America

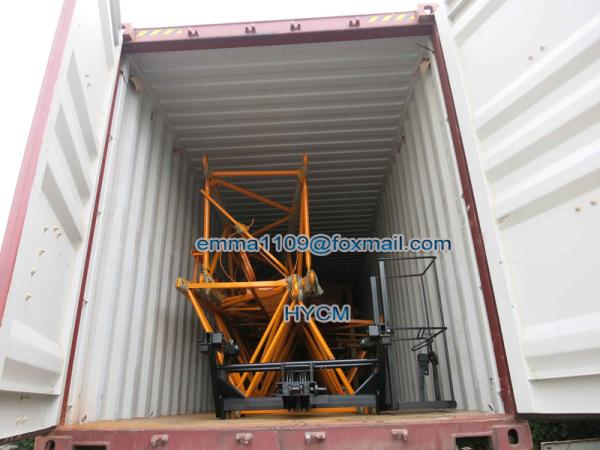

Loading Containers
QTZ50 High-Rise Tower Crane For Construction Building 5 Tons Hydraulic TypesQTZ50 High-Rise Tower Crane For Construction Building 5 Tons Hydraulic Types
