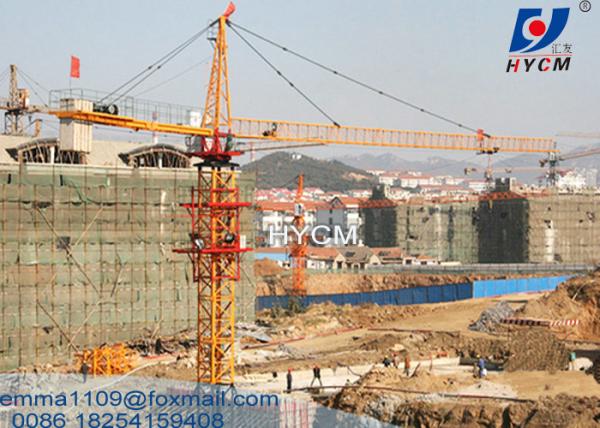

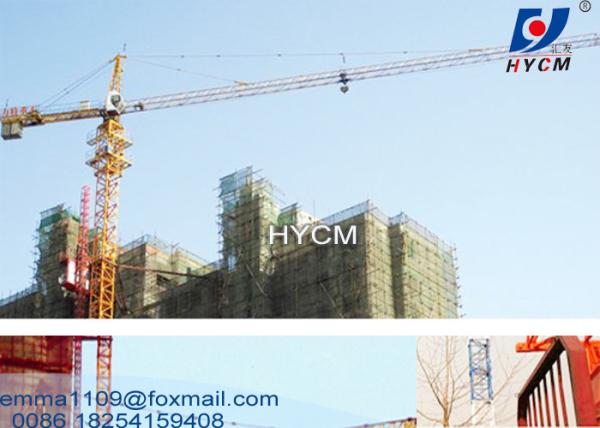

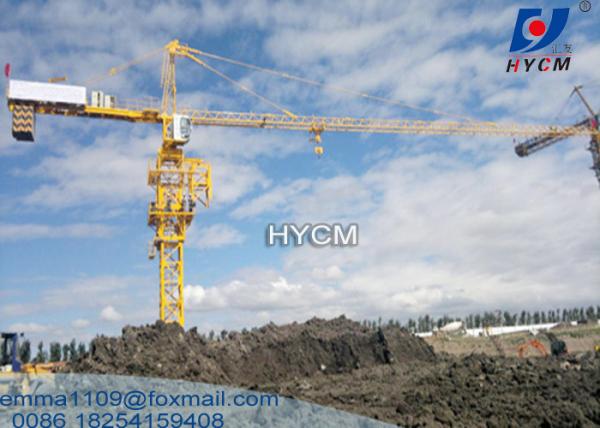

TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity
TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity
TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity
TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity
TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity
TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity
TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity
TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity
Specifications
Brand Name :
HYCM TOWER CRANE
Model Number :
TC6020 Topkit Tower Crane
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1
Price :
$105600-120500 per set
Payment Terms :
TT, LC
Supply Ability :
10 sets per month
Delivery Time :
25 days after receiving the deposit or origin LC
Packaging Details :
Naked packing, 6*40’HQ or 7*40;HQ containers.
Condition :
100% New
Application :
Buildings and projects Constructon
Type :
Top-slewing
Lload :
10tons
Jib :
60m
Tip. load :
2.0t
Power supply :
380V/50Hz or according to client's requirements
Mast section :
1.835*1.835*2.5m or 2*2*3m
Electric box :
Schneider
Power supply :
380V/50Hz, 415V/50Hz, 220V/50Hz or according to clients need
Description

TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity

Features

  • QTZ125(6020) fixed tower crane in Madagascar
  • Fixed / stationary tower crane
  • Max. load: 10ton
  • Tip load: 2.0ton
  • Jib length: 60m
  • CE, ISO, GOST, CU-TR certificates

Specification

Model QTZ125(6020)
Working Radius (m) 60
Max. Load Capactiy (T) 10
Tip Load (T) 2.0
Free Height Under Hook (m) 50
Max. Height with anchorages (m) 180
Mast Section dimension (m) 1.835×1.835×2.5 or 2*2*3
Hoisting Mechanism Speed (m/min) 0-100 0-50
Motor power (kw) 45kw
Slewing Mechanism Speed (r/min) 0-0.6
Motor power (kw) 5.5×2
Trolleying Mechanism Speed (m/min) 0-60
Motor power (kw) 5.5
Jacking-up System Speed (m/min) 0.4
Motor power (kw) 5.5
Total Power (kw) 61.5 (not includes jacking-up system)
Power Supply 380V/50Hz
Base type Well shaped base/cross base/ base with ballast
No. of containers 7 x 40’HQs

Optional parts
(if you need them, please let me know in advance)

1) Anemometer
2) Air condition in cabin
3) Block box
4) Remote control

Main Features

1. This tower crane with tower head which connects with jib and counter-jib by tie bars, gives tower crane stronger structure and stable working condition. Besides, It’s the most popular type at home and abroad with cheap cost.

2. Four Mechanisms ( Hoisting mechanism, Slewing mechanism, trolleying mechanism and hydraulic climbing mechanism) work together to control the tower crane operation.

3. Equipped with full safety device to avoid over-weight loading, over-speed and over-torque, so that it is with good speed-control capacity, satisfactory operating stability and high work efficiency.

4.They can be widely used for construction of high-rise buildings, bridge and tower-like buildings.

Why choose us

1. A professional tower crane supplier in China with 15 years experience

2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications

3. Hydraulic self-climbing mechanism

4. Variable-frequency slewing mechanism

5. Varialbe-speed frequency PLC control System

6. Operation data display screen and Safety monitoring system (Black Box)

7. Various safety devices


Pictures

TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity

TC6020 60M Jib Topkit Tower Crane Top-slewing Type 10tons Load Capacity
