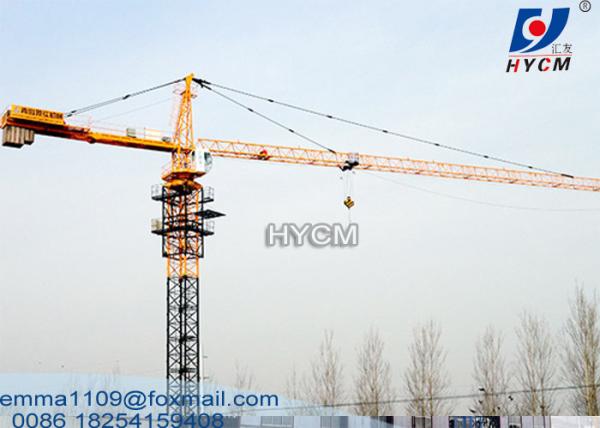

TC6515 Topkit Tower Crane100 mt height 65 mt reach 1.5 ton capacity

Features
1) Working Radius (m): 65
2) Max. Load Capactiy (T): 10
3) Tip Load (T): 1.5
4) Mast Section dimension (m): 1.835×1.835×2.5 or 2*2*3m
5) Hoisting Mechanism Speed (m/min): 0-100 0-50
6) Motor power (kw): 45kw
7) Slewing Mechanism Speed (r/min): 0-0.6
8) Motor power (kw): 5.5×2
9) Trolleying Mechanism Speed (m/min): 0-60
10) Motor power (kw): 5.5

Specification

Advantage
1.Automatic impeller blasting and spraying assembly line
Adopt the world first-class automatic spraying assembly line. The large structure parts are dealt with impeller blasting before spraying. That remove steel surface oxides and welding spatters effectively, eliminates the internal stress producing in welding process, increases the parts’ anti-figure strength and steel surface hardness, increases painting adhesion and prolong the service life of the product maximizes efficiency and saves energy.
2.Strict quality examination
The strict quality test, raw material test, test of welding, checking welding quality of appearance, assembly and adjustment of jib, tower head and pivot in factory.

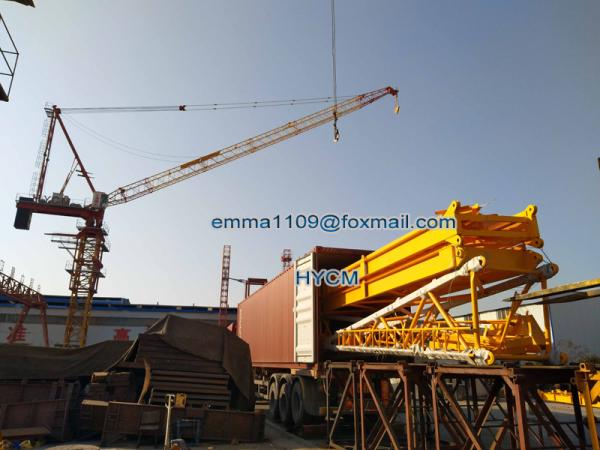

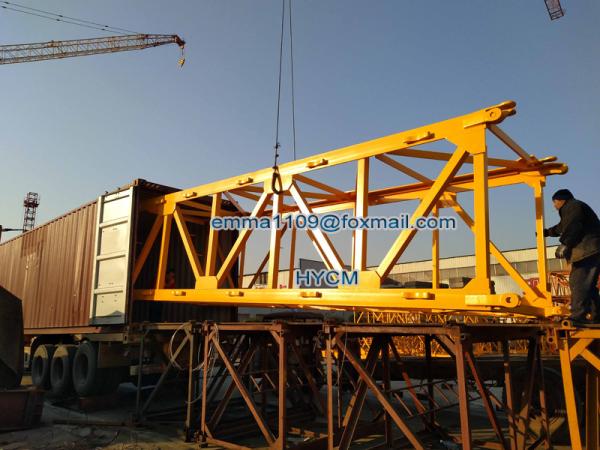

3.We have professional packing person to pack and put the tower crane in the container or on to the truck.

Introduction
TC6515 Tower Cranes are ideal for medium-sized and large construction projects, for example in industry and plant construction.

Customers around the world rely on our top-slewing cranes for major building projects. The intelligent high-performance drive units ensure high handling capacities and thus enhance efficiency.

The modular design means that top-slewing cranes can adjust to any specific requirement. We offer customers rapid erection and bespoke solutions.

Tower cranes are also suitable for use on very high buildings. Our customers benefit from enormous hoisting heights and hoist speeds.

Safety Device for hammerhead Tower Crane
1. 3 obstacle lights
2. Height limiter
3. Slewing limiter
4. Range/ trolley limiter
5. Weight limiter
6. Moment limiter
7. Anemometer and block box(optional)

Pictures
