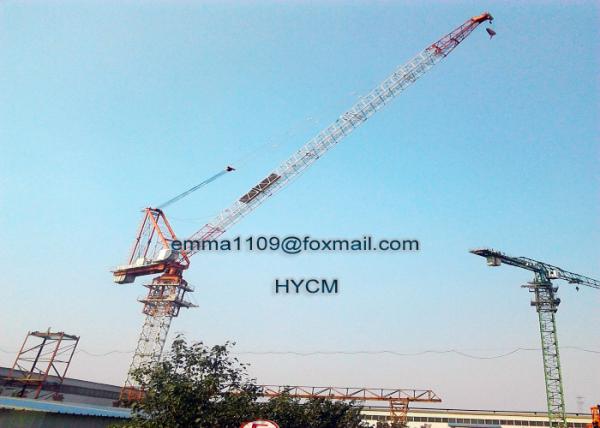

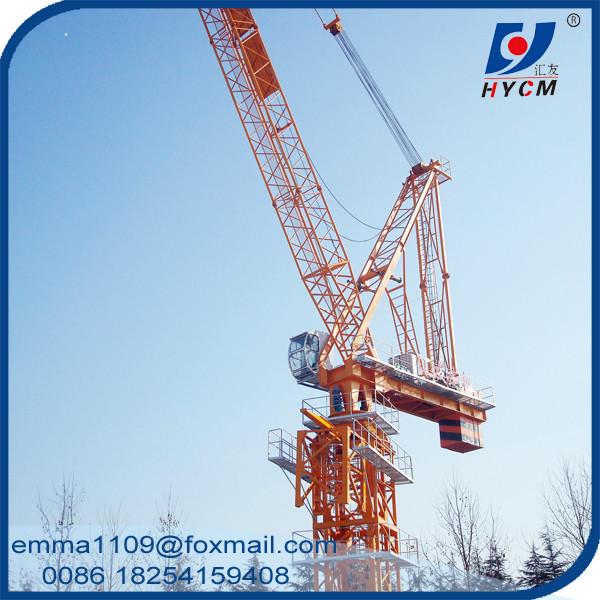

12tons D5030 Luffing Tower Crane 50 meters Lifting Jib Lenght 3.0t End Load
12tons D5030 Luffing Tower Crane 50 meters Lifting Jib Lenght 3.0t End Load
12tons D5030 Luffing Tower Crane 50 meters Lifting Jib Lenght 3.0t End Load
12tons D5030 Luffing Tower Crane 50 meters Lifting Jib Lenght 3.0t End Load
12tons D5030 Luffing Tower Crane 50 meters Lifting Jib Lenght 3.0t End Load
12tons D5030 Luffing Tower Crane 50 meters Lifting Jib Lenght 3.0t End Load
Specifications
Brand Name :
HYCM TOWER CRANE
Model Number :
QTD160(5030) Luffing Tower Crane
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set
Price :
$146100-152400 per set
Payment Terms :
TT, LC
Supply Ability :
5 sets per month
Delivery Time :
35 days after receiving the deposit or origin LC
Packaging Details :
Naked packing, 9*40’HQ containers.
Application :
Buildings and projects
Type :
Fixed with tower head
Max. load :
12 t
Jib length :
50 m
Tip. load :
3.0 t
Power supply :
380V/50Hz or according to client's requirements
Mast section :
2*2*3 m (split type) Potain mast
Main chord :
200*20 mm (angle steel)
Description

12tons D5030 Luffing Tower Crane 50 meters Lifting Jib Lenght 3.0t End Load


Performance parameters of D5030: performance parameters and technical indexes reach both domestic and international advanced level.
• Max. jib length: 50m;
• Max. lifting capacity 12t;
• Max. hoisting capacity at jib tip:3.0t;
• Rated lifting moment: 1600 Kn.m;
• Max. freestanding height: 37.5m; Max. working height of anchored crane: 160m;

Specification

Model QTD160 (5030) Luffing Jib Tower Crane
Working Radius (m) 50
Max. Load Capacity (T) 12
Tip Load (T) 3.0
Free standing height (m) 40
Max. Height with anchorages (m) 162
Mast Section dimension (m) 2×2×3, angle steel 200×20mm
Hoisting Mechanism Speed (m/min) (a=2) 0-100; (a=4) 0-50
Motor power (kw) 45
Slewing Mechanism Speed (r/min) 0-0.6
Motor power (kw) 2*5.5
Trolleying Mechanism Speed (m/min) 0-10
Motor power (kw) 35
Jacking-up System Speed (m/min) 0.4
Motor power (kw) 11
Total Power (kw) 91
Power Supply 380V/50Hz or according to clients needs

Competitive Advantage

  • Light structure, good stability, convenient transportation; Mast sections are SAW welding, safe and reliable. Advanced mechanisms, equipped with various safety devices, mechanical or Mechatronics products work in wretched conditions to keep tower cranes work well.
  • Equipped with excellent safety devices produced by world-class technology, including weight limiter, moment limiter, height limiter, radius limiter, slewing limiter, slewing and trolleying brakes.
  • Anti-broken wire rope device and anti-broken shaft device
  • Advanced electronic appliances.

Commercial Terms
Price: Negotiable
Delivery time: 15-30 days after receiving 30% advanced payment
Trade terms: FOB (qingdao)
Terms of Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Packing: Standard Exporting Packing
Warranty: At least 12 months

Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices

Photos

12tons D5030 Luffing Tower Crane 50 meters Lifting Jib Lenght 3.0t End Load
