3000kg Load Mini Derrick Crane Luffing Tower for Internal Climbing Tower Crane
3000kg Load Mini Derrick Crane Luffing Tower for Internal Climbing Tower Crane
3000kg Load Mini Derrick Crane Luffing Tower for Internal Climbing Tower Crane
3000kg Load Mini Derrick Crane Luffing Tower for Internal Climbing Tower Crane
3000kg Load Mini Derrick Crane Luffing Tower for Internal Climbing Tower Crane
3000kg Load Mini Derrick Crane Luffing Tower for Internal Climbing Tower Crane
Specifications
Brand Name :
HYCM
Model Number :
QD30(1515) Derrick Crane
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set
Price :
$32600-37300 per set
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
40 sets per month
Delivery Time :
15 days after receiving the deposit or origin LC
Packaging Details :
Naked packing, 1*40’HC containers per set 3t Derrick Crane
Condition :
100% New
Application :
Buildings and projects
Type :
Fixed with tower head
Max. load :
3t
Jib length :
15m
Tip. load :
1.5t
Power supply :
380V/50Hz or according to client's requirements
After sale service :
Engineers available to service overseas
Color :
yellow or according to clients need
Description

3000kg Load Mini Derrick Crane Luffing Tower for Internal Climbing Tower Crane


Short Parameter
1.QD30(1515) Derrick Tower Crane
2. Type: fixed
3. jib length:15m
4. tip load:1.5t
5. max.laod: 3t
6.height:120m

Introduction
1) Derrick Crane mainly consists of three mechanisms: luffing mechanism, slewing mechanism, and hoisting mechanism. Which luffing and slewing are VFD control with smooth speed.
2) The luffing ranges from 0° to 84° which cater for different project needs
3) The Derrick Crane features reasonable structure, stable movement, easy installation, easy operation, and high reliability.

Specification

Main Feature Main Parameter
Rated load moment capacity (KN.m) 300
Max. hoisting capacity(t) 3
Tip load(t) 1.5
Jib radius(m) 3.5~15
Height (m) 120
Hoisting mechanism Retarder JZQ595
Magnetic Brakes YWZ-250/45
Wire rope 6X37-11-1770-1-1
Hoisting speed (m/min) a2=65/32/7
Slewing mechanism Retarder XX100,195
Coupler YOX250A
Slewing speed (r/min) 0-0.6
Trolleying mechanism Retarder 18TQ10
Trolleying speed (m/min) 0-10
Slewing bearings Model 1220.32


Our Service
1) We provide our clients with a wide range of derrick cranes that are known for their high tolerance capacity, efficiency and reliability.
3) These are manufactured using high quality steel and other metals, procured from reliable vendors.
4) Could design the Derrick Cranes according to client requirements
5) Insurance the working condition and test the whole Derrick Crane on the factory before shipment

Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices

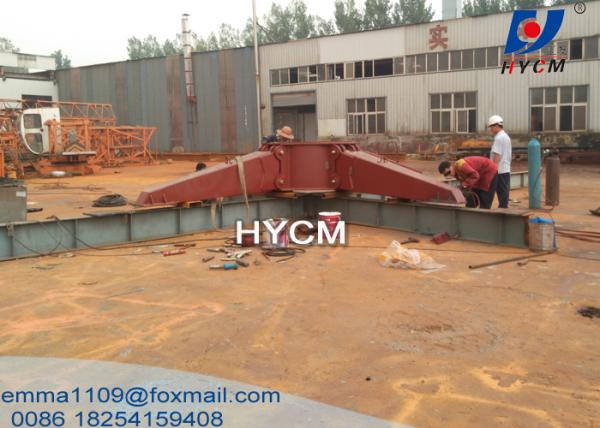

Photos
3000kg Load Mini Derrick Crane Luffing Tower for Internal Climbing Tower Crane

More products available: Construction Machinery

Tower Cranes

---- QTZ Topkit/Hammer Head Tower Cranes: Working jib from 30-75m and max.load from 4-25t.

---- PT Topless/Flat Top Tower Cranes: Working jib from 30-80m and max.load from 4-32t.

---D Luffing Tower Crane: Working jib from 25-60m and max.load from 3-25t.

---QD Derrick Crane: load from 3t to 25t for disassemble inner climbing tower cranes.

SC Construction Man and Material Elevator

------ Rack and pinion elevator, special for the lifting work of construction Man and Material, 1000kg to 4000kg capacity, Passenger and Material, up to 200m. .

SS Building Material Lift / Hoist

------ Wire rope lift, special material lifting work in construction site, 1000kg to 2000kg capacity, no passenger, up to 60m.
