Specifications
Brand Name :
HYCM
Model Number :
QTP250(7030)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of flat top tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
150 pcs of flat top tower crane each month
Delivery Time :
about 45 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for flat top tower crane
Type :
Tower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane Factory
Mast section dimensions :
2.0*2.0*3.0m (Split type)
Max. load :
16t
Max. Lifting Height :
206m
Freestanding height :
50m
Trolleying speed :
0-78m/min
Hoisting speed :
0-100 0-50m/min
Rated lifting moment :
2500KN.m
Slewing speed :
0-0.57r/min
Description

Tower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane Factory

Specifications for Tower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane Factory
Main Performance Main Specifications
Rated lifting moment (KN.m) 2500
Max. lifting load(t) 16
Tip load(t) 2.5
Working range(m) 3~70
Lifting height(m) Freestanding height 50
Attaching height 206
Mast section Main limb angle steel (mm) ∠200X200X26/ Q345B
Section size(mm) 2000X2000X3000
Lifting jib Upper chord(mm) φ140 round steel/ Q345B
Lower chord(mm) ∠180X18 two angle steel / Q345B
Parallel face width (mm) 1450X2200
Hoisting mechanism Reducer 55TLQ40
Motor YZTPF250M-4-55KW
Capacity of wire rope 560m
Wire rope 35W×7-20-1960 I right lay
Hoisting speed (m/min) 0-100 0-50
Slewing mechanism Reducer HP90.160.195
Motor YPHW132L2-4-9KW
Slewing speed (r/min) 0-0.57
Trolleying mechanism Reducer 7.5TXB7
Motor YZZ132S1-4-7.5KW
Trolleying speed( m/min) 0-78
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ180/125
Motor Y132M-11KW
Slewing bearing Type 1830.50
FAQ for Tower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane Factory

Q1: What is the Warranty for tower cranes?
A1: For the tower cranes, we can supply 1 year warranty. If there is quality problem of any parts (excluding easy worn spare parts) on our side during this period, we will supply a new one by free for replacement.
Q2: What is the mean of QTP for tower crane model? And please illustrate.
A2: QTP is classified according to China National Standard.
“Q” is the acronym of Crane in Chinese language (Qing Zhongji);
“T” is the acronym of Tower head type in Chinese language (Ta Shi);
And “P” is the acronym of topless in Chinese language (Ping Tou).
For example: QTP40 (4810) means topless tower crane, the rated lifting moment is 400 KN.m (40 is 10-1 of the rated lifting moment). The working jib length is 48 meter and tip load is 1.0t when jib length is 48m.
Q3: What are the optional parts for your tower cranes?
A3: 1) Anemometer
2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD (Variable Frenquency Drive) control
Q4: How many types of foundation for your tower crane?
A4: The most popular types of foundation are Cross-beam type, Well-shaped type, Base with ballast type and Outrigger type.
By the way, our commonly used one is Cross-beam type. If you need any other type, please let us know when you make the order. Thanks!
Q5: How many countries had your tower cranes exported to?
A5: Our tower cranes had exported to more than 30 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar, Thailand and Algeria etc.
Q6: What is your trade items of Tower Crane?
Qingdao or Shanghai or according to Clients' need. We could accept 1 set of our products as your trial order.

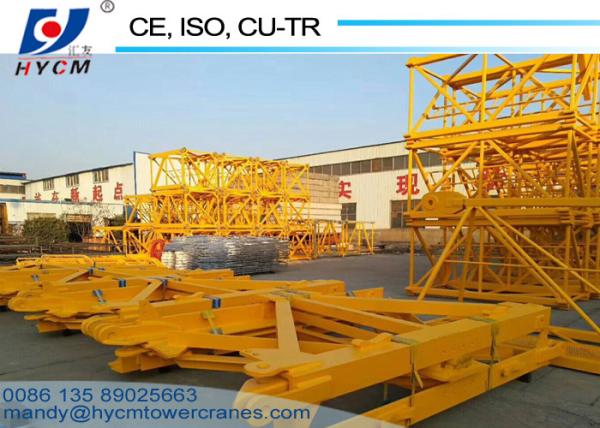

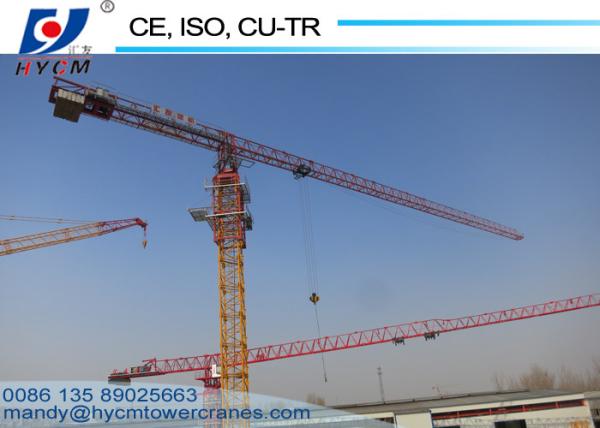

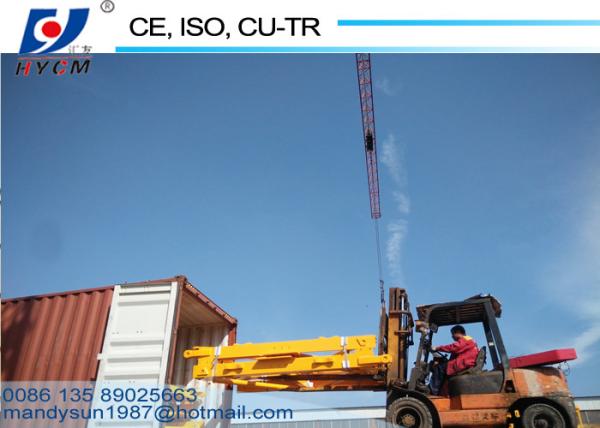

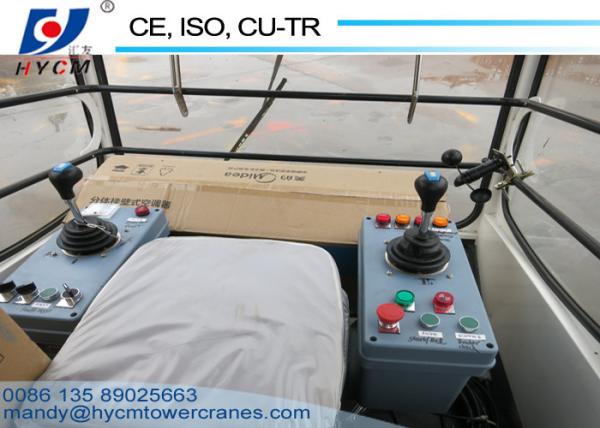

Photos for Tower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane Factory
Tower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane FactoryTower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane FactoryTower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane Factory
Tower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane FactoryTower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane FactoryTower Crane Manufacture 16 tons 7030 Construction Topless Tower Crane Factory
