Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Specifications
Brand Name :
HYCM
Model Number :
QTD2520
Certification :
CE, ISO, CU-TR
Place of Origin :
China
MOQ :
1 set of luffing tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
about 150 pcs of luffing tower crane per month
Delivery Time :
about 30 days after receiving the advance payment
Packaging Details :
In nude or as customized, 3*40'HQ containers for luffing tower crane of freestanding height
Type :
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Main Material :
160*16mm / Angle steel
Power Supply :
380V/50Hz or based on your inquiry
Arm Length :
25m
Condition :
100% Brand new
Max. Load :
6.0ton
Mast Section dimension :
1.2*1.2*3m (block type)
Color :
white and red
Tip Load :
2.0ton
No. of containers :
3 x 40’HQ containers
Description
Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service

Our Service for Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
Warranty Assurance
For our tower crane, we provide 1 year (from BL date) warranty period and quick replace service.


FAQ for Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Q1: What is the Warranty for tower cranes?
A1: For the tower cranes, we can supply 1 year warranty. If there is quality problem of any parts (excluding easy worn spare parts) on our side during this period, we will supply a new one by free for replacement

Q2: What is the mean of QTD for tower crane model? And please illustrate.
A2: QTD is classified according to China National Standard.
“Q” is the acronym of Crane in Chinese language (Qing Zhongji);
“T” is the acronym of Tower head type in Chinese language (Ta Shi);
And “D” is the acronym of luffing jib in Chinese language (Dong Bi).

For example: QTD125 (5020) means luffing jib tower crane, the rated lifting moment is 1250 KN.m (125 is 10-1 of the rated lifting moment). The working jib length is 50 meter and tip load is 2.0t when jib length is 50m.

Q3: What are the optional parts for your tower cranes?

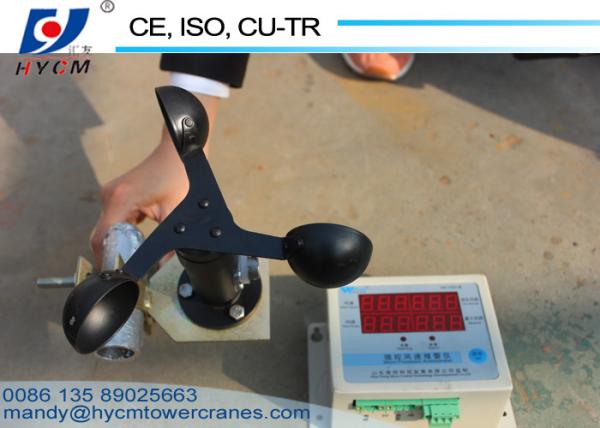

A3: 1) Anemometer
2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD (Variable Frenquency Drive) control


Specifications for Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service

Model QTD2520
Working Radius (m) 25
Max. Load Capacity (t) 6tons
Tip Load (t) 2.0
Mast Section Height (m) 34.5
Mast Section dimension (m)
1.2×1.2×3 (block type), angle steel 160 ×16mm
Hoisting Mechanism Speed (m/min) 0-86 0-43
Motor type YZTPF180L-4
Reducer type V3SH4-35.5-B-T
Slewing Mechanism Speed (r/min) 0-0.6
Motor type YTW132M2-6B5
Reducer type XX4-80.A1
Trolleying Mechanism Speed (m/min) 0-10
Motor type YZPF200L1-4-26KW
Reducer type V3SHS-20
Jacking-up System Speed (m/min) 0.4
Motor power (kw) 5.5
Total Power (kw) 63 (not includes jacking-up system)
Power Supply 380V/50Hz
No. of containers
3 x 40’HQ containers (block mast section)
"6S" Services for Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
Smart 1- Collaborate with others to solve your entire problem
Smart 2- Our goal is to provide you with a personalized service and complete solution
Specialized 1- Strict raw material control, only the best will pass the test
Specialized 2-Strict quality control, making flawless finished products
Speedy 1- Professional sales team, guarantee reply with-in 12 hours
Speedy 2- Speedy dispatch with minimal delays
Study 1—Study traditional Chinese values. Educating to be better person first, making better products after that
Study 2-Educate ourselves with professional for better service
Support 1-We have skilled expert providing all technical support
Support 2-Our front line workers are united and skilled
Sincere1- Think from our customers' perspective and fulfill their needs with our best effort.
Sincere 2-A warm welcome for every customer, build genuine relationships from friends all over the Globle.

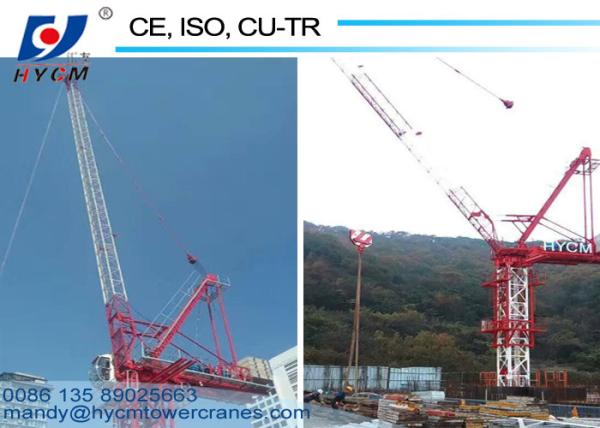

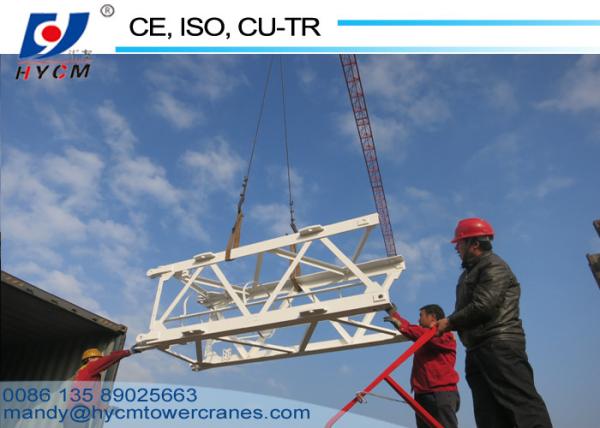

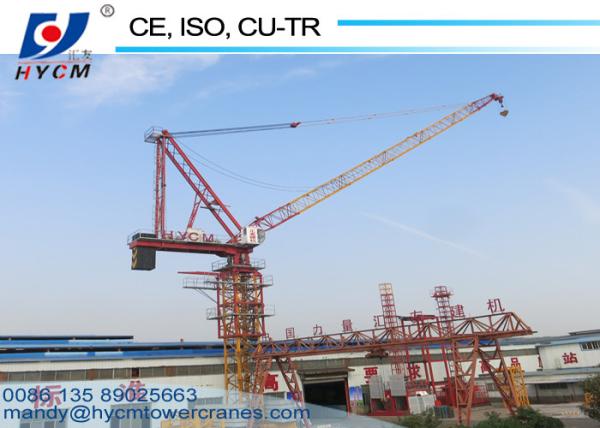

Photos for Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service

Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best ServiceLuffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service

Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service

Luffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best ServiceLuffing Jib Construction Tower Crane 6ton 1.2*1.2*3m Mast Section Customized Best Service
