Construction Building Hoist 4 ton Elevator with Spare Parts and VFD
Construction Building Hoist 4 ton Elevator with Spare Parts and VFD
Construction Building Hoist 4 ton Elevator with Spare Parts and VFD
Construction Building Hoist 4 ton Elevator with Spare Parts and VFD
Construction Building Hoist 4 ton Elevator with Spare Parts and VFD
Construction Building Hoist 4 ton Elevator with Spare Parts and VFD
Construction Building Hoist 4 ton Elevator with Spare Parts and VFD
Construction Building Hoist 4 ton Elevator with Spare Parts and VFD
Specifications
Place of Origin :
China
Brand Name :
HYCM
Certification :
CE, ISO, GOST, CU-TR
Model Number :
SC200/200
Type :
Construction Building Hoist 4 ton Elevator with Spare Parts and VFD
Max. lifting height :
150 m (Increased lifting height on request.)
Motor control :
Frequency controlled
Speed :
0-60 m/min
Motor power :
2 x 3 x 11 kw
Safety device :
Mechanical interlocking door system to guarantee the highest safety standards.
MOQ :
1 set of construction hoist
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
200 pcs of construction hoist per month
Delivery Time :
about 25 days after receiving advance payment
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for construction hoist
Payload capacity :
2 x 2000 kg
Color :
red, green or others
Description

Construction Building Hoist 4 ton Elevator with Spare Parts and VFD

Specifications for Construction Building Hoist 4 ton Elevator with Spare Parts and VFD

Rated Load 2*2000kg
Rtated Passengers 2*20
Rated Lifting Speed 34.4m/min
Motor Power 2*3*11kw
Motor Breaking Torque 120N.M
Overrun Protection Device breaking Speed 51-56m/min
Overrun Protection Device Rated Breaking Load 30KN
Max.Lifting Height 150-200m
Cage Size(L*W*H) 3.0*1.3*2.3m
Mast Section Size(L*W*H) 0.65*0.65*1.508/0.80*1.80*1.508m
Mast Weight 158/172kg
Rated Erection Load 200kg

Company information for HYCM-TOWER CRANES
HYCM-TOWER CRANES is a professional manufacturer and exporter of tower crane and construction hoist. Founded in 2002, our products has been sent to more than 30 countries, including Russia, Korea, Dubai, Singapore, Indonesia, Vietnam and Thailand etc.
After-sale service for Construction Building Hoist 4 ton Elevator with Spare Parts and VFD
1.Engineers are available to service machinery overseas.
2. Erection and Commissioning
3. Operator Training
4. Spare Parts Supply

FAQ for Construction Building Hoist 4 ton Elevator with Spare Parts and VFD

Q1: What is the Warranty for construction hoist?

A1: For construction hoist, we can supply 1 year’s warranty. If any quality problem (not artificial reason) on our side occurred during this period, we will supply a free new one as replacement.

Q2: What is the meaning of SC for construction hoist model? And please illustrate.

A2: SC is classified according to China National Standard.

“S” is the acronym of construction hoist in Chinese language (Shi Gong Sheng Jiang Ji);

“C” is the acronym of rack and pinion in Chinese language (Chi Lun Chi Tiao).

For example: SC200/200 means rack and pinion type construction hoist. Double cages (“x/x” stands for the cage number, if one cage just show SC200) and 2000kg per cage load (x means the 10-1 of rated lifting load)

Q3: What are the optional parts for your construction hoist?

A3:1) Mast Section with Hot Galvanized;

2) VFD (variable Frequency Drive) for construction hoist, the rated speed could reach 36m/min by using it.

Q4: What is the safety device for your construction hoist?

A4: The safety device for construction hoist includes door limiter (up door limiter, single door limiter and double door limiter), up and down limiter, up and down terminal limiter, anti-falling device, and weight limiter with player.

Q5: What is the difference between mast section height and traveling height?

A5: Mast section height is most used and it is indicated by mast section number.

For example: 50m mast section height need 33 pieces mast sections (33*1.508=49.76)

Traveling height means the travel distance of cage from the ground to the bottom of cage. It is normally about 7.5m less than mast section height.

If any question about construction hoist, please feel free to contact us. We are waiting for you!

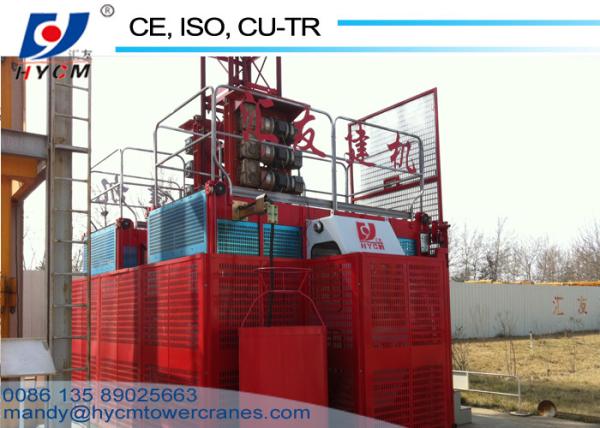

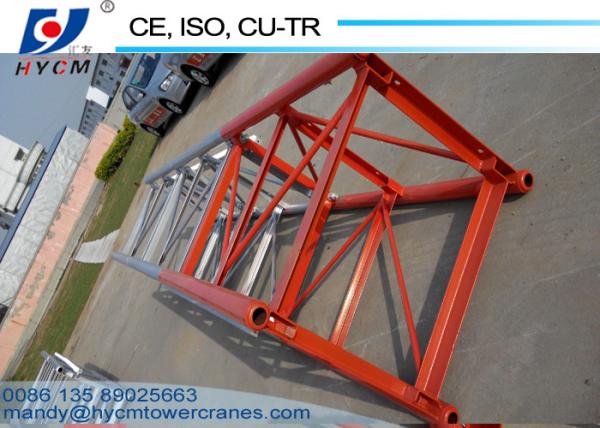

Photos for HYCM Construction Hoist and Spare Parts

Construction Building Hoist 4 ton Elevator with Spare Parts and VFDConstruction Building Hoist 4 ton Elevator with Spare Parts and VFDConstruction Building Hoist 4 ton Elevator with Spare Parts and VFD

Construction Building Hoist 4 ton Elevator with Spare Parts and VFDConstruction Building Hoist 4 ton Elevator with Spare Parts and VFDConstruction Building Hoist 4 ton Elevator with Spare Parts and VFD
