800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
Specifications
Brand Name :
HYCM
Model Number :
800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
Certification :
CE, ISO
Place of Origin :
China
Rated Load :
800kg
Motor power :
2*1.8 kw
Model :
800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
Rated speed :
9-11 m/min
Power supply :
440V/60Hz, 380V/50Hz or customized
Condition :
100% new
MOQ :
1 set of suspended working platform
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
300 pcs of suspended working platform per month
Delivery Time :
7-15 days after receiving the deposit
Packaging Details :

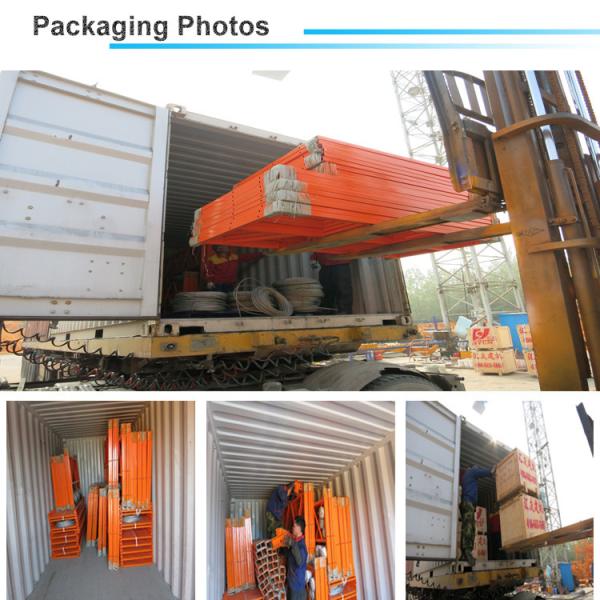

In nude or as customized, 20'GP or 40'HQ containers for suspended working platform
Description

800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform

Specification for 800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform

Type ZLP800 Suspended Platform
Rated load(kg) 800
Lifting speed(m/min) 8.2
Motor power(kw) 2×1.8 50HZ
Brake torque(Km) 15.2
Steel rope angle adjusting range(°) 3°- 8°
Distance between two steel rope(mm) ≤100
Rated stretch of front beam(mm) 1100-1700

Suspending Platform

 Locking Aluminum alloy
Nr. of platform rack Single rack
Nr. of platform 3
L×W×H(mm) (2500×3)×690×1180
Weight(kg) 217
Suspending mechanism(kg) 2×175 Kg

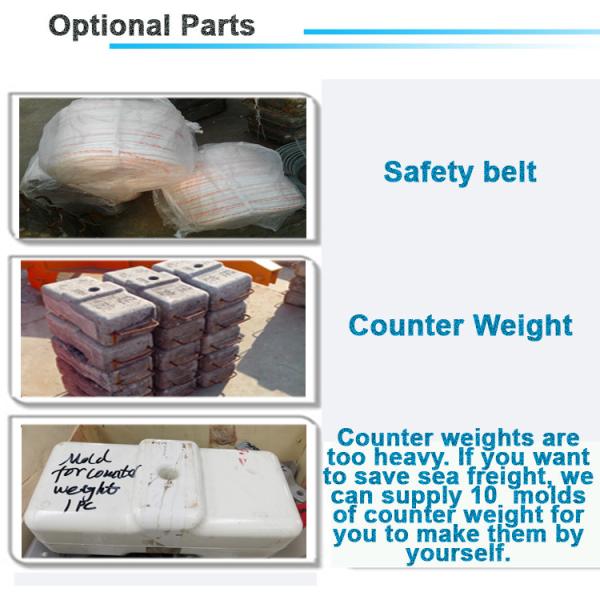

Counterweight(kg) optional 25×40pcs
Diameter of steel rope(mm) 8.6
Voltage(v) 3PHASES 380V or as per your inquiry

Features of 800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform

1.Our suspended working platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.

2. Besides, Suspension Working Platform can be used to lift specific weight.

3.Suspension power Working Platform is a temporary, flexible high access equipment for maintenance and construction work. distinguished from permanent access equipment. It can be disassembled conveniently.

4. ZLP800 suspended platform uses LTD80 hoisting motor. It has electromagnetic brake motor, centrifugal speed limiting device, two steep speed reducer and “a” type rope winding system.

5. Suspension Working Platform is a good helper for construciton and decoration of high buildings.

6. It compared with traditional scaffolding, can save labours and time to maintain the high buildings, such as industry workshop, water tower, bridge, TV tower, big chimney, cenotaph, dam,etc.

7. Hoisting motor can wind rope automatically. Operator only need to insert rope into the motor.

Why choose us

1. A professional tower crane supplier in China with 15 years experience

2. Exported to more than 30 countries with ISO9001 Certifications

3. Varialbe-speed frequency PLC control System

4. Operation data display screen and Safety monitoring system (Black Box)

5. Various safety devices for you

Description for 800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform

ZLP series Swing Stage, which is developed and produced by HYCM is ideal for building facade construction, decoration, cleaning and maintenance. It is also widely used in elevator installing, ship building and repairing, or in other areas such as big-size tank, bridge, embankment and chimney. ZLP series versatile knock-down platform provides workers safer, easier and more efficient platform access.

Absolutely guarantee life safety during Aerial working. Safety lock fasten the steel rope immediately once the suspended platform tilts or the steel rope slips out of the hoist; Electric control system is designed with leakage protection, over-heat protection, current overload protection and brake stop.

Photos for 800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform

800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform

800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform800kg Rated Load Construction Gondola Scaffolding 100M Working Height Suspended Working Platform
