6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
Specifications
Place of Origin :
China
Brand Name :
HYCM
Certification :
CE, ISO, GOST, CU-TR
Model Number :
QTP5515
Type :
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
Power supply :
380V/50Hz or according to client's requirments
Working range :
2.9-55m
Rope length :
400m
Free standing height :
40m
Tip Load :
1.5t
MOQ :
1 set of flattop tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
150 pcs of flattop tower crane per month
Delivery Time :
about 35 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for flattop tower crane
Electric switch box :
Schneider
Color :
as per your inquiry
Max. lifting load :
6t
Jib length :
55m
Freestanding height :
40m
Counter jib length :
14.6m
Hoisting speed :
0-86 0-43 m/min
Slewing speed :
0-0.6r/min
Description

6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts

Our Service for 6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
Warranty Assurance
For our tower crane, we provide 1 year (from BL date) warranty period and quick replace service.
Our Skilled Team
Our R&D team is made up of the most prestigious, experienced engineers and experts in this field.
Our technicians team are all experienced senior mechanicians.
We provide satisfactory service (pre-sale, while-sale, after-sale).
Our professional advice and instruction are always available and acceptable.
Safety devices for 6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts

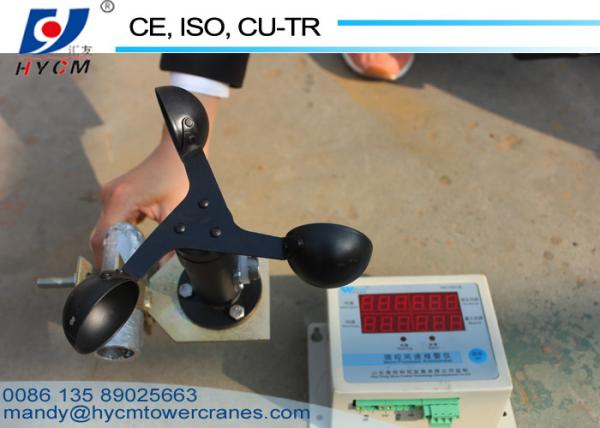

1) Wind lock device
2) Over load limit
3) Hoist height limit
4) Over speed limit
5) Slewing angle limit
6) Lifting moment limit
7) Emergency stop button
8) Obstruction light (tip of jib / tower head)
Specifications for 6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
Main Performance Main Specifications
Rated lifting moment (KN.m) 800
Max. lifting load(t) 6
Tip load(t) 1.5
Working range(m) 55
Lifting height(m) Freestanding height 40
Attaching height 160
Mast section Main limb angle steel (mm) 135X12/ Q345B
Section size(mm) Block type 1835X1835X2500
Lifting jib Upper chord(mm) Diameter 110mm round steel / Q345B
Lower chord(mm) ∠110X12 two angle steel / Q345B
Parallel face width (mm) 1380
Counter jib Length(m) 14.6
Hoisting mechanism Reducer 26TQL15
Motor YZPF180L1-4-26KW
Brake YWZ-300/45
Wire rope 6X37-13-1770-1-1right lay
Hoisting speed (m/min) 0-86 0-43
Slewing mechanism Reducer XX100,195
Motor YTW132-6-3.7KW
Slewing speed (r/min) 0-0.6
Trolleying mechanism Reducer WXG120
Motor YZPD132S-4-3.3KW
Trolleying speed( m/min) 0-40
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ100/160/125
Motor Y132M-4
Slewing bearing Type 1250.45

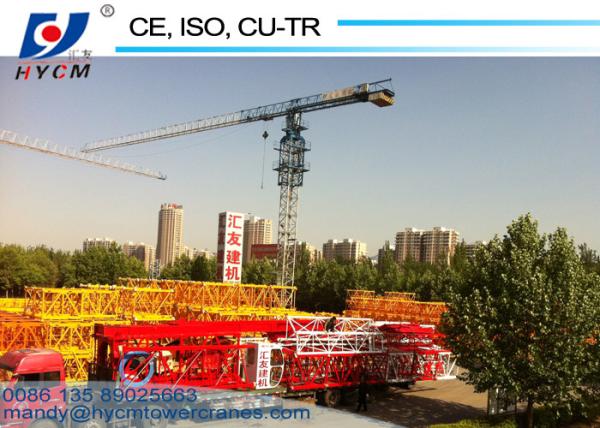

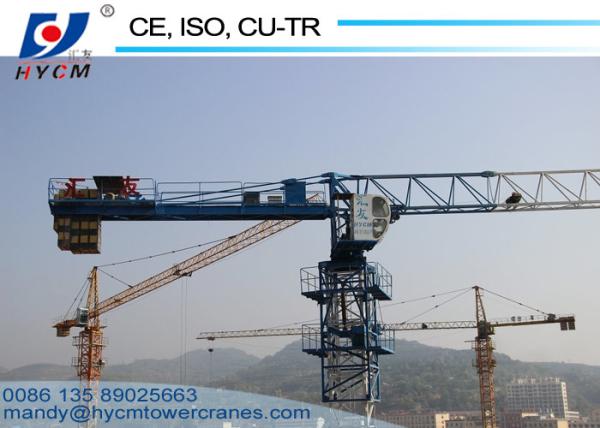

Photos for Flattop Tower Crane and Spare Parts
6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts6 ton Topless Tower Crane QTP5515 Cuilding Construction Crane with Spare Parts
