Specifications
Brand Name :
HYCM-TOWER CRANES
Model Number :
SC200 Building Construction Hoist
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of building construction hoist
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
200 pcs of building construction hoist per month
Delivery Time :
about 30 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for building construction hoist
Type :
Hot Sale China Made SC200 Building Hoist Power Lifting for Construction Site
Cage width (internal) :
1.3 m & 1.5 m
Cage length (internal) :
3 m
Cage height (internal) :
2.2 m
Power supply range :
380V, 50 or 60 Hz, 3 phase
Weight mast section with 1 rack :
128 kg
Payload capacity :
Up to 2,000 kg
Description

Hot Sale China Made SC200 Building Hoist Power Lifting for Construction Site

Specifications for Hot Sale China Made SC200 Building Hoist Power Lifting for Construction Site

Rated Load 2000kg
Rtated Passengers 20
Rated Lifting Speed 34.4m/min
Motor Power 3*11kw
Motor Breaking Torque 120N.M
Overrun Protection Device breaking Speed 51-56m/min
Overrun Protection Device Rated Breaking Load 30KN
Max.Lifting Height 150-200m
Cage Size(L*W*H) 3.0*1.3*2.3m

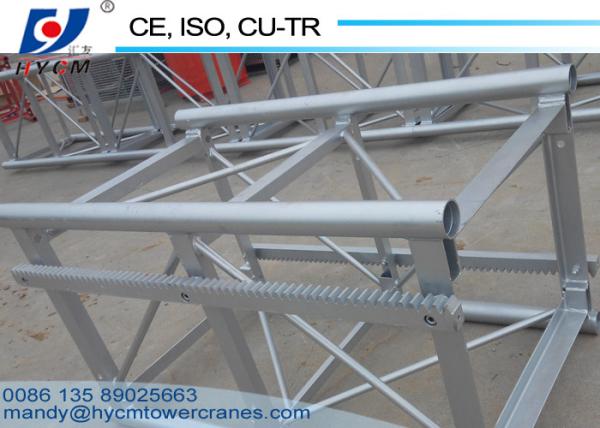

Mast Section Size(L*W*H) 0.65*0.65*1.508/0.80*1.80*1.508m
Mast Weight 158/172kg
Rated Erection Load 200kg

Services for Hot Sale China Made SC200 Building Hoist Power Lifting for Construction Site
1. Installation, debugging, operators trainning;
2. Maintanence;
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our tower crane;
D. If needed, we will send engineers to your site to solve your problems;
2. Providing some documents for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
3. Spare parts supply.
FAQ for Hot Sale China Made SC200 Building Hoist Power Lifting for Construction Site
1. Why choose us?
1. Schneider electric components;
2. Robot welding;
3. CE, ISO, GOST, CU-TR certificates;
4. 16 years' experience
5. Factory
2. Does your company supply other machineries?
We are manufacturer for construction machinery including tower crane, construction hoist and concrete batching plant with high quality. Customers can pick what they need from one cooperative partner to save time.
3.Trade terms?
Payment: T/T, L/C
Delivery:30 days, If there are stock machineries,the delivery time within 5 days.
MOQ:1set
4.what’s your company advantages?
Professional and Systematic manufacturer. Our team can offer more professional operation in International trade.
The process features for Hot Sale China Made SC200 Building Hoist Power Lifting for Construction Site
1) Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.
2) We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.
3) Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life

Photos for Hot Sale China Made SC200 Building Hoist Power Lifting for Construction Site

Hot Sale China Made SC200 Building Hoist Power Lifting for Construction SiteHot Sale China Made SC200 Building Hoist Power Lifting for Construction Site

Hot Sale China Made SC200 Building Hoist Power Lifting for Construction SiteHot Sale China Made SC200 Building Hoist Power Lifting for Construction SiteHot Sale China Made SC200 Building Hoist Power Lifting for Construction SiteHot Sale China Made SC200 Building Hoist Power Lifting for Construction SiteHot Sale China Made SC200 Building Hoist Power Lifting for Construction Site
