1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
Specifications
Brand Name :
HYCM TOWER CRANES
Model Number :
QTZ80(5513/6010)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of hammerhead tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L
Supply Ability :
about 250 pcs of hammerhead tower crane per month
Delivery Time :
about 25 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for hammerhead tower crane
Type :
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
Tip load :
1.3ton/1.0ton
Hoisting speed :
80/40 40/20m/min
Power supply :
380V/50Hz or based on your requirements
Slewing speed :
0.6 r/min
Mast section dimension :
1.6*1.6*3m
Condition :
100% brand new
Boom Length :
55m/60m
Rated lifting moment :
800KN.m
Description

1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane

Specifications for 1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
Main Performance Main Specifications
Rated lifting moment (KN.m) 800
Max. lifting load(t) 8
Tip load(t) 1.3/1.0
Working range(m) 55/60
Lifting height(m) Freestanding height 45
Attaching height 150
Mast section Main limb (mm) ∠180X14/ Q345B
Section size(mm) 1600X1600X3000
Lifting jib Upper chord(mm) Ø89X8 / 20#
Lower chord(mm) 100X8 two angle steel/ Q345B
Parallel face width (mm) 1360
Counter jib Main limb(mm) ［32b/ Q235B
Length(m) 12.636
Hoisting mechanism Reducer 30TQ20
Motor YZRD225-4/8-30/30KW
Brake YWZ-315/45
Wire rope 6X37-16-1770-1-1right lay
Hoisting speed (m/min) 80/40 40/20
Slewing mechanism Reducer XX100,195
Motor YZR132-6-3.7KW
Coupler YOX280A
Slewing speed (r/min) 0.6
Trolleying mechanism Reducer XX120
Motor YD132S-4/8-3.3/2.2KW
Trolleying speed( m/min) 40/20
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ80/160/125
Motor Y132M-4-5.5
Slewing bearing Type 1250.45
FAQ for1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
Q1: What is the Warranty for tower cranes?
A1: For the tower cranes, we can supply 1 year warranty. If there is quality problem of any parts (excluding easy worn spare parts) on our side during this period, we will supply a new one by free for replacement
Q2: What are the optional parts for your tower cranes?
A2: 1) Anemometer
2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD (Variable Frequency Drive) control
Q3: How many countries had your tower cranes exported to?
A3: Our tower cranes had exported to more than 30 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar, Thailand and Algeria etc.
The process features for 1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1) Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.
2) We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.
3) Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life

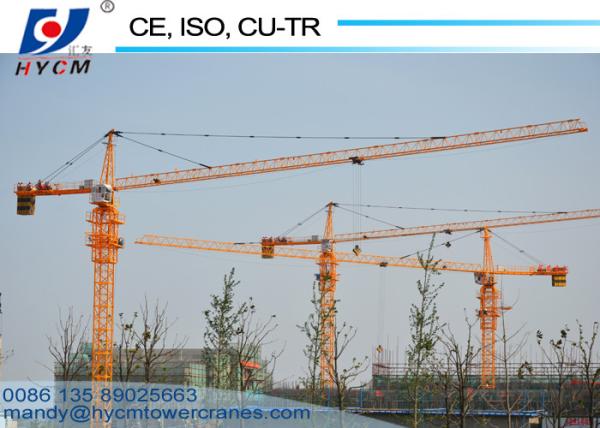

Photos for 1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane1.6*1.6*3m Split Mast 8ton Double Slewing QTZ80(5513/6010) Construction Tower Crane
