10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
Specifications
Brand Name :
HYCM TOWER CRANES
Model Number :
QTZ125(6018)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of moving tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L
Supply Ability :
about 180 pcs of moving tower cranee per month
Delivery Time :
about 45 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for moving tower crane
Type :
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
Power supply :
380V/50Hz or as per your inquiry
Mast section dimension :
1835*1835*2500mm
Jib Length :
60m
Moving Speed :
16 m/min
Hoisting speed :
80/40 40/20m/min
Foundation type :
Base type
Main limb :
∠125X12 two angle steel/ Q345B
Tip load :
1.8t
Description

10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load

Specifications for 10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
Main Performance Main Specifications
Rated lifting moment (KN.m) 1250
Max. lifting load(t) 10
Tip load(t) 1.8
Working range(m) 60
Lifting height(m) Freestanding height 50
Attaching height 180
Mast section Main limb (mm) ∠125X12 two angle steel/ Q345B
Section size(mm) 1835X1835X2500
Lifting jib Upper chord(mm) Ø89X10 / 20#
Lower chord(mm) ∠90X10 two angle steel/ Q345B
Parallel face width (mm) 1360
Counter jib Main limb(mm) ［32b/ Q235B
Length(m) 14
Hoisting mechanism Reducer JZQ650
Motor YZRD250-4/8-37/37KW
Brake YWZ-300/45
Wire rope 6X37-16-1770-1-1 right lay
Hoisting speed (m/min) 80/40 40/20
Slewing mechanism Reducer XX80,195
Motor YZR132-6-3.7KW
Coupler YOX250A
Slewing speed (r/min) 0.6
Trolleying mechanism Reducer WXG120
Motor YD132S-4/8-3.3/2.2KW
Trolleying speed( m/min) 40/20
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ125/180/160
Motor Y132M-4
Slewing bearing Type 1800.40

Moving Mechanism Reducer, brake and motor adopt "three in one"

Power

(KW)

 5.5x2
Moving Speed m/min 16
Buffer Type JHQ-C-16
Rail Type P60
Wheelbase x gauge mxm 4.5X4.5

FAQ for 10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load

Q1: How to place an order?
Pls email us for more products infomation, then we will send you our catalogue and photos.
Q2: Are you a trading company or manufacturer?
We are manufacturer, with two trading companies.
Q3: What About your quality?
Our quality is excellent, and you're welcome to visit our factory at anytimes.
Q4: What payment terms do you accept?
We accept T/T, L/C at sight, Visa and Master card.
Why Choose US?
1. Experience. 16 years of experience in manufacturing construction machinery, assured good quality.
2. Services. Professional service team can give powerful support for our products.
3. Innovation. Technical and management innovation guarantee our quality to be in top position in our industry.
4. Marketing. Our products have been exported to more than 30 countries, enjoying a good reputation.

Technical Features for 10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load

1. Advanced Technology : Performance parameterd and technical indicators have reached the leading domestic and international advance level, the maximum working rang of 60meters, an increase of tower crane’s working space.
2. Attractive Design: Good Shape the form of an international pop machine, also can customized according to clients’ requirments.
3. High Quality Production : High operating speed , speed performance, smooth and efficient.Rigid doubl-rod boom suspension, rigid, light weight, small cross section.
4. Stable Structure: This kind of crane adopts standard section hydraulic lifting and connecting ensure safe and reliable.
5. Efficient Electrical Control System: SCHNEIDER electrical components ensure reliable and safe mechanism of A CLASS tower crane.
6. Reliable and Safety Cab: Indepedent of side cab, good vision, creativity to the operator a good enviroment. Cast steel brake wheel, hoisting mechanism is tested in multi-ways.
Our Service for 10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
a.Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
b.The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
c.Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
d.Warranty Assurance
For our tower crane, we provide 1 year (from BL date) warranty period and quick replace service.

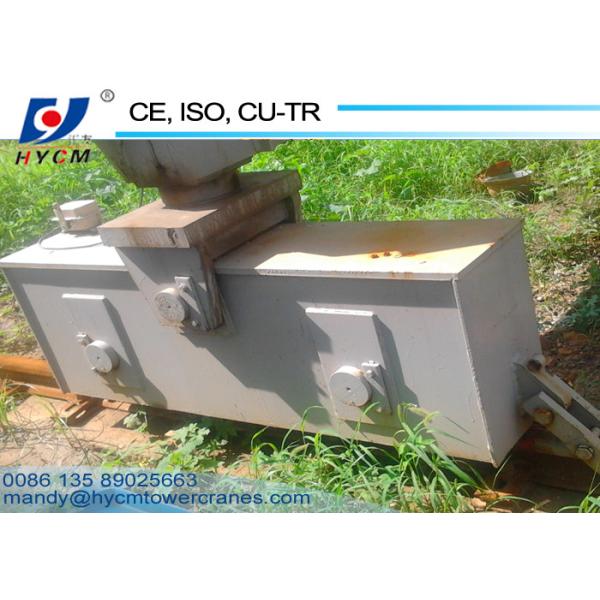

Photos for 10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load10tons Travelling Tower Crane with Base With Ballast Type Foundation and 1.8ton Tip Load
