8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
Specifications
Brand Name :
HYCM-TOWER CRANES
Model Number :
QTD80(4015)
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set of luffing jib tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment
Supply Ability :
150 pcs of luffing tower crane per month
Delivery Time :
about 40 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for luffing jib tower crane
Type :
Attractive Price Electric Control System 6t Luffing Tower Crane for Sale
Main materials :
∠160X160X16MM/ Q345B
Tip Load :
1.5t
Hoisting speed :
80/40 40/20m/min
Power supply :
380V/50Hz or according to client's requirments
Electric switch box :
Schneider
Arm length :
40m
Color :
based on your inquiry
Freestanding height :
30m
Description

8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price

Our Service for 8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
Warranty Assurance
For our tower crane, we provide 1 year (from BL date) warranty period and quick replace service.
FAQ for 8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
1. Why choose us?
1. Schneider electric components;
2. Robot welding;
3. CE, ISO, GOST, CU-TR certificates;
4. 16 years' experience
5. Factory
2. Does your company supply other machineries?
We are manufacturer for construction machinery including tower crane, construction hoist and concrete batching plant with high quality. Customers can pick what they need from one cooperative partner to save time.
3.Trade terms?
Payment: T/T, L/C
Delivery:30 days, If there are stock machineries,the delivery time within 5 days.
MOQ:1set
4.what’s your company advantages?
Professional and Systematic manufacturer. Our team can offer more professional operation in International trade.
Services for 8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
1. Installation, debugging, operators trainning;
2. Maintanence;
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our tower crane;
D. If needed, we will send engineers to your site to solve your problems;
2. Providing some documents for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
3. Spare parts supply.
4. More products for you to choose
Specifications for 8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
Main Performance Main Specifications
Rated lifting moment (KN.m) 800
Max. lifting load(t) 6
Tip load(t) 1.5
Working range(m) 5~40
Lifting height(m) Freestanding height 30
Attaching height 150
Mast section Main limb (mm) ∠160X160X16/ Q345B
Section size(mm) 1200X3000
Lifting jib Upper chord(mm) 70X6 Square tube/ Q345B
Lower chord(mm) 70X6 Square tube/ Q345B
Counter jib Length(m) 7500
Hoisting mechanism Reducer 24TQ15
Motor YZTD200M1-2/4/16-24/24/5.4
Brake YWZ-300/45
Wire rope 6X37-13-1770-Ⅰright lay
Hoisting speed (m/min) 80/40 40/20
Slewing mechanism Reducer XX100
Motor YTW132-6-3.7
Slewing speed (r/min) 0-0.7
Trolleying mechanism Reducer 25IB15
Motor YZP2001-4-25
Trolleying speed( m/min) 0-10
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ80/160/125
Motor 5.5KW
Slewing bearing Type 1250.40

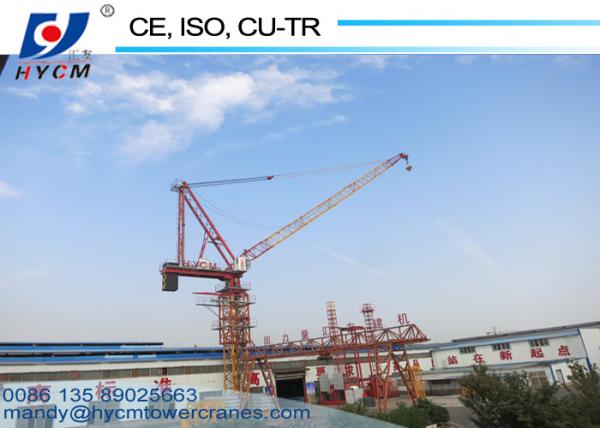

Photos for 8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price8ton 40m Jib Mini Luffing Jib Tower Crane QTD80(4015) with Low Price
