QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
Specifications
Brand Name :
HYCM-TOWER CRANES
Model Number :
QTD4015
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set of luffing jib tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment
Supply Ability :
150 pcs of luffing tower crane per month
Delivery Time :
about 40 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for luffing jib tower crane
Type :
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
Main materials :
∠160X160X16MM/ Q345B
Tip Load :
1.5t
Power supply :
380V/50Hz or according to client's requirments
Electric switch box :
Schneider
Boom length :
40m
Color :
white and red, or based on your inquiry
Freestanding height :
30m
Max. Load :
6t
Description

QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers

FAQ for QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
1. Why choose us?
1. Schneider electric components;
2. Robot welding;
3. CE, ISO, GOST, CU-TR certificates;
4. 16 years' experience
5. Factory
2. Does your company supply other machineries?
We are manufacturer for construction machinery including tower crane, construction hoist and concrete batching plant with high quality. Customers can pick what they need from one cooperative partner to save time.
3.Trade terms?
Payment: T/T, L/C
Delivery:30 days, If there are stock machineries,the delivery time within 5 days.
MOQ:1set
4.what’s your company advantages?
Professional and Systematic manufacturer. Our team can offer more professional operation in International trade.
Services for QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
1. Installation, debugging, operators trainning;
2. Maintanence;
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our tower crane;
D. If needed, we will send engineers to your site to solve your problems;
2. Providing some documents for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
3. Spare parts supply.
4. More products for you to choose
Specifications for QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
Main Performance Main Specifications
Rated lifting moment (KN.m) 800
Max. lifting load(t) 6
Tip load(t) 1.5
Working range(m) 5~40
Lifting height(m) Freestanding height 30
Attaching height 150
Mast section Main limb (mm) ∠160X160X16/ Q345B
Section size(mm) 1200X3000
Lifting jib Upper chord(mm) 70X6 Square tube/ Q345B
Lower chord(mm) 70X6 Square tube/ Q345B
Counter jib Length(m) 7500
Hoisting mechanism Reducer 24TQ15
Motor YZTD200M1-2/4/16-24/24/5.4
Brake YWZ-300/45
Wire rope 6X37-13-1770-Ⅰright lay
Hoisting speed (m/min) 80/40 40/20
Slewing mechanism Reducer XX100
Motor YTW132-6-3.7
Slewing speed (r/min) 0-0.7
Trolleying mechanism Reducer 25IB15
Motor YZP2001-4-25
Trolleying speed( m/min) 0-10
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ80/160/125
Motor 5.5KW
Slewing bearing Type 1250.40

Technical Features for QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers

1. Advanced Technology : Performance parameterd and technical indicators have reached the leading domestic and international advance level, the maximum working rang of 60meters, an increase of tower crane’s working space.
2. Attractive Design: Good Shape the form of an international pop machine, also can customized according to clients’ requirments.
3. High Quality Production : High operating speed , speed performance, smooth and efficient.Rigid doubl-rod boom suspension, rigid, light weight, small cross section.
4. Stable Structure: This kind of crane adopts standard section hydraulic lifting and connecting ensure safe and reliable.
5. Efficient Electrical Control System: SCHNEIDER electrical components ensure reliable and safe mechanism of A CLASS tower crane.
6. Reliable and Safety Cab: Indepedent of side cab, good vision, creativity to the operator a good enviroment. Cast steel brake wheel, hoisting mechanism is tested in multi-ways.

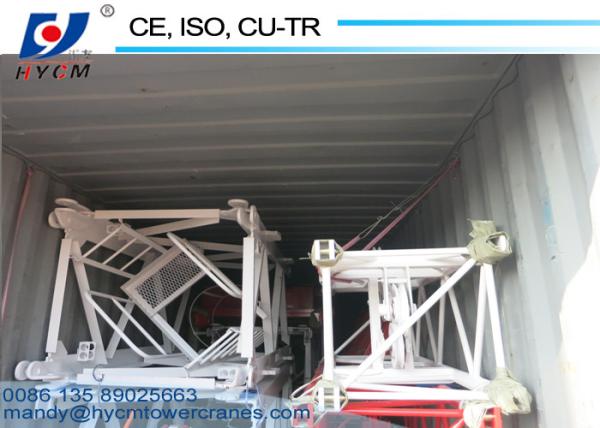

Photos for QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save ContainersQTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
QTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save ContainersQTD4015/40m Boom Luffing Jib Tower Crane 6T Load Split Mast Section Save Containers
