650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
Specifications
Brand Name :
HYCM-TOWER CRANES
Model Number :
SC200/200 construction material lifting hoist
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set of construction material lifting hoist
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
about 150 pcs of construction material lifting hoist per month
Delivery Time :
about 30 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for construction material lifting hoist
Type :
650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
Max. lifting height :
150 m (Increased lifting height on request.)
Motor control :
Frequency controlled
Speed :
0-60 m/min
Motor power :
2 * 3 *11 kw
Safety device :
Mechanical interlocking door system to guarantee the highest safety standards.
Mast section dimension :
(1) 650*650*1508mm (2) 800*800*1508mm
Payload capacity :
2 * 2000 kg
Color :
as per your inquiry
Description

650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist

Specifications for 650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist

Rated Load 2*2000kg
Rtated Passengers 2*20
Rated Lifting Speed 34.4m/min
Motor Power 2*3*11kw
Motor Breaking Torque 120N.M
Overrun Protection Device breaking Speed 51-56m/min
Overrun Protection Device Rated Breaking Load 30KN
Max.Lifting Height 150-200m
Cage Size(L*W*H) 3.0*1.3*2.3m
Mast Section Size(L*W*H) 0.65*0.65*1.508/0.80*1.80*1.508m
Mast Weight 158/172kg
Rated Erection Load 200kg

Different specifications for construction hoist mast section
(1) 650*650*1508mm
(2) 800*800*1508mm
Different specifications for tower crane mast section
(1) 1.2*1.2*3m
(2) 1.4*1.4*3m
(3) 1.6*1.6*2.5m
(4) 1.6*1.6*3m
(5) 1.83*1.83*2.5m
(6) 2.0*2.0*3.0m
Electro-static coating Specifications: 650*650*1508mm or 800*800*1508mm
Being Galvanized Specifications: 650*650*1508mm or 800*800*1508mm
Main materials of Hoist Mast Section
a. High quality steel plate Q235B bended by special machine: Thickness 5mm
b. Welded steel tube Q345B ( Seamless steel tube 20# is also available): Ø76×4.5mm or Ø89×4.5mm (Thickness of 6mm or 8mm is also available)
Electro-static coating Specifications: 650*650*1508mm or 800*800*1508mm
Being Galvanized Specifications: 650*650*1508mm or 800*800*1508mm

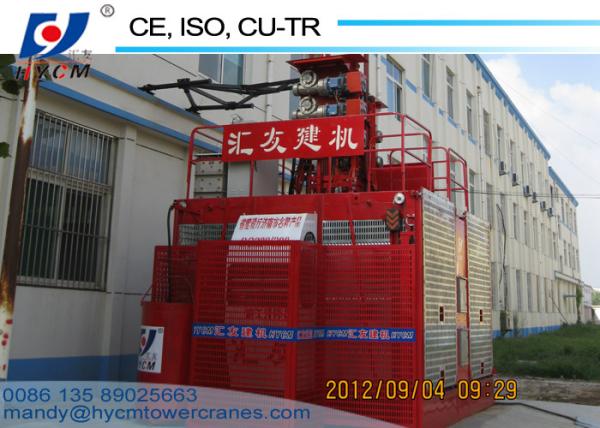

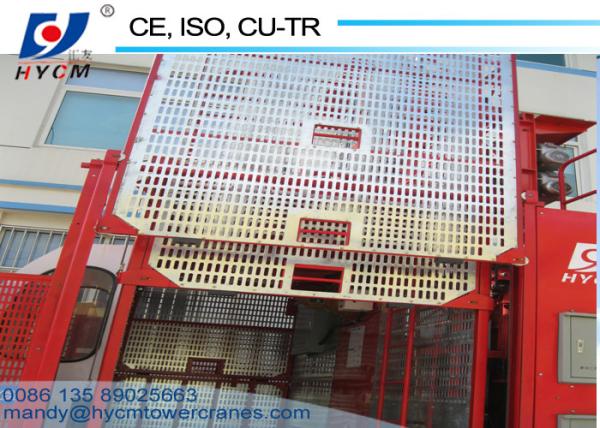

Photos for 650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
Pre-sales Service for 650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
  • More than 90% of the timely response rate;
  • Timely response to customer questions;
  • Provide professional product solutions;
  • Inquiry and consulting support;
  • Technical support;
  • View our factory.
After-sales Service for 650*650*1508mm Mast 2*2000 kg Double Cages SC200/200 Construction Material Lifting Hoist
  • Provice edited videos of the whole process of operation and maintenance;
  • Provide paper or electronic operation and maintenance instructions;
  • Localized service outlets guarantee;
  • housekeepers respond quickly;
  • Factory-specific equipment.
