Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Specifications
Brand Name :
HYCM TOWER CRANES
Model Number :
QTZ80(PT5515)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of flattop tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
150 pcs of flattop tower crane each month
Delivery Time :
about 35 days after receiving advance payment
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for flattop tower crane
Type :
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Power supply :
380V/50Hz or according to your need
Mast section dimensions :
1.6*1.6*3.0m (split type)
Max. load :
6/8t
Color :
blue and white or others you need
Max. Lifting Height :
160m
Tip load :
1.5ton
Condition :
brand new
Optional parts :
remote control, AC, black box, anemometer
Description

Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects

Specifications for Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Main Performance Main Specifications
Rated lifting moment (KN.m) 800
Max. lifting load(t) 6
Tip load(t) 1.5
Working range(m) 55
Lifting height(m) Freestanding height 40
Attaching height 160
Mast section Main limb angle steel (mm) 180X18/ Q345B
Section size(mm) 1600X1600X3000
Lifting jib Upper chord(mm) diameter 110 Round steel / Q345B
Lower chord(mm) ∠110X12 two angle steel / Q345B
Parallel face width (mm) 1380
Counter jib Length(m) 14.6
Hoisting mechanism Reducer 24TQ15
Motor YZTD200L-2/4/16p-24/24/5.4KW
Brake YZW3H-200/45
Wire rope 6×37-13-1770-1-1right lay
Hoisting speed (m/min) 80/40/8.5 40/20/4.25
Slewing mechanism Reducer XX100,195
Motor YZR132-6-3.7KW
Slewing speed (r/min) 0.6
Trolleying mechanism Reducer WXG120
Motor YD132S-4/8-3.3/2.2KW
Trolleying speed( m/min) 40/20
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ100/160/125
Motor Y132M-4
Slewing bearing Type 1250.45
Main Performance Main Specifications
Rated lifting moment (KN.m) 800
Max. lifting load(t) 8
Tip load(t) 1.5
Working range(m) 55
Lifting height(m) Freestanding height 40
Attaching height 160
Mast section Main limb angle steel (mm) 180X18/ Q345B
Section size(mm) 1600X1600X3000
Lifting jib Upper chord(mm) diameter 110 Round steel / Q345B
Lower chord(mm) ∠110X12 two angle steel / Q345B
Parallel face width (mm) 1380
Counter jib Length(m) 14.6
Hoisting mechanism Reducer 30TLQ20
Motor YZTPF225M-4-J13021-30KW
Brake YWZ-300/45
Wire rope 6X37-16-1770-1-1 right lay
Hoisting speed (m/min) 0-100 0-50
Slewing mechanism Reducer XX100,195
Motor YTW132-6-3.7KW
Slewing speed (r/min) 0-0.6
Trolleying mechanism Reducer WXG120
Motor YZPD132S-4-3.3KW
Trolleying speed( m/min) 0-40
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ100/160/125
Motor Y132M-4
Slewing bearing Type 1250.45
Main features for Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
1.Height of the tower crane is confirmed according to height of building, lifting ability of the tower crane is independent of height.
2. The tower crane with features as high working speed, stead work condition and high efficiency.
3. Hoisting jib has three jib ranges. This meets project needs more widely.
4. Safety devices are complete. The working is reliable.
5. Lifting jib adopts rigid double tension bars with features as light structure.
6. The eyeshot of cab is well, and the cab is installed independently, which creats a preferable working condition for handlers.
7. Location of the tower crane is reasonable, and the externality of the crane is beautiful.
8. The operation is simple and the maintenance is convenient
Safety Feather for Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
1.Overload protection: If the material is over the capacity, the tower crane will give a sharp warning for protecting itself.
2.Emergency brake: If the operation staff encounters some emergency situation, we could start the emergency brake system to protect the related treasure.
3.Control Method: Remote control is to avoid any injury to the operation staffs.
4.Main lifting motor: if needed, there will be with thermal protection and currency protection.
Spare Parts for Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Need parts for your crane? We can offer you high performance parts with fast turn-around times and cost effective solutions. Learn more about our parts options: www.hycmtowercranes.com.

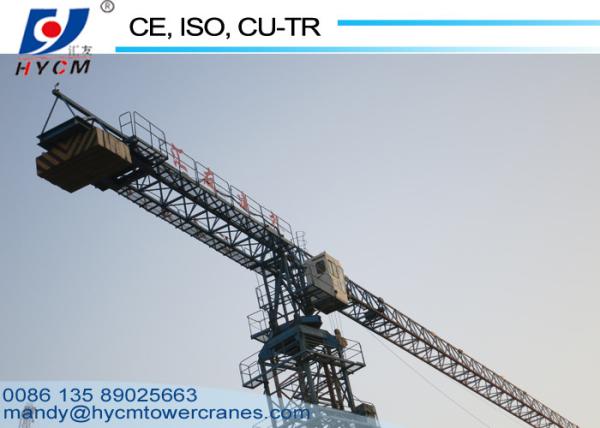

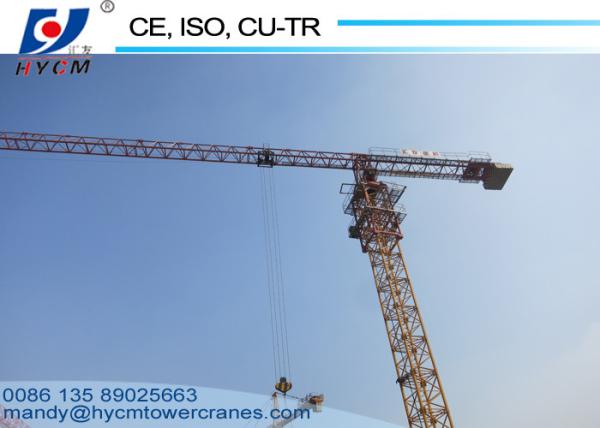

Photos for Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction ProjectsHydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction ProjectsHydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction ProjectsHydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction ProjectsHydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Hydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction ProjectsHydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction ProjectsHydraulic 55m Jib QTZ80(PT5515) 6/8ton Topless Tower Crane for Building Construction Projects
Contact us
If you have any inquiry or question about our products, please feel free to contact us!
1.Mobile: 86-135-8902-5663
2.Whatsapp: 86-135-8902-5663
3.Wechat: 86-135-8902-5663
4.Skype: mandysun1987
5. E-mail: mandysun1987@hotmail.com/mandy@hycmtowercranes.com
6.Web: www.hycmtowercranes.com
