Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Specifications
Brand Name :
HYCM
Model Number :
QTP250(7030)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of 16ton flat top tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
150 pcs of 16ton flat top tower crane each month
Delivery Time :
about 45 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for 16ton flat top tower crane
Type :
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Mast section dimensions :
2.0*2.0*3.0m
Max. load :
16t
Max. Lifting Height :
206m
Main Material :
Single limb 200X20mm / Q345B split type
Freestanding height :
50m
Trolleying speed :
0-78m/min
Hoisting speed :
0-100 0-50m/min
Rated lifting moment :
2500KN.m
Color :
according to your inquiry
Description

Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran

Company information for HYCM-TOWER CRANES
HYCM-TOWER CRANES is a professional manufacturer and exporter of tower crane and construction hoist. Founded in 2002, our products has been sent to more than 30 countries, including Russia, Korea, Dubai, Singapore, Indonesia, Vietnam and Thailand etc.

Specifications for Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Main Performance Main Specifications
Rated lifting moment (KN.m) 2500
Max. lifting load(t) 16
Tip load(t) 2.5
Working range(m) 3~70
Lifting height(m) Freestanding height 50
Attaching height 206
Mast section Main limb angle steel (mm) ∠200X200X26/ Q345B
Section size(mm) 2000X2000X3000
Lifting jib Upper chord(mm) φ140 round steel/ Q345B
Lower chord(mm) ∠180X18 two angle steel / Q345B
Parallel face width (mm) 1450X2200
Hoisting mechanism Reducer 55TLQ40
Motor YZTPF250M-4-55KW
Capacity of wire rope 560m
Wire rope 35W×7-20-1960 I right lay
Hoisting speed (m/min) 0-100 0-50
Slewing mechanism Reducer HP90.160.195
Motor YPHW132L2-4-9KW
Slewing speed (r/min) 0-0.57
Trolleying mechanism Reducer 7.5TXB7
Motor YZZ132S1-4-7.5KW
Trolleying speed( m/min) 0-78
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ180/125
Motor Y132M-11KW
Slewing bearing Type 1830.50
Safety Feathers for Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
1.Overload protection: If the material is over the capacity, the tower crane will give a sharp warning for protecting itself.
2.Emergency brake: If the operation staff encounters some emergency situation, we could start the emergency brake system to protect the related treasure.
3.Control Method: Remote control is to avoid any injury to the operation staffs.
4.Main lifting motor: if needed, there will be with thermal protection and currency protection.
Our Skilled Team for Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Our R&D team is made up of the most prestigious, experienced engineers and experts in this field.
Our technicians team are all experienced senior mechanicians.
We provide satisfactory service (pre-sale, while-sale, after-sale).
Our professional advice and instruction are always available and acceptable.

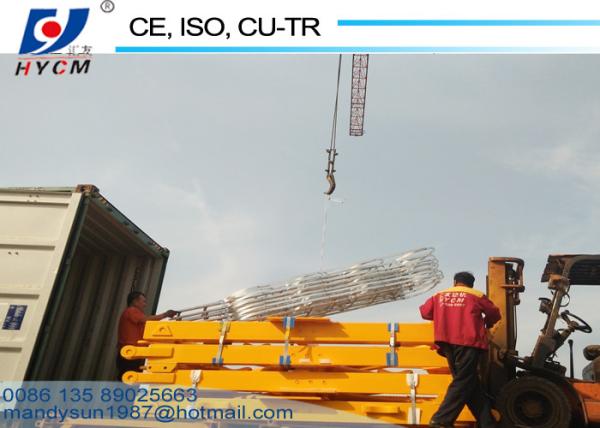

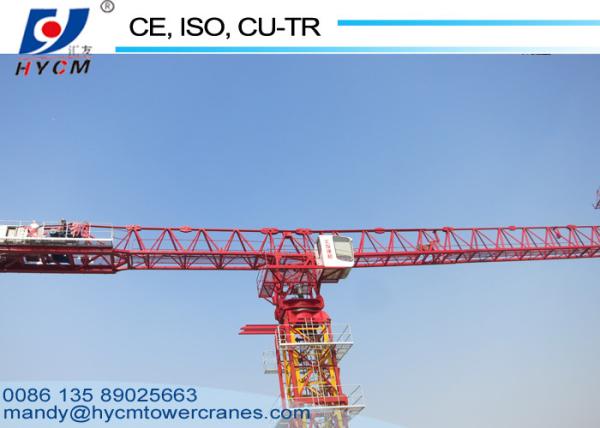

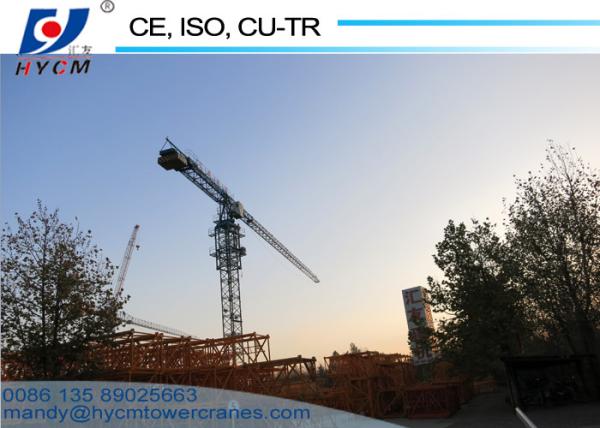

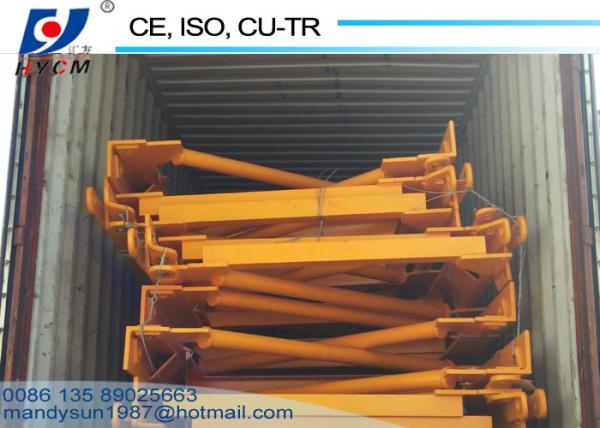

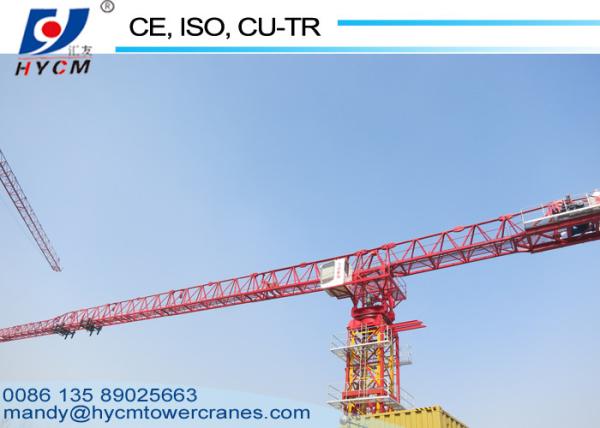

Photos for Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and IranSupply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
Supply QTZ250(PT7030) 16tons Flat Top Topless Tower Crane without Cathead in Dubai and Iran
