Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Specifications
Brand Name :
HYCM-TOWER CRANES
Model Number :
QTP250(PT7030)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of 16ton flat top tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
150 pcs of 16ton flat top tower crane each month
Delivery Time :
about 50 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for 16ton flat top tower crane
Type :
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Mast section dimensions :
2.0*2.0*3.0m
Max. load :
16tons
Main Material :
Single limb 200X20mm / Q345B split type
Freestanding height :
50m
Trolleying speed :
0-78m/min
Hoisting speed :
0-100 0-50m/min
Color :
according to your inquiry
Warranty :
12 Months frm BL date
Description

Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote

Company information for HYCM-TOWER CRANES
HYCM-TOWER CRANES is a professional manufacturer and exporter of tower crane and construction hoist. Founded in 2002, our products has been sent to more than 30 countries, including Russia, Korea, Dubai, Singapore, Indonesia, Vietnam and Thailand etc.

Specifications for Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Main Performance Main Specifications
Rated lifting moment (KN.m) 2500
Max. lifting load(t) 16
Tip load(t) 2.5
Working range(m) 3~70
Lifting height(m) Freestanding height 50
Attaching height 206
Mast section Main limb angle steel (mm) ∠200X200X26/ Q345B
Section size(mm) 2000X2000X3000
Lifting jib Upper chord(mm) φ140 round steel/ Q345B
Lower chord(mm) ∠180X18 two angle steel / Q345B
Parallel face width (mm) 1450X2200
Hoisting mechanism Reducer 55TLQ40
Motor YZTPF250M-4-55KW
Capacity of wire rope 560m
Wire rope 35W×7-20-1960 I right lay
Hoisting speed (m/min) 0-100 0-50
Slewing mechanism Reducer HP90.160.195
Motor YPHW132L2-4-9KW
Slewing speed (r/min) 0-0.57
Trolleying mechanism Reducer 7.5TXB7
Motor YZZ132S1-4-7.5KW
Trolleying speed( m/min) 0-78
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ180/125
Motor Y132M-11KW
Slewing bearing Type 1830.50
Safety Feathers for Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
1.Overload protection: If the material is over the capacity, the tower crane will give a sharp warning for protecting itself.
2.Emergency brake: If the operation staff encounters some emergency situation, we could start the emergency brake system to protect the related treasure.
3.Control Method: Remote control is to avoid any injury to the operation staffs.
4.Main lifting motor: if needed, there will be with thermal protection and currency protection.
Main features for Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
1.Height of the tower crane is confirmed according to height of building, lifting ability of the tower crane is independent of height.
2. The tower crane with features as high working speed, stead work condition and high efficiency.
3. Hoisting jib has three jib ranges. This meets project needs more widely.
4. Safety devices are complete. The working is reliable.
5. Lifting jib adopts rigid double tension bars with features as light structure.
6. The eyeshot of cab is well, and the cab is installed independently, which creats a preferable working condition for handlers.
7. Location of the tower crane is reasonable, and the externality of the crane is beautiful.
8. The operation is simple and the maintenance is convenient.

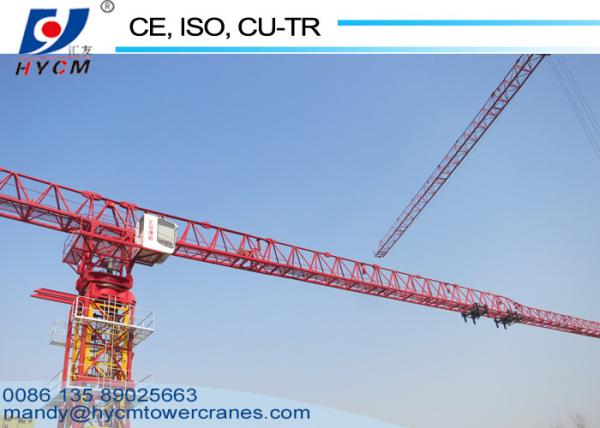

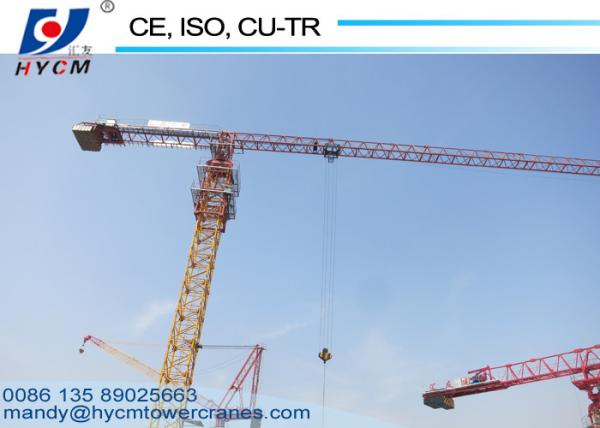

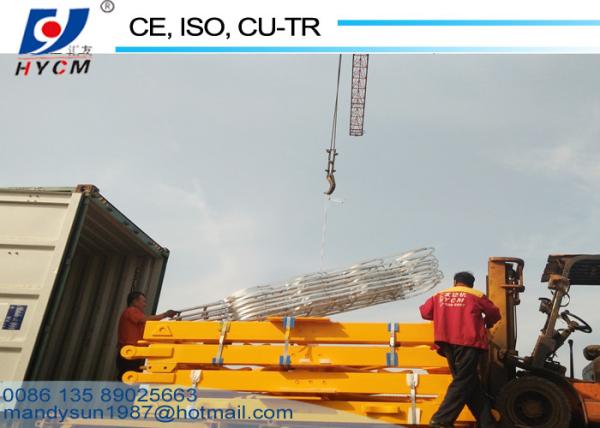

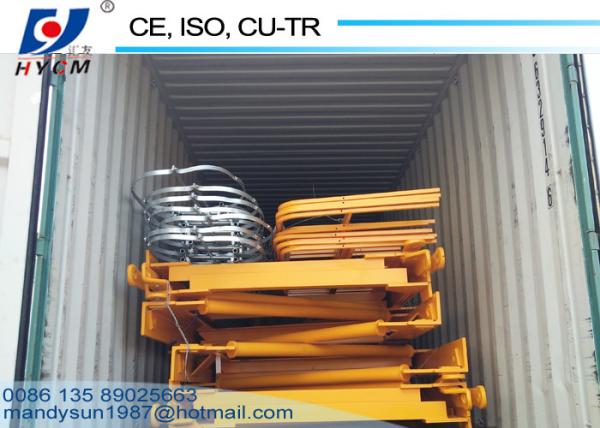

Photos for Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and RemoteBuilding Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and RemoteBuilding Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and RemoteBuilding Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
Building Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and RemoteBuilding Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and RemoteBuilding Construction 16 ton Grua PT7030 Topless Tower Crane With Inverter and Remote
