Specifications
Brand Name :
HYCM
Model Number :
QTZ230(PT6425)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of flattop tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
200 pcs of flattop tower crane each month
Delivery Time :
about 30 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for flattop tower crane
Type :
12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China
Mast section dimensions :
2.0*2.0*3.0m
Max. load :
12t
Max. Lifting Height :
200m
Main limb angle steel :
Single limb 200X20mm / Q345B split type
Trolleying speed :
0-60m/min
Hoisting speed :
0-100 0-50m/min
Color :
Orange or based on your inquiry
Warranty :
12 Months from BL date
Description

12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China

Specifications for 12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China
Main Performance Main Specifications
Rated lifting moment (KN.m) 2300
Max. lifting load(t) 12
Tip load(t) 2.5
Working range(m) 64
Lifting height(m) Freestanding height 50
Attaching height 200
Mast section Main limb angle steel (mm) Single limb 200X20 / Q345B split type
Section size(mm) 2000X2000X3000
Lifting jib Upper chord(mm) ∠160X12 two angle steel / Q345B
Lower chord(mm) ∠125X12 two angle steel / Q345B
Parallel face width (mm) 1450
Counter jib Length(m) ∠125X12 two angle steel / Q345B
15.575
Hoisting mechanism Reducer 45TLQ25
Motor YZTPF225M-4-J13021-45KW
Brake YWZ-300/45
Wire rope 6X37-16-1770-1-1 right lay
Hoisting speed (m/min) 0-100 0-50
Slewing mechanism Reducer XX4-120AI
Motor YZR132-6-5.5KW
Slewing speed (r/min) 0-0.6
Trolleying mechanism Reducer GKAP87-Y5.5-4P-44.2-M1-IEC
Motor YPB132S-4-5.5KW
Trolleying speed( m/min) 0-60
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQY125/180/125
Motor Y132M-4
Slewing bearing Type 1600.45
FAQ for 12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China

Q1: What is the Warranty for tower cranes?
A1: For the tower cranes, we can supply 1 year warranty. If there is quality problem of any parts (excluding easy worn spare parts) on our side during this period, we will supply a new one by free for replacement.
Q2: What is the mean of QTP for tower crane model? And please illustrate.
A2: QTP is classified according to China National Standard.
“Q” is the acronym of Crane in Chinese language (Qing Zhongji);
“T” is the acronym of Tower head type in Chinese language (Ta Shi);
And “P” is the acronym of topless in Chinese language (Ping Tou).
For example: QTP40 (4810) means topless tower crane, the rated lifting moment is 400 KN.m (40 is 10-1 of the rated lifting moment). The working jib length is 48 meter and tip load is 1.0t when jib length is 48m.
Q3: What are the optional parts for your tower cranes?
A3: 1) Anemometer
2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD (Variable Frenquency Drive) control
Q4: How many types of foundation for your tower crane?
A4: The most popular types of foundation are Cross-beam type, Well-shaped type, Base with ballast type and Outrigger type.
By the way, our commonly used one is Cross-beam type. If you need any other type, please let us know when you make the order. Thanks!
Q5: How many countries had your tower cranes exported to?
A5: Our tower cranes had exported to more than 30 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar, Thailand and Algeria etc.
Features for 12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China
Tower crane equipped with fixed tower body and piece-type tower body forms,there are lots of specification and modles for users' selections, beautiful in appearance, compact in structure, complete in safety facilities, stable and reliable in quality, performance leading in the country, products comanding a ready market in the country and exporting in batches. They can widely apply to high-rise hotel,
resident houses, industry buildings, large-span factory and so on.

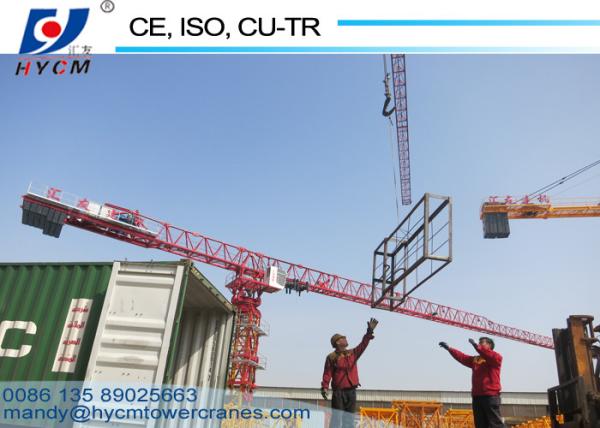

Photos for 12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China
12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China
12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China
12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China
12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China12t QTZ230(PT6425) 50m Freestanding Flattop Topless Tower Crane Manufacturer in China
