Specifications
Brand Name :
HYCM-TOWER CRANES
Model Number :
SC200 man material hoist
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of man material hoist
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
about 200 pcs of man material hoist per month
Delivery Time :
about 25 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for man material hoist
Type :
SC200 Single Cage 650*650*1508mm Mast Man Material hoist for building construction
Cage width (internal) :
1.3m or 1.5m
Cage length (internal) :
3 m
Cage height (internal) :
2.2 m
Power supply range :
380V, 50 or 60 Hz, 3 phase/according to your inquiry
Weight mast section with 1 rack :
128 kg
Rated loading capacity(kg) :
2,000 kg
Overrun Protection Device Rated Breaking Load :
30KN
Rated Passengers :
20
condition :
New
Dimension(l*w*h) :
650*650*1508mm
Description

SC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building Construction

All kinds of spare parts for SC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building Construction

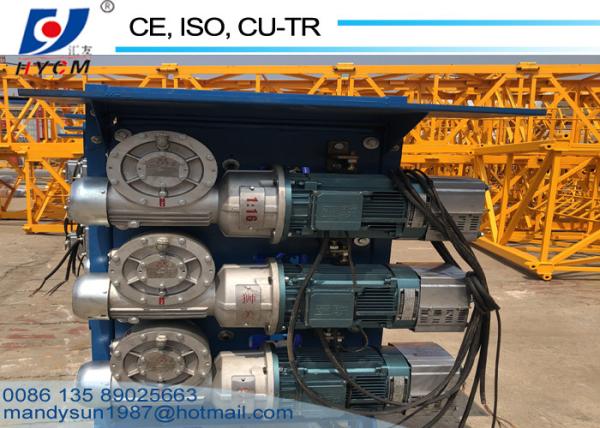

Driving device With 2-motors / 3-motors
Motor 11kw, 14.5kw,18kw
Motor spare parts Braking system; brake sheet, motor adjustor, electromagnet, motor fan

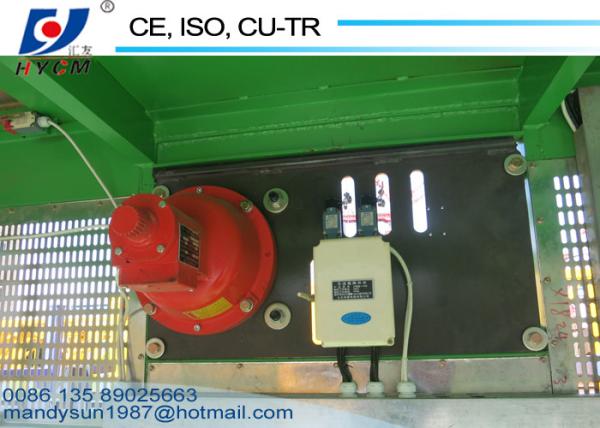

Safety device 30KN, 40KN, 50KN, 60KN
Gearbox 20:1,16:1,14:1,12:1;10:1
Coupling with rubber
Master rollers For 76 tube and 89 tube
Gear rack M8 40x60x1508mm
Gear pinion M8, 15teet
Services for SC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building Construction
1. Installation, debugging, operators trainning;
2. Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our tower crane;
D. If needed, we will send engineers to your site to solve your problems.
3. Providing some documents for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4. Spare parts supply.
5. More products for you to choose

Specifications for SC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building Construction

Rated Load 2000kg
Rated Passengers 20
Rated Lifting Speed 34.4m/min
Motor Power 3*11kw
Motor Breaking Torque 120N.M
Overrun Protection Device breaking Speed 51-56m/min
Overrun Protection Device Rated Breaking Load 30KN
Max.Lifting Height 150-200m
Cage Size(L*W*H) 3.0*1.3*2.3m
Mast Section Size(L*W*H) 0.65*0.65*1.508/0.80*1.80*1.508m
Mast Weight 158/172kg
Rated Erection Load 200kg

FAQ for SC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building Construction
Q1: What is the Warranty for construction hoist?
A1: For construction hoist, we can supply 1 year’s warranty. If any quality problem (not artificial reason) on our side occurred during this period, we will supply a free new one as replacement.
Q2: What is the meaning of SC for construction hoist model? And please illustrate.
A2: SC is classified according to China National Standard.
“S” is the acronym of construction hoist in Chinese language (Shi Gong Sheng Jiang Ji);
“C” is the acronym of rack and pinion in Chinese language (Chi Lun Chi Tiao).
For example: SC200/200 means rack and pinion type construction hoist. Double cages (“x/x” stands for the cage number, if one cage just show SC200) and 2000kg per cage load (x means the 10-1 of rated lifting load)
Q3: What are the optional parts for your construction hoist?
A3:1) Mast Section with Hot Galvanized;
2) VFD (variable Frequency Drive) for construction hoist, the rated speed could reach 36m/min by using it.

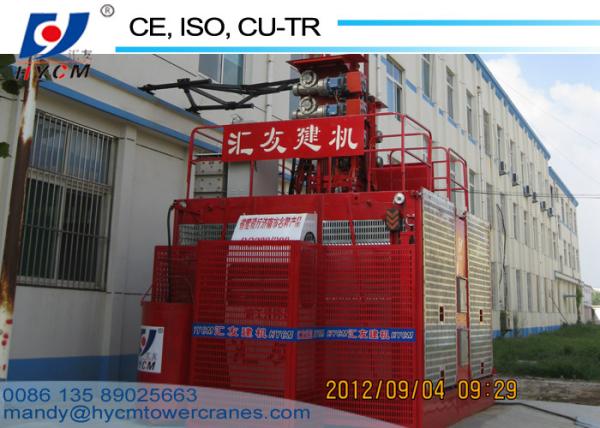

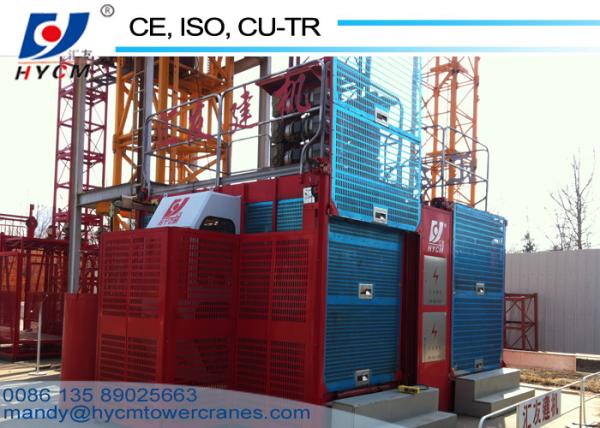

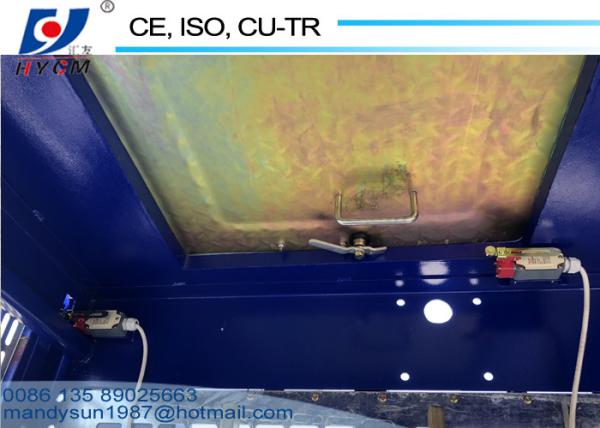

Photos for SC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building Construction

SC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building ConstructionSC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building Construction

SC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building ConstructionSC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building ConstructionSC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building ConstructionSC200 Single Cage 650*650*1508mm Mast Man Material Hoist for Building Construction
