Specifications
Brand Name :
HYCM-Tower CraneS
Model Number :
QTZ63(PT5210)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of top slewing crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
200 pcs of top slewing crane per month
Delivery Time :
about 35-45 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for top slewing crane
Type :
52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height
Working range :
3 to 52m
Slewing speed :
0.6r/min
Mast section dimension :
1600*1600*2500mm
Trolley peed :
40/20 m/min
Hoisting speed(m/min) :
(a=2)80/40/8.5 ( a=4)40/20/4.25
Rated lifting moment :
630KN.m
Color :
as per you inquiry
Power supply :
380V/60hz or as per your inquiry
Mast section Type :
block
Freestanding height :
35m
Max. lifting load :
5t
Rope length :
400m
Description

52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height

Specifications for 52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height
Main Performance Main Specifications
Rated lifting moment (KN.m) 630
Max. lifting load(t) 5
Tip load(t) 1.0
Working range(m) 52
Lifting height(m) Freestanding height 40
Attaching height 150
Mast section Main limb (mm) 135*10/ Q345B
Section size(mm) 1600*1600*2500
Lifting jib Upper chord(mm) Diameter 90 Round steel/ Q345B
Lower chord(mm) ∠100*10 Two angle steel / Q345B
Parallel face width (mm) 1380
Counter jib Length(m) 11.67
Hoisting mechanism Reducer JZQ500
Motor YZTD200-4/8/32-18/18/5KW
Brake YWZ-300/45
Wire rope 6X37-13-1770-1-1right lay
Hoisting speed (m/min) 70/35 35/17.5
Slewing mechanism Reducer XX80,195
Motor YZR132-6-3.7KW
Slewing speed (r/min) 0.6
Trolleying mechanism Reducer WXG120
Motor YD132S-4/8-3.3/2.2KW
Trolleying speed( m/min) 40/20
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ100/160/125
Motor Y132M-4
Slewing bearing Type 1250.40
Pre-sales Service for 52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height
  • More than 90% of the timely response rate;
  • Timely response to customer questions;
  • Provide professional product solutions;
  • Inquiry and consulting support;
  • Technical support;
  • View our factory.
After-sales Service for 52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height
  • Provice edited videos of the whole process of operation and maintenance;
  • Provide paper or electronic operation and maintenance instructions;
  • Localized service outlets guarantee;
  • housekeepers respond quickly;
  • Factory-specific equipment.
Optional parts for 52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height
(if you need them, please let me know in advance)
1) Anemometer
2) Air condition in cabin
3) Block box or space limiter
4) VFD control
5) PLC control

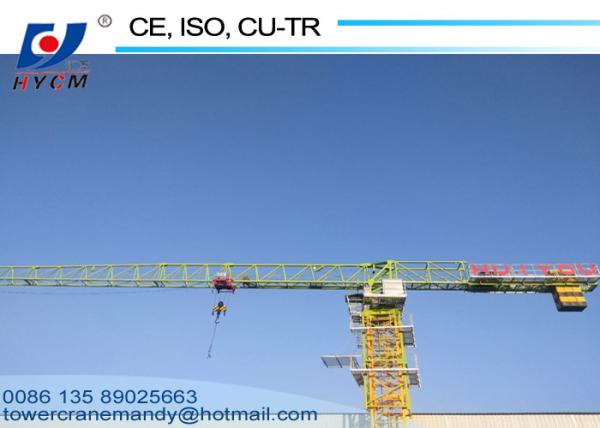

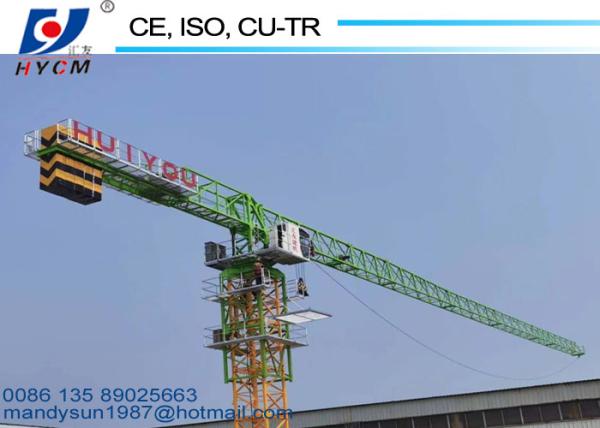

Photos for 52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height
52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height
52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height
52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height52m Jib Length Top Slewing Crane QTZ63(PT5210) Flat Top Tower Cranes 150m Tower Crane Lifting Height
