24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
Specifications
Brand Name :
HYCM-Tower CraneS
Model Number :
WD60(2420)
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set of no mast crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L or L/C at sight
Supply Ability :
50 sets of roof no mast crane per month
Delivery Time :
about 35 days after receiving the advance payment
Packaging Details :
Naked packing, 40'HQ or 20'GP container for no mast crane
Type :
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
Upper chord :
Ø70X6 / 20#
Lower chord :
Ø70X6 / 20#
Power supply :
380V/60hz
Wire rope :
6X37-13-1770-1-1right lay
Tip load :
2.4ton
Rated loading capacity :
6ton
Slewing speed :
0-0.6r/min
Least slewing radius :
5m
Application :
used for dismantleing luffing crane on the top of construction building
Boom length :
20m
Max. Lifting Height :
150m
Description

24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane


Specifications for 24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane

Model 6ton WD60
Working Radius (m) 3.5-24
Max. Load Capacity (T) 6
Tip Load (T) 2.0
Max. Lifting Height (m) 150
Lifting jib Upper chord(mm) Ø70X6 / 20#
Lower chord(mm) Ø70X6 / 20#
Hoisting Mechanism Reducer JZQ595
Motor YZTD200-2/4/16-24/24/5.4KW
Brake YWZ-300/45
Wire rope 6X37-13-1770-1-1right lay
Hoisting speed (m/min) 80/40 40/20
Slewing Mechanism Reducer XX100,195
Motor YTW132-6-5.5KW
Slewing speed (r/min) 0-0.6
Trolleying Mechanism Reducer 25TQ20
Motor YZPF200L1-4-25KW
Trolleying speed( m/min) 0-15
Slewing bearing Type 1250.40
Power Supply 380V/50Hz

"6S" SERVICES for 24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
Smart 1- Collaborate with others to solve your entire problem
Smart 2- Our goal is to provide you with a personalized service and complete solution
Specialized 1- Strict raw material control, only the best will pass the test
Specialized 2-Strict quality control, making flawless finished products
Speedy 1- Professional sales team, guarantee reply with-in 12 hours
Speedy 2- Speedy dispatch with minimal delays
Study 1—Study traditional Chinese values. Educating to be better person first, making better products after that
Study 2-Educate ourselves with professional for better service
Support 1-We have skilled expert providing all technical support
Support 2-Our front line workers are united and skilled
Sincere1- Think from our customers' perspective and fulfill their needs with our best effort.
Sincere 2-A warm welcome for every customer, build genuine relationships from friends all over the Globle.

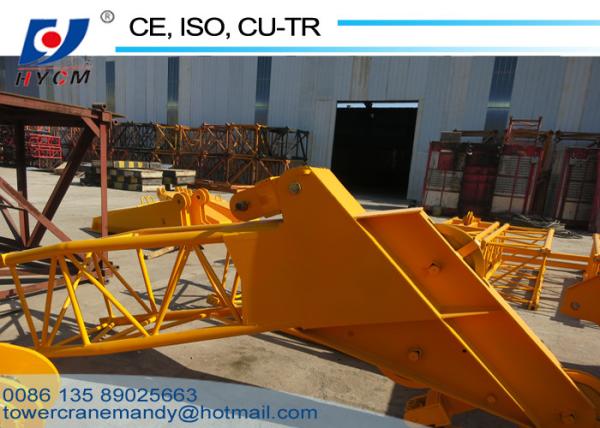

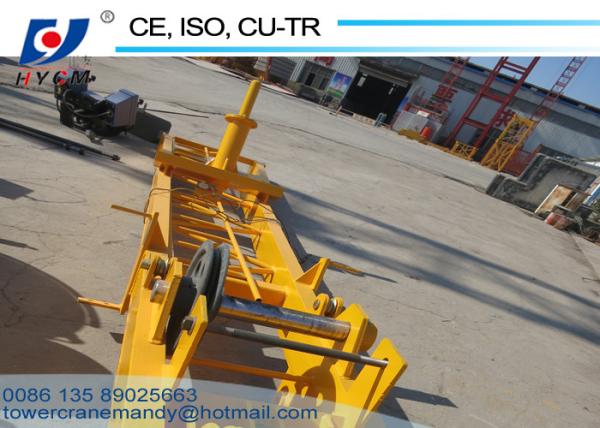

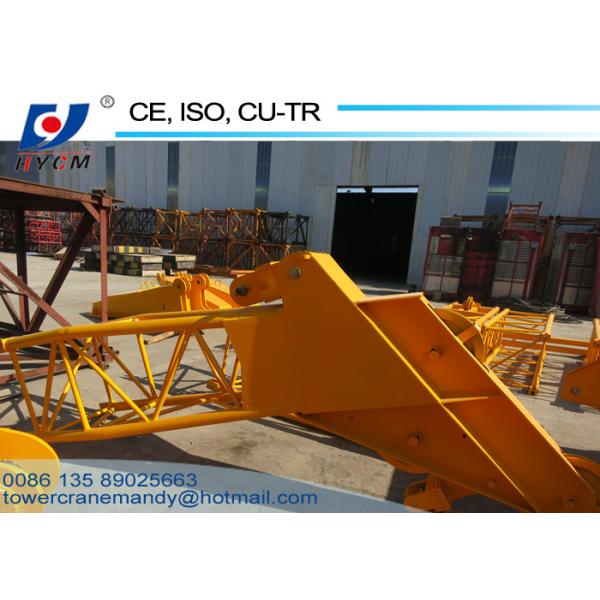

Photos for 24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane

24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane24m Arm Length Roof Crane 6ton WD60 No Mast Crane 150m Max. Lifting Height Schneider Dismantle Tower Crane
My dear friend, If you need any tower cranes, please tell us the below basic parameters:
1. Building height or tower crane working height.
2. Max load capacity and tip load capacity.
3. Span or jib length
4. Other Special requirements
