Specifications
Brand Name :
HYCM or other brands
Model Number :
YZE132L1-4
Certification :
ISO
Place of Origin :
China
MOQ :
1 set of three-phase asynchronous motor
Price :
Negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
1000 sets of three-phase asynchronous motor per month
Delivery Time :
about 10 days after receiving the deposit
Packaging Details :
Wooden case, 40'HQ or 20'GP container for three-phase asynchronous motor
Type :
102KG Electromagnetic Brake Hoist Motor Rack and Pinion Type Construction Elevator Parts102KG Weight Electromagnetic
Shipping :
Support Express/Sea freight/Land freight/Air freight
Customized :
Acceptable
Rated Speed :
1380r/min
Rated Power :
13kw
Weight :
102kg
Rated Voltage :
380V/195V.D.C
Brake Clearance :
1-1.5mm
Rated Parameters :
Motor/Brake
Motor Type :
YZE132L1-4
Braking Torque :
182N.m
Brake Model :
MZZ1-1.5/182
Condition :
100% new
Standard :
Q/320681 KVIL01-2018
Rated Frequency :
50Hz
Insulation Grade :
F
Working :
S4-25%
After-sales Service Provided :
Engineers available to service machinery overseas
Usage :
used for construction lift elevator
Rated Current :
29.5A/1.8A
Description

102KG Electromagnetic Brake Hoist Motor Rack and Pinion Type Construction Elevator Parts102KG Weight Electromagnetic

Specification for 102KG Electromagnetic Brake Hoist Motor Rack and Pinion Type Construction Elevator Parts102KG Weight Electromagnetic

Main Performance Main Parameters
Motor Type YZE132L1-4
Rated Power 13kw
Rated Frequency 50Hz
Rated Speed 1380r/min
Braking Torque 182N.m
Working S4-25%
Standard Q/320681 KVIL01-2018
Insulation Grade F
Brake Clearance 1-1.5mm
Weight 102kg
Brake Model MZZ1-1.5/182
Rated Parameters Motor/Brake
Rated Voltage 380V/195V.D.C
Rated Current 29.5A/1.8A
Protection Class IP54/IP23

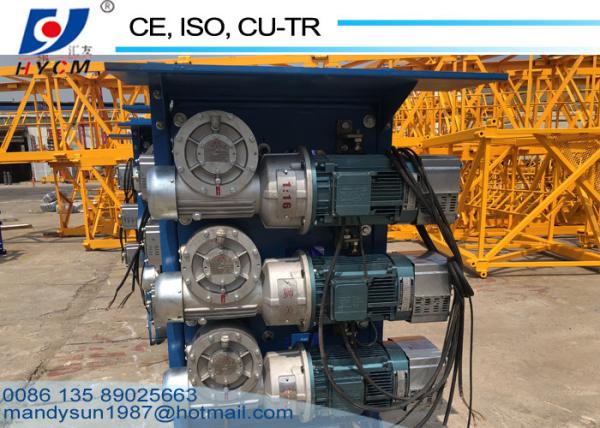

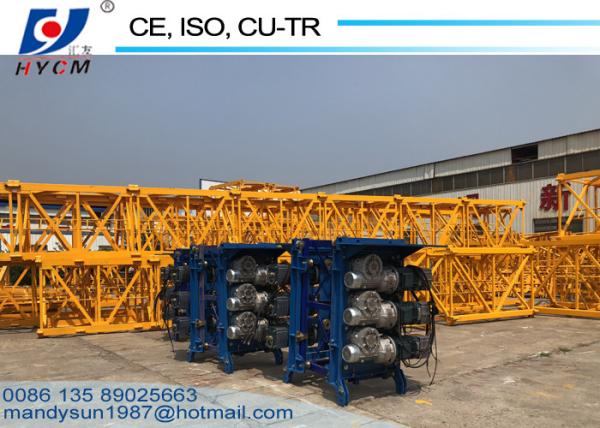

Photos for 102KG Electromagnetic Brake Hoist Motor Rack and Pinion Type Construction Elevator Parts102KG Weight Electromagnetic

102KG Electromagnetic Brake Hoist Motor Rack and Pinion Type Construction Elevator Parts102KG Weight Electromagnetic102KG Electromagnetic Brake Hoist Motor Rack and Pinion Type Construction Elevator Parts102KG Weight Electromagnetic

102KG Electromagnetic Brake Hoist Motor Rack and Pinion Type Construction Elevator Parts102KG Weight Electromagnetic102KG Electromagnetic Brake Hoist Motor Rack and Pinion Type Construction Elevator Parts102KG Weight Electromagnetic

FAQ for 102KG Electromagnetic Brake Hoist Motor Rack and Pinion Type Construction Elevator Parts102KG Weight Electromagnetic

Q1: What is the Warranty for construction hoist?
A1: For construction hoist, we can supply 1 year’s warranty. If any quality problem (not artificial reason) on our side occurred during this period, we will supply a free new one as replacement.
Q2: What is the meaning of SC for construction hoist model? And please illustrate.
A2: SC is classified according to China National Standard.
“S” is the acronym of construction hoist in Chinese language (Shi Gong Sheng Jiang Ji);
“C” is the acronym of rack and pinion in Chinese language (Chi Lun Chi Tiao).
For example: SC200/200 means rack and pinion type construction hoist. Double cages (“x/x” stands for the cage number, if one cage just show SC200) and 2000kg per cage load (x means the 10-1 of rated lifting load)
Q3: What are the optional parts for your construction hoist?
A3:1) Mast Section with Hot Galvanized;
2) VFD (variable Frequency Drive) for construction hoist, the rated speed could reach 36m/min by using it.
Q4: What is the safety device for your construction hoist?
A4: The safety device for construction hoist includes door limiter (up door limiter, single door limiter and double door limiter), up and down limiter, up and down terminal limiter, anti-falling device, and weight limiter with player.
Q5: What is the difference between mast section height and traveling height?
A5: Mast section height is most used and it is indicated by mast section number.
For example: 50m mast section height need 33 pieces mast sections (33*1.508=49.76)
Traveling height means the travel distance of cage from the ground to the bottom of cage. It is normally about 7.5m less than mast section height.
Q6: What is your trade items of construction hoist?
Qingdao or Shanghai or according to Clients' need. We could accept 1 set of our products as your trial order.
If any question about construction hoist, please feel free to contact us. We are waiting for you!
All kinds of hoist spare parts for 102KG Electromagnetic Brake Hoist Motor Rack and Pinion Type Construction Elevator Parts102KG Weight Electromagnetic
Driving device With 2-motors / 3-motors
Motor spare parts Braking system; brake sheet, motor adjustor, electromagnet, motor fan
Motor 11kw, 14.5kw,18kw
Coupling with rubber
Gear pinion M8, 15teet
Gear rack M8 40x60x1508mm
Gearbox 16:1,14:1,12:1;10:1
Master rollers For 76 tube and 89 tube
Safety device 30KN, 40KN, 50KN, 60KN
