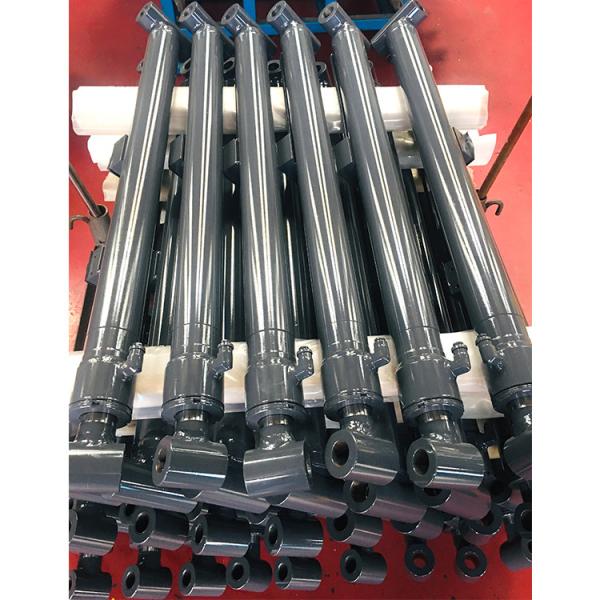

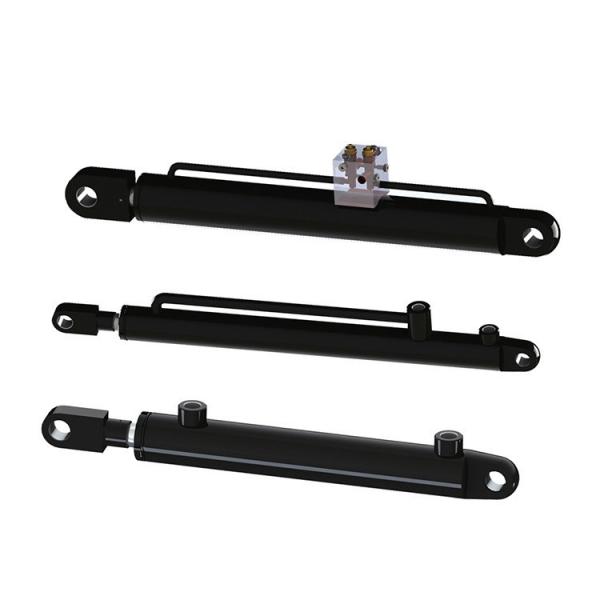

Custom Forklift Hydraulic Cylinder Long Stroke Car Lifting Non Standard
Custom Forklift Hydraulic Cylinder Long Stroke Car Lifting Non Standard
Custom Forklift Hydraulic Cylinder Long Stroke Car Lifting Non Standard
Custom Forklift Hydraulic Cylinder Long Stroke Car Lifting Non Standard
Specifications
Place of Origin :
Jiangsu,China
Brand Name :
JSRUIYA
Certification :
ISO 9000:2016
MOQ :
1PCS
Price :
Negotiation
Packaging Details :
Wooden box, iron box
Delivery Time :
15-45 Days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30,000 Pieces/Year
Body material :
Steel
Power :
Hydraulic
Structure :
hydraulic cylinder
Standard or nonstandard :
Nonstandard
Shaft diameter :
As per client's drawing require
Product name :
Forklift Lift Cylinder
Color :
according to customer requirement
Seals :
Hallite,Parker,chinese,Merkel,CF
Application :
Agricultural,Construction and so on,Excavator,3T/3.5T Forklift,Truck
Name :
forklift truck hydraulic cylinder
Warranty :
1 year
Type :
Hydraulic Cylinder
Working medium :
Hydraulic Oil
Description
Hydraulic car lift have 2 or 4 posts with arms which extend beneath your car to lift it by the frame. car lifts make use of hydraulic fluid, which cannot be compressed regardless of how much of pressure is exerted on it. The fluid flows via the hydraulic system and then moves into a cylinder which raises the car from the ground.

Hydraulic lifts are widely used in automobiles, containers, mold manufacturing,wood processing, chemical filling and other industrial enterprises and production lines, to meet the different needs of working height of lift, and can be equipped with various types of table form (such as ball, roller, wheel , turning, tilting,telescopic), with a variety of control modes (sub-action, interaction, explosion-proof),with a lifting smooth and accurate,frequent start, carrying capacity and other characteristics, an effective solution to various types of industrial enterprises indifficulty lifting operation, so that the production job easier.

Agricultural system steel tie rod minihydrauliccylinderscarliftelevatorhydrauliccylinder

Hydraulic Auto Lift Cylinders form a vital part of lift function, exerting the correct force to ensure the auto lift operates properly and raises and lowers the vehicle when the mechanic intends it to work. JARUIYA Hydraulic Machinery purpose-built auto lift cylinder is designed to produce maximum functionality under these high pressure conditions.

Our products are mainly used in following industries like car lift, agricultural machines and environmental vehicles. With high quality products and considerate after-sales service, we have established a well-known reputation.

Before purchase, pls contact me , we can discuss the cylinder details .

Factory price custom long stroke car lifth ydraulic cylinder

Custom Forklift Hydraulic Cylinder Long Stroke Car Lifting Non Standard

Custom Forklift Hydraulic Cylinder Long Stroke Car Lifting Non Standard

Hydraulic Cylinders for Auto car Lifts

This Single Action Hydraulic Cylinder is designed to use for the Scissor Lifter.

Features:
1. 3000PSI Rated pressure, 6000PSI testing pressure.
2. Imported world famous brands and Chinese top brands sealing system.
3. High quality Cold Drawn steel tube, with good regidity.
4. CNC Rolled tube inner surface, with roughness of 0.2~0.4um.
5. Superior strength chrome-plated rod, anticorrosion for a long life.
6. High grade Ductile Iron bar directly machined Gland and Piston, with high strength.
7. Heavy-Duty welded construction, automatic welding for good quality.
8. Twin-lip piston seals for maximum efficiency.
9. 100% factory tested under at least 1.5 times of the rated pressure.
Materials:
1. GLAND - High grade ductile iron
2. TUBE - High quality Steel tube, precision skived and rolled
3. TUBE SEAL - O-Ring with anti-extrusion backup washer
4. ROD - Chrome Plated C1045 Steel
5. ROD CLEVIS - High tensile steel
6. END CAP - Casting steel
7. PISTON - High grade ductile iron, precision machined
8. PISTON SEAL - Urethane Seal Rubber
9. GLAND SEAL - Polyurethane U-cup
10. ROD WIPER -Urethane
11. PORTS - NPT (SAE optional)
12. COLOR - Red, black, or as required
Welded Hydraulic Cylinders:
Rated pressure: 21MPa (3000PSI)
Bore diameter range: 2" to 8"
Stroke range: 4" to 60"
We can design and make Cylinders as customers's requirements and drawings.

Custom Long Stroke Car Lifter Hydraulic CylindersCustom Forklift Hydraulic Cylinder Long Stroke Car Lifting Non Standard

Custom Forklift Hydraulic Cylinder Long Stroke Car Lifting Non Standard

JSRUIYA Hydraulic Machinery promise:

1.100% quality assurance, develop and manufacture follow original ones;
2. Reasonable stock and timely delivery;
3. Quick response within 24 hours ;
4. Long-term strong and steady supplying ability;
5. One-to-one products factory.Ensure the best quality;
6. The first-class logistics & Ensure that your goods arrived safely;
7. Goods will Be packed safe & carefully;
8. Excellent After-sales service.Track usage.Positive feedback response;
9. Establish inquiry library for you, we are your professional sourcing consultant.

Hydraulic Cylinder Series Available:

Engineering Oil Cylinder Series;
Metallurgy Oil Cylinder Series;
Turn Over Plow Oil Cylinder Series;
Reaper Oil Cylinder Series;
Excavator Oil Cylinder Series;
Quality Gurantee And Service；
One Year Quality Gurantee;
Complete After-Sale Services;

We Can Offered The Nonstandard Cylinders.If You Need OEM Service,Please Give Us The Specification Or The Drawing Of The Cylinder In Order To Give You The Best Service&Price.(Cylinder Diameter,Pressure,Stroke,Application,Installation Method,Mounting Distance Etc).

JSRUIYA Hydraulic Machinery Promise:

1.100% Quality Assurance, Develop And Manufacture Follow Original Ones;
2. Reasonable Stock And Timely Delivery;
3. Quick Response Within 24 Hours ;
4. Long-Term Strong And Steady Supplying Ability;
5. One-To-One Products Factory.Ensure The Best Quality;
6. The First-Class Logistics & Ensure That Your Goods Arrived Safely;
7. Goods Will Be Packed Safe & Carefully;
8. Excellent After-Sales Service.Track Usage.Positive Feedback Response;
9. Establish Inquiry Library For You, We Are Your Professional Sourcing Consultant.

JSRUIYA Hydraulic Machinery Have More Than One Decade Experience In Supplying Custom Hydraulic Cylinders With Provided Drawings Or Samples, Or If You Could Provide Following Specification:

1. Diameter Of Bore & Rod
2. Stroke
3. Mounting Style
4. Mounting Distance
5. Working Pressure
6. Ports
7. Seals
8. Special Modifications

Certainly, You Can Provide Drawing And Product Photos So That We Can Understand Your Meaning More Conveniently, Or You Can Also Send Us Sample And We Produce For You According To Your Sample.

Mounting Way:

1. Front And End Of Earring
2. Head Fixed With Flange
3. End Fixed With Flange
4. Vertical To Axis Foot Type
5. Middle Fixed With Pendulum Shift
6 . End With Single Earring

Quality Control:

1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
4. Type Inspection:Every Piece Of Hydraulic Cylinder Is Tested And Will Send Out Only After They Are Pasted Each Test.

Package&Delivery

1. Each One Packed In Carton Case, Then Put Several Carton Case In The Wooden Case, Supported By The Tray.
2. Depends On The Customers' Requirements.
3. Shipped In 30 Days After 30% Deposit , The Rest Should Be Paid Before Delivery.

Warranty And After-Sale Services:

1. We Provide The Replacement Parts For Free Due To Quality Problems Under Proper Operation Within Warranty Period.
2. After Warranty Period, We Will Charge The Replacement Parts At Cost Price.
3. Consultant Services For Whole Machine Life, And 24 Hours Technical Support By Email;

Payment:

T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.

Application:

• Truck And Trailer •Automotive Lifts •Mining •Gas And Oil Industries •Forklifts

• Scissor Lifts •Tractors •Farm Implements •Harvesters •Hay Balers

• Ladder Trucks •Dump Trailers •Lift Gates •Wheel Loaders •Excavators

• Bulldozers •Garbage Trucks •Compactors •Hoist Trucks •Cranes

• Snow Equipment •Wood Splitter

FAQ:

1. Are You Manufacturer Or A Trading Company?
We Are The Manufacturer, And Have Been In This Industry For Nearly Ten Years.


2. What's Your Payment Way?
T/T By Our Bank Account Directly, Or By Alibaba’s Trade Assurance Service, Or By The West Union, Or In Cash.


3. How Can You Ensure The Unit’s Quality After We Put The Order?
Before The Delivery, We Will Send You Machine’s Pictures And Videos, Or You Can Come To Us To Have The Quality Checking By Yourself, Or By The Third Party Inspection Organization Contacted By Your Side.


4. We Are Afraid You Won't Deliver Us The Machine After We Pay You The Money.
Please Note Our Above Business License And Certificates. And If You Don't Trust Us, You Can Use Alibaba’s Trade Assurance Service .


5. Why Choose Your Company?
We Have Been Engaged In The Manufacturing Of Various Hydraulic Power Unit Professionally Nearly 10 Years With Hundreds Of Oil Circuits, Which Can Meet The Needs Of Different Requests.
