Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin
Specifications
Brand Name :
Elephant Fluid Power
Model Number :
20/925337
Certifiion :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Elephant Fluid Power
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
500000 sets per week
Delivery Time :
5-8 days
Packaging Details :
Carton box or wooden
Material :
Iron Cast
Appliion :
JCB equipment repair
Interchange :
100%
Quality :
As original
Service :
After-sales service
Variety :
Plenty
Description

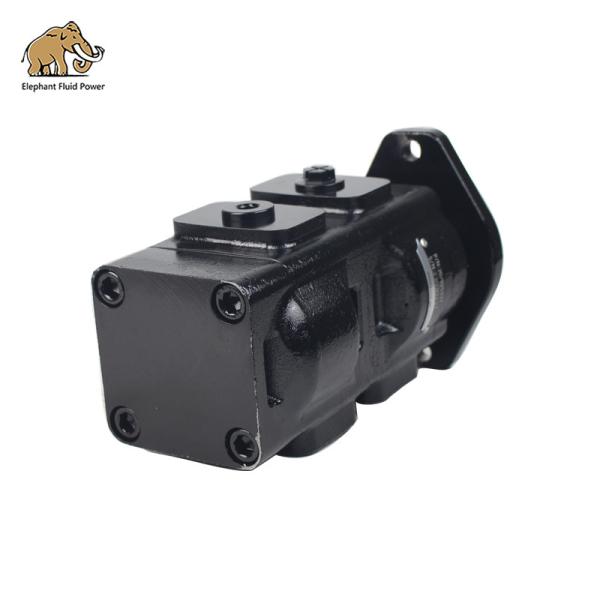

Elephant Fluid Power Made OEM Parker 20/925337 Hydraulic Pump JCB 3CX Twin Hydraulic Pump Gear Pump Replacement

Best Price Parker 20/925337 Hydraulic Pump JCB 3CX Twin Hydraulic Pump Gear Pump

Elephant Fluid Power offers Best Price Parker 20/925337 Hydraulic Pump JCB 3CX Twin Hydraulic Pump Gear Pump,equivalent quality as original,fast delivery time,one year warranty after-sales.

Techinical information:

  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Combined Single pump outlet: 1 1/16”-12 UNF threaded
  • Maximum working pressure on front pump: 275 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Weight

  • 26KG

Replaces the following JCB part numbers

  • 20/925337

Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin

Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin

Elephant Fluid Power Made OEM 20/925337 Hydraulic Parker Pump JCB 3CX Twin

JCB Pumps we supply:

At Elephant Fluid Power we have a wide range of aftermarket JCB parts, including an extensive range of HYDRAULICS parts.

  • JCB Gear Pump ( List as following)
  • JCB main Pump ( K3V63 K3V112DT, K5V140DTP, HPV118, HPV145, K5V140DTP etc)
  • JCB piston Pump ( Rexroth A10VSO, A20V Sereies )
  • Spare parts of JCB Main Pump, and Piston Pump ( Piston, Cylinder block, valve plate, charge pump, control valve, seal kit ...)
  • JCB Steering (35/410900 35/410700 etc)
JCB CODE of Gear Pump
332/F9030 20/925580 7029120047
333/G5390 332/G7135
332/F9032
332/F9029 20/925579 20/925339 20/925338
332/F9031 20/925581 333/G5391
20/925340 7029120005
20/925341
20/925366 220/925586 333/C5234 333/G5392
20/925337
20/925578 20/925586 332/F9028
20/912800 20/903100 20/902900
20/903200 20/911200
20/902900
20/903000
20/903300 4074
20/925592 20/925357
7049520006 332/E6671
919/75002
20/925732 7049532007
20/925588 20/925356 7029530002
20/925591 20/918300

Our Hydraulic Pump - JCB gear pumps and piston pumps can be shipped to over 70 countries worldwide. If you need any help in choosing the right part or want to make sure the part is the right one for your machine, then our friendly team will be more than happy to help.Our products have been a famous brand in the world based on our quality and services.If you need any of them,you can contact me for more details.
