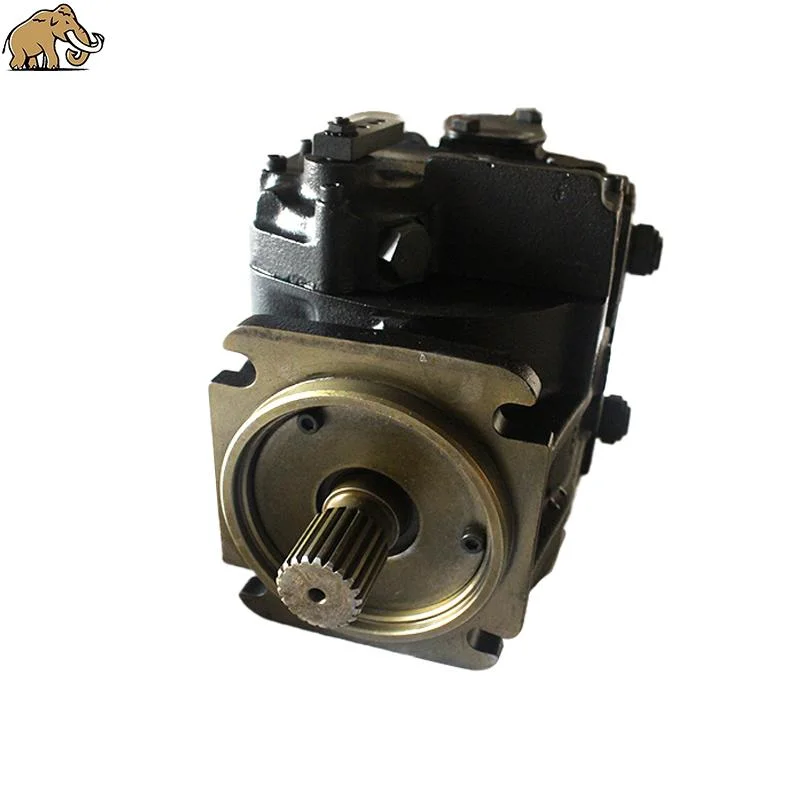

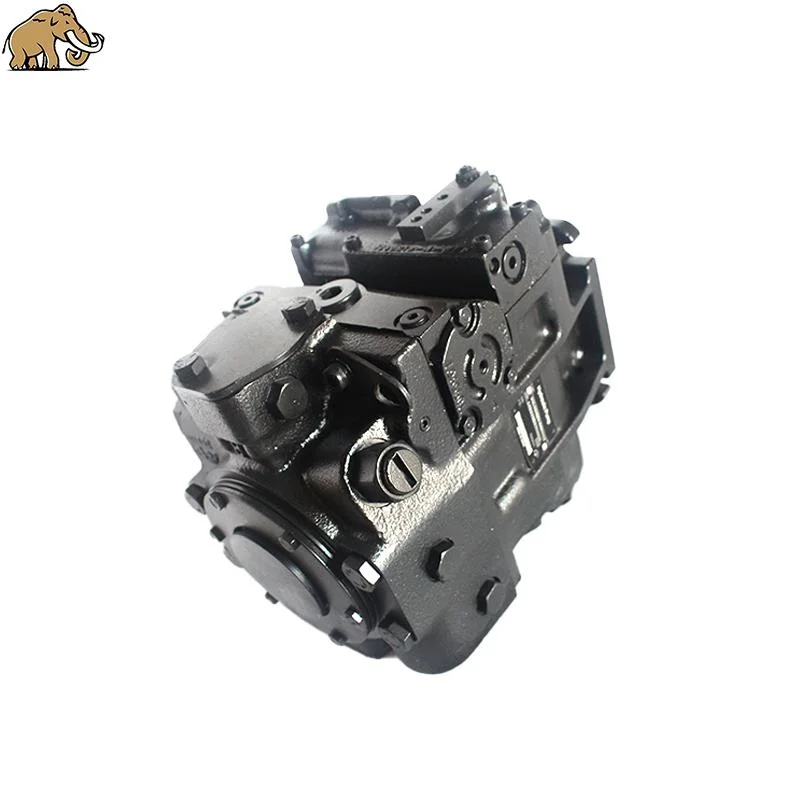

90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
Specifications
Brand Name :
Elephant Fluid Power
Model Number :
Sauer
Certifiion :
SGS, CE
Place of Origin :
Hebei Province China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Sets/month
Delivery Time :
Based on inventory
Packaging Details :
Wooden Box
Name :
90R55
Condition :
Brand New
Quality :
Same With Original
Sample :
1 unit is avaiable
Description

SCHWING hydraulic maintenance 10174306 A4FO22/32L

Elephant fluid power supply A series of Sauer 90 Pump.

Best choice for replacment.

Sauer 90 pump

Hydraulic pump Sauer Sundstrand 90R series 90R030, 90R042, 90R055, 90R075, 90R100, 90R130, 90R180, 90R250
90L series 90L030, 90L042, 90L055, 90L075, 90L100, 90L130, 90L180, 90L250

Closed circuit
Size 030 042 055 075 100 130 180 250
Series 90
Maximum loads of 480 bar (6960 psi)
Controls device: CA, DC, DD, KA , KP, HF, MA, MB, etc.

Series 90 axial piston variable displacement pumps are of cradle swash plate design with variable displacement, and are intended for closed circuit appliions. The flow rate is proportional to the pump input speed and displacement. The latter is infinitely adjustable between zero and maximum displacement. Flow direction is reversed by tilting the swash plate to the opposite side of the neutral (zero displacement) position.
- The Series 90 - Advanced Technology Today
- 8 Sizes of Variable Displacement Pumps
- Complete Family of Control Systems
- Proven Reliability and Performance
- Optimum Product Configurations
- Compact and Lightweight

Technical Data
Table of values (theoretical values, without efficiency and tolerances; values rounded)

Sauer 90 Dimension 90R030
90L030		 90R042
90L042		 90R055
90L055		 90R075
90L075		 90R100
90L100		 90R130
90L130		 90R180
90L180		 90R250
90L250
Displacement cm3 30 42 55 75 100 130 180 250
in3 1.83 2.56 3.35 4.57 6.1 7.93 10.98 15.25
Input speed Minimum min-1 (rpm) 500 500 500 500 500 500 500 500
Rated min-1 (rpm) 4 200 4 200 3 900 3 600 3 300 3 100 2 600 2 300
Maximum min-1 (rpm) 4 600 4 600 4 250 3 950 3 650 3 400 2 850 2 500
Max. Attainable min-1 (rpm) 5 000 5 000 4 700 4 300 4 000 3 700 3 150 2 750
Theoretical Nm/bar 0.48 0.67 0.88 1.19 1.59 2.07 2.87 3.97
Torque in lb/1000 psi 290 410 530 730 970 1 260 1 750 2 433
Mass moment of inertia of the int. rotating parts kg m2 0.0023 0.0039 0.006 0.0096 0.015 0.023 0.038 0.065
lb • ft2 0.0546 0.0926 0.1424 0.228 0.356 0.546 0.902 1.543
Weight (with MA Control) kg 28 34 40 49 68 88 136 154
lb 62 75 88 108 150 195 300 340


Our company has rich experience in repairing various imported and domestic hydraulic components such as plunger pumps, motors, reducers and so on. The company has advanced hydraulic pump test benches, and is equipped with professional hydraulic system engineers, maintenance engineers have rich practical maintenance experience. Products are widely used in roadheaders, excavators, concrete mixers, concrete pump trucks, pumping stations, pavers, road rollers, road mixers, hydraulic hoists, steel rolling machines, injection molding machines, petroleum equipment, environmental protection and other hydraulic machinery. Covers construction machinery, construction machinery, metallurgical machinery, mining machinery, hoisting machinery, injection molding machinery, chemical machinery, petroleum, shipping, environmental protection and other fields. The company has flexible mechanism, good reputation, good service and reliable product quality.
