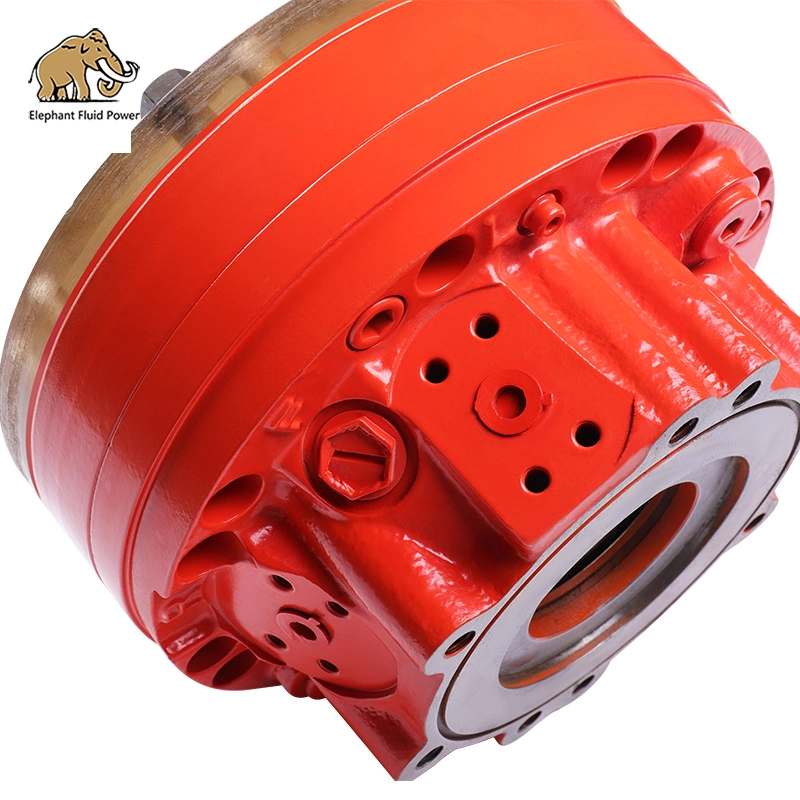

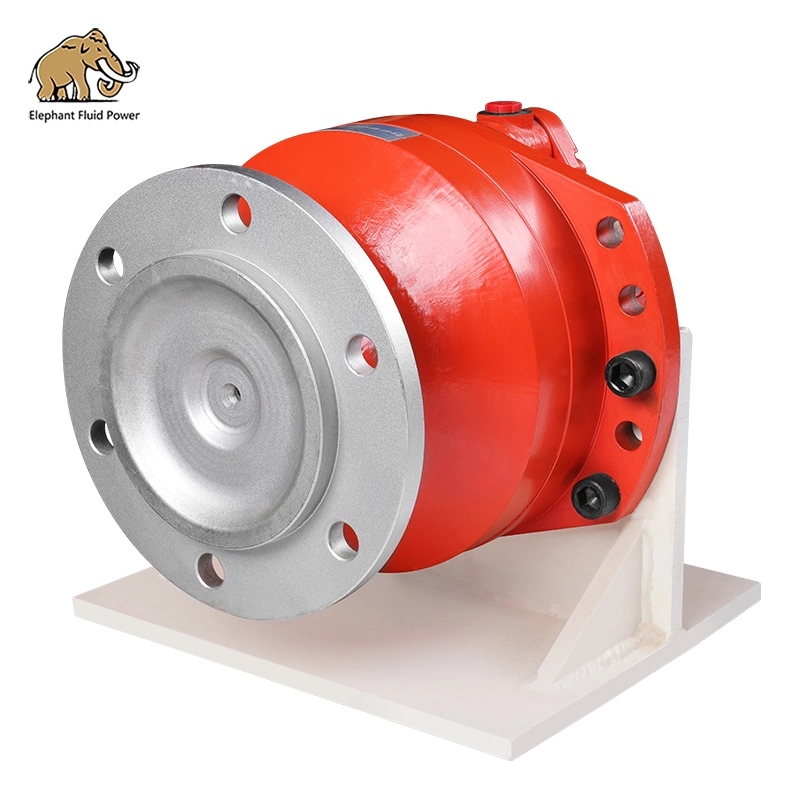

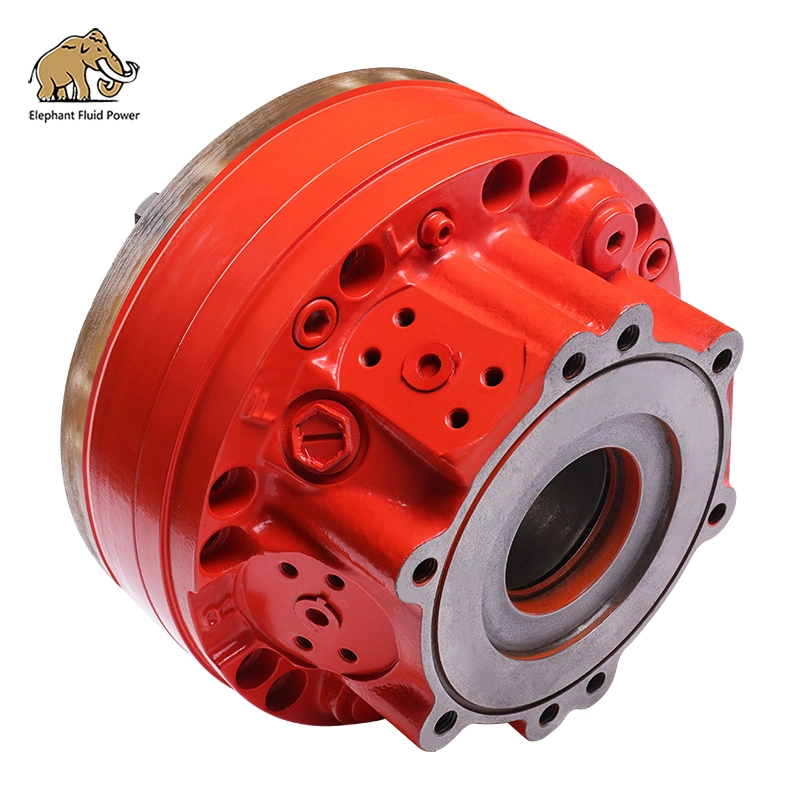

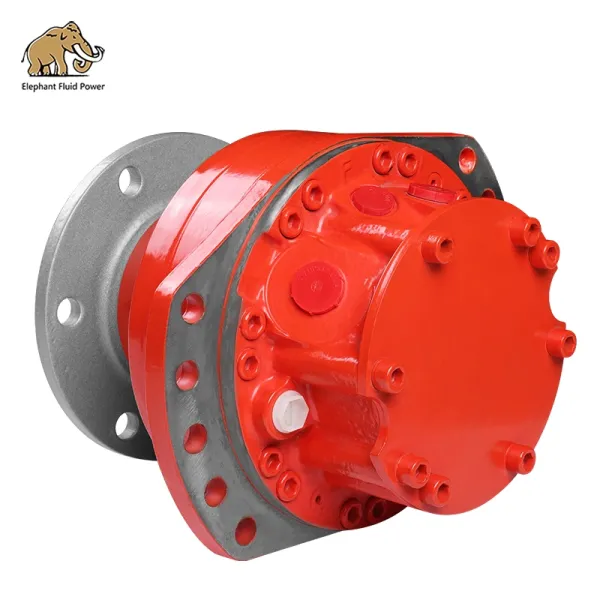

Construction Machinery Hydraulic Piston Pump Parts Poclain Ms08 Hydraulic Motor
Construction Machinery Hydraulic Piston Pump Parts Poclain Ms08 Hydraulic Motor
Construction Machinery Hydraulic Piston Pump Parts Poclain Ms08 Hydraulic Motor
Construction Machinery Hydraulic Piston Pump Parts Poclain Ms08 Hydraulic Motor
Construction Machinery Hydraulic Piston Pump Parts Poclain Ms08 Hydraulic Motor
Construction Machinery Hydraulic Piston Pump Parts Poclain Ms08 Hydraulic Motor
Construction Machinery Hydraulic Piston Pump Parts Poclain Ms08 Hydraulic Motor
Construction Machinery Hydraulic Piston Pump Parts Poclain Ms08 Hydraulic Motor
Construction Machinery Hydraulic Piston Pump Parts Poclain Ms08 Hydraulic Motor
Construction Machinery Hydraulic Piston Pump Parts Poclain Ms08 Hydraulic Motor
Specifications
Brand Name :
Elephant Fluid Power
Model Number :
MS(E)02,MS(E)05,MS(E)08,MS(E)11,MS(E)18,MS25,MS35,MS50,MS83,MS125...
Certifiion :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 Set/month
Delivery Time :
5-10 Days
Packaging Details :
Carton box,Wooden box
Meterial :
Cast,Ductile iron, steel, bronze and others
Name :
Hydraulic Pump spare Parts
Type :
MS(E)02,MS(E)05,MS(E)08,MS(E)11,MS(E)18,MS25,MS35,MS50,MS83,MS125...
Appliion :
Piston pump repair
Quality :
High quality
Advantage :
Fast Delivery,Advantage Price
Description

Product Description

MS(E)08 Poclain hydraulic motors equivalent for construction machinery

Product Description

Elephant fluid power company supply the series hydraulic motors, like MS(E)08 Series piston motors
matching Polcain motors, the same specifiion, same design, and performance,100% replacement of original type.

Product details

1.radial piston design.
2.higher output torques,lower output speed,smoother output speed at low speeds.
3.optimized and modular design capable of delivering high performance.
4.highly efficient at any speed or operating pressure.
5.withstand the most extreme operating conditions and require very little maintenance.

MS(E)08 Hydraulic Motor Appliions:

Mining Machinery: Coal Mine Drill, Heavy Duty Handling Car.

Engineering Machinery: Scavenging Machine, Aircraft Tractor, Beam Carrier/Hoisting Machine.

Farming Machinery: Mini Farming Vehicle, Ditcher

Code
HMS08
Displacement Group
6
8
9
0
1
2
Displacement(ml/r)
467
627
702
780
857
934
Theoretical torque at 10Mpa(N.m)
743
997
1116
1240
1363
1485
Rated speed(r/min)
160
160
125
125
100
100
Rated pressure(Mpa)
25
25
25
25
25
25
Rated torque(N.m)
1530
2050
2300
2550
2800
3050
Max.pressure(Mpa)
31.5
31.5
31.5
31.5
31.5
31.5
Max.torque(N.m)
1890
2500
2800
3150
3450
3750
Speed range(r/min)
0-210
0-210
0-185
0-170
0-155
0-140
Max.power(kW)
Standard displacement is 41kW,variable displacement priority rotation 27kW,no priority is 21kW.

features:

-- High performance rotary group with well-proven spherical control area offering the following advantages, self-centering.

-- Low periph-eral speed

-- High efficient.

-- Long service life robust rolling bearing.

-- Drive shaft will support radial loads.

-- Low noise level.

-- High duty roller bearing for intermettent high pressure operation.

-- For continuous duty hydrostatic are availabe.

-- Excellent starting characteristics.

-- High power density

-- Optional mounting position

Our advantages:


High performance:The performance of our motor is very close to Poclain & Rexroth original motors, even sometimes be superior to original motor.

100% interchangeable:Both complete motor and spare parts, our products could completely replace to Poclain & Rexroth original motors.

Reasonable price:In the spirit of winwin principle, our price system has been settled much lower than Poclain & Rexroth original motors.

Fast delivery time:Most of the spare parts we have inventory, so that we can keep the delivery time within 10 days for regular motor.

Excellent aftersales service:we have 12 months' quality warranty, and within warranty time ,all repairment are free of charge.
