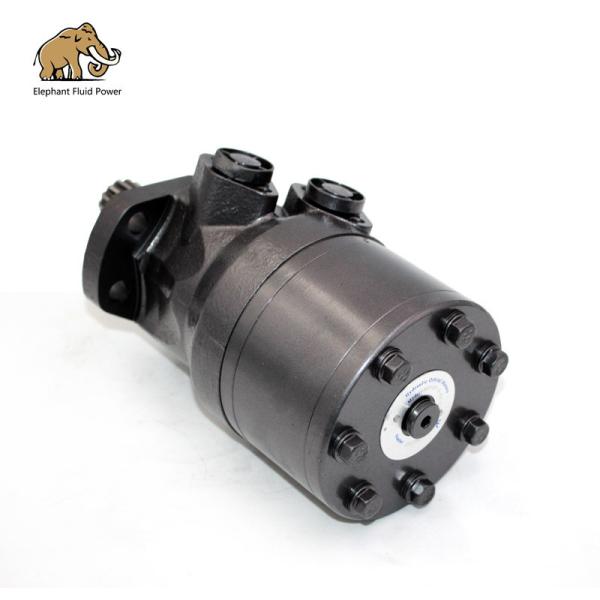

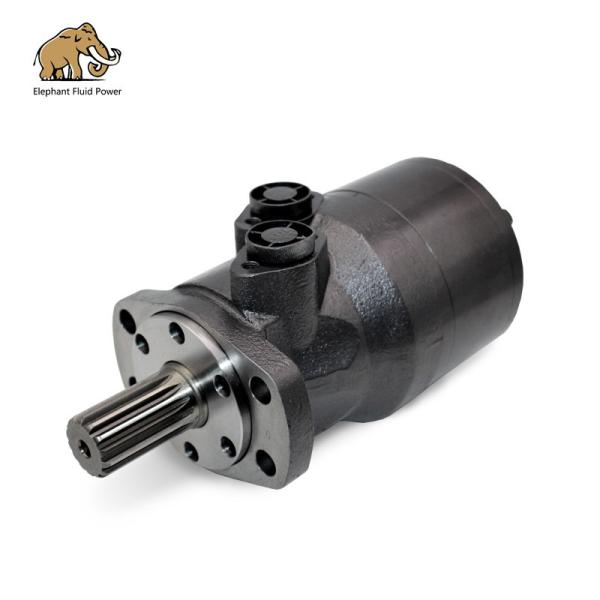

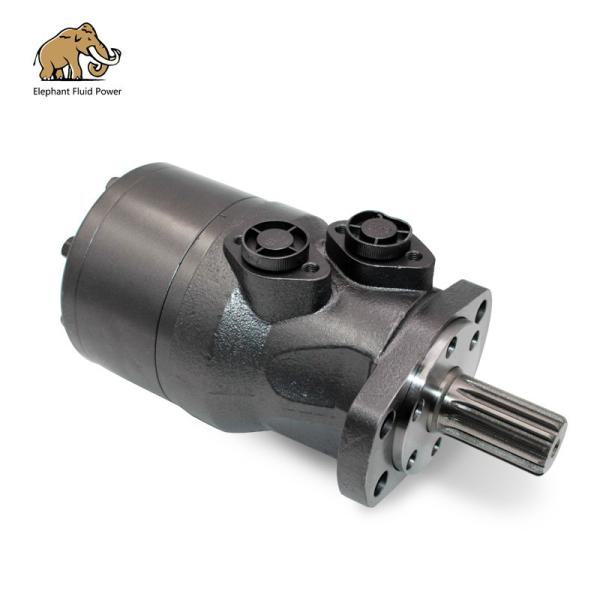

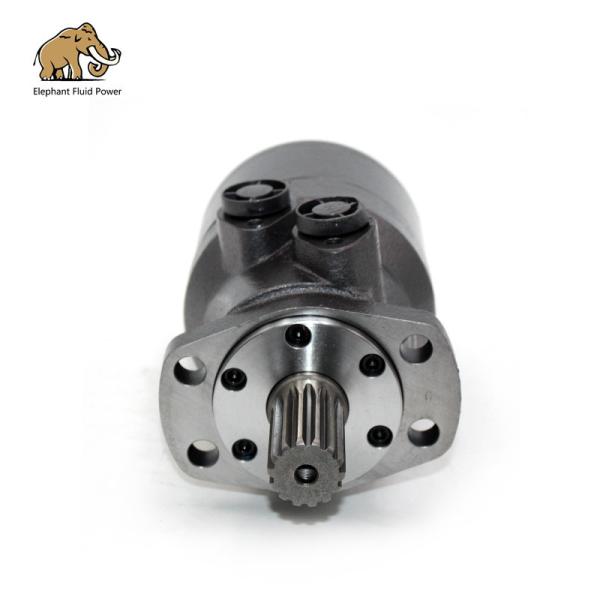

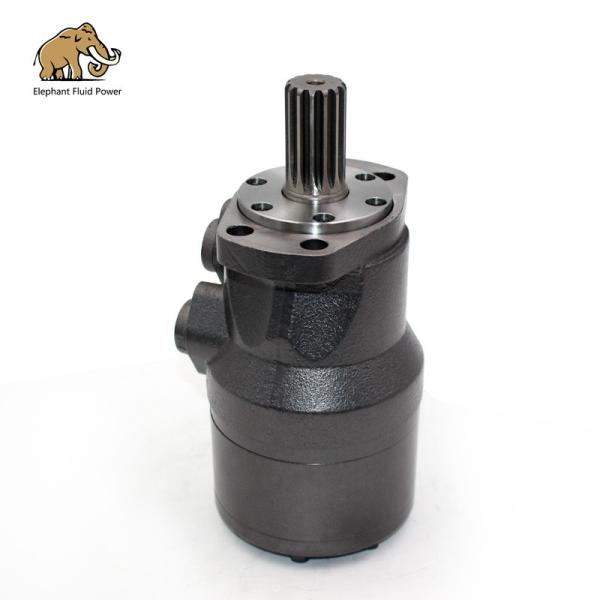

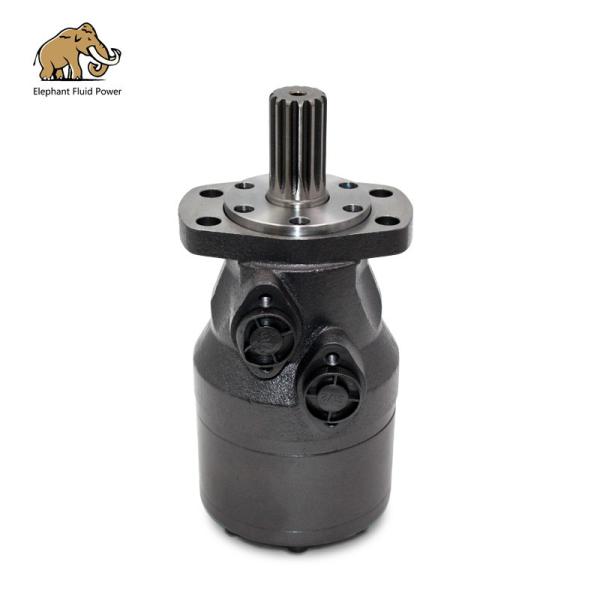

Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
Specifications
Brand Name :
Danfoss aftermarket
Model Number :
BMH
Certifiion :
ISO9001,CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C,Paypal
Supply Ability :
30000 Set/month
Delivery Time :
20-30 Days
Packaging Details :
Carton box
Material :
Cast,Ductile iron, steel, bronze and others
Type :
Orbit Motor
Appliion :
Concrete Pump
Other name :
Hydraulic Gertor Motor
Displacement :
489.2CC
Direction :
Left And Right
Warranty :
12-18 Months
Max torque (n.m) :
830
Description

Concrete Pump Spare Parts Putzmeister 10039180 Hydraulic Orbit Motor OMH BMH 500 Aftermarket Parts

Product description:

This BMH-500-4-FD-D can 100% replace with Danfoss OMH 500,and with top quality.

BMH series motor adapt the advanced Geroler gear set design with shaft distribution flow, which
can automatically compensate in operating with high pressure, provide reliable and smooth operation,
high efficiency and long life.
Characteristic features:
* Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,
provide smooth, reliable operation and high efficiency.
* Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
* Special design in the driver-linker and prolong operating life.
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation.
Specifiion:
Type

BMH

200

BMH

250

BMH

315

BMH

400

BMH

500

Displacement

(cc/rev)

 203.2 255.9 316.5 406.4 489.2

Max torque

(n.m)

 cont 510 621 740 850 830
int 439 348 282 220 184

Max pressure

(mpa)

 cont 17.5 17.5 17.5 15.5 12.5
int 20 20 20 19 16

Max speed rate

(rpm)

 cont 366 290 236 183 155
int 439 348 282 220 184

Max flow

(L/min)

 cont 75 75 75 75 75
int 90 90 90 90 90

Weight(kg)

 10.5 11 11.5 12.3 13.0

Apliion:

The bright body of this series of motors is made of ductile cast iron with sufficient strength. It is suitable for occasions with small loads and gaps. It is widely used in agriculture, forestry, plastics, machine tools, and mining machinery. Such as the adjustment of the injection molding machine. Sweeper, sawmill, work platform, etc.

Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts

Putzmeister Hydraulic Orbit Motor BMH 500 Pump Spare Parts
