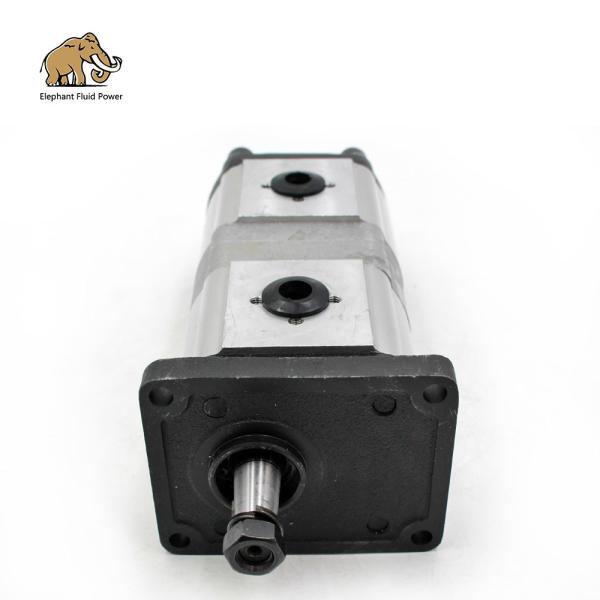

Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Cbt E3 Hydraulic Tractor Pumps Oil Gear Parts 400rpm For Forklift
Specifications
Brand Name :
Elephant Fluid Power
Model Number :
CBT-E3-12-12-F-S3-R-11
Certifiion :
ISO9001，CE
Place of Origin :
China
MOQ :
1
Price :
Nogotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000PCS/Month
Delivery Time :
Within 7 Days
Packaging Details :
Carton box
Material :
Cast iron,Aluminum alloy
Name :
Hydraulic Gear Pump
Appliion :
Forklift
Other name :
Tractor pump
Quality :
High quality
Advantage :
Fast Delivery,Advantage Price
Model :
CBT-E3-12-12-F-S3-R-11
Original :
Made In China
Description

Hydraulic Tractor Pump CBT-E3-12-12-F-S3-R-11 Hydraulic Gear Pump Forklift Pump Gear Oil Pump

Product details:

CBT-F5 gear pump adopts high-strength aluminum alloy material, and the internal structure uses many advanced technologies such as axial clearance floating compensation, radial balance, and DU self-lubriion. It has the characteristics of high volumetric efficiency, high pressure, low noise, strong vibration resistance and long life. Widely used in construction machinery such as forklifts, loaders, excavators, cranes, road rollers and mining, light industry, environmental sanitation, agricultural machinery and other industries

When the gear meshes, the tooth-direction contact line separates the oil suction chamber and the pressure oil chamber, and plays the role of oil distribution. When the driving gear of the gear pump is driven by the electric motor to continuously rotate, the gear teeth are disengaged from the meshing side. As the sealing volume increases, oil is continuously sucked from the oil tank. The gear teeth enter the meshing side, and the sealing volume decreases continuously. Drain oil, this is how the gear pump works

Product Advantage:


★ High-strength aluminum alloy shell
★ Input shaft connection forms include flat key, rectangular spline, involute spline, SAE involute spline
★ The connection forms of the inlet and outlet ports are available with thread, flange, etc.
★ The automatic axial clearance compensation mechanism enables the oil pump to maintain high efficiency for a long time
★ The working pressure is high, the speed range is wide, and the high volumetric efficiency can be maintained even when the speed reaches 400rpm.

Specifiions

Attribute Specifiions
Material Cast/Ductile iron, steel, bronze and others
Types Tractor pump
Function Completely interchangeable with original pump
Parts name Hydraulic gear pump
Processing technic Cutting, lathe, machining center, heat treatment, grind, honing, burring and so on
Trademark Elephant Fluid Power, Neutral label, or according to client’s requirement
