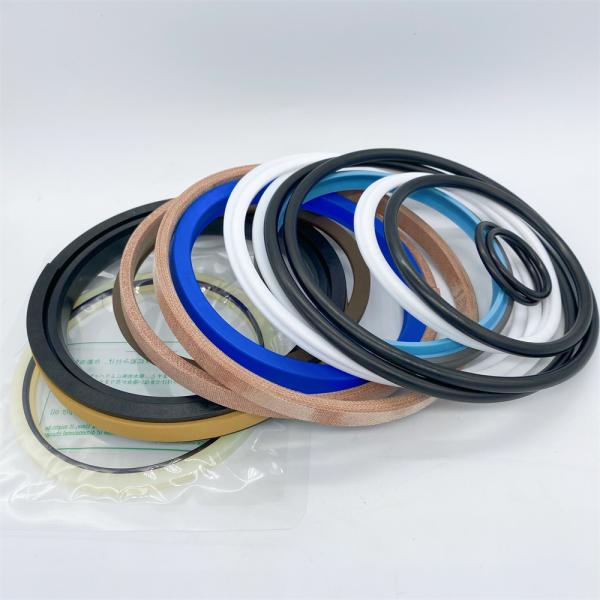

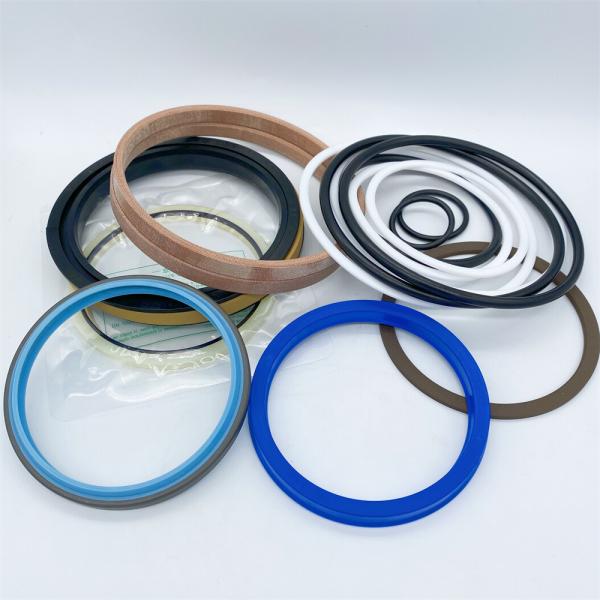

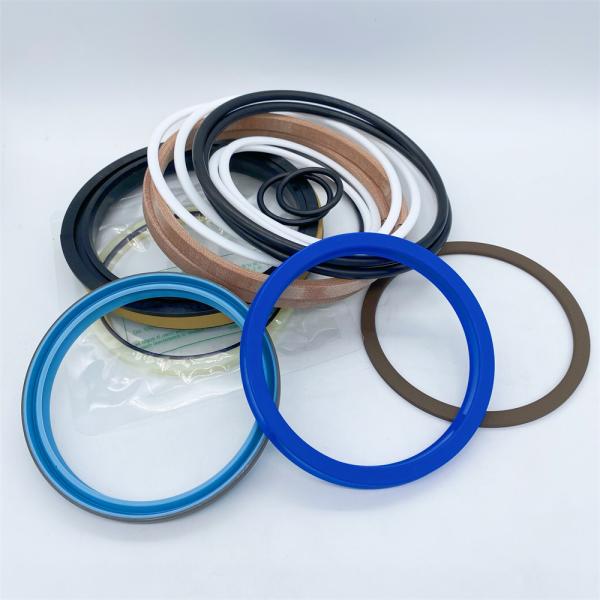

Komatsu PC200-7 Arm Cylinder Excavator Seal Kit 707-99-57160 707-99-47790
Komatsu PC200-7 Arm Cylinder Excavator Seal Kit 707-99-57160 707-99-47790
Komatsu PC200-7 Arm Cylinder Excavator Seal Kit 707-99-57160 707-99-47790
Komatsu PC200-7 Arm Cylinder Excavator Seal Kit 707-99-57160 707-99-47790
Komatsu PC200-7 Arm Cylinder Excavator Seal Kit 707-99-57160 707-99-47790
Komatsu PC200-7 Arm Cylinder Excavator Seal Kit 707-99-57160 707-99-47790
Specifications
Model Number :
PC200-7 PC220-7 707-99-57160 707-99-47790
Place of Origin :
China
Price :
Negotiable
Payment Terms :
T/T, Western Union,
Supply Ability :
500Set
Delivery Time :
1-7 Work Days
Packaging Details :
Plastic bag and Carton
Part Number :
707-99-57160 707-99-47790
Part Name :
Arm Cylinder Seal Kit
Application :
Komatsu Crawler Excavator
Material :
PTFE+NBR+PU
Feature :
Oil-resistant , heat resistant , Durable
Color :
Blue + White
Rod :
95MM
Bore :
135MM
Description

Komatsu PC200-7 Excavator Seal Kit 707-99-57160 Arm Seal Kit 707-99-47790

Specification

Product Name Oil Seal Kit for Excavator Hydraulic Cylinder
Application Komatsu Excavator PC200-7 PC220-7
Part Number 707-99-57160 707-99-47790
Material PTFE+NBR+PU
PTFE Fillers Bronze and virgin PTFE
Propeties

High temperature
Color Blue + White
Sizes 95MM / 135MM
Hardness

30 - 90
Feature Oil-resistant , heat resistant , Durable

Description

SKF rod seal:
The reinforced structure design is insensitive to the slight damage of piston rod and sealing groove and will not leak.
The diameter of the product is in the middle of the design, the dynamic performance in the groove is good, easy to install.
U - 1023 polyurethane material has a wide working temperature range, the limit temperature range is-60 °C to 130 °C, and the long-term temperature range is 30 °C to 110°C.
The product has a star ring, which ensures the precompression and shrinkage of the seal lip under the condition of high and low pressure, and improves the reliability of the seal. Good sealing performance can be achieved even in low temperature working environment.
Disposable injection molding technology, does not need to go through the secondary trimming, the size is more accurate, the performance is superior.

Sealing Element

Piston seal/piston ring:ODI,OSI,SPG,SPGW,SPGO,SPGC,SPGD,SPGI,OHM,OK,SPN,SPNS.
Dust seal: DKIY,DWI,DWIR,DKBI,DKB,DKH,DSI,VA,VAY,LBI,DLI.
Rod seal/rod packing: IDI,ISI,IUH,UNI,SPNO,SPNC,IUIS.
Piston & Rod: UPH,USH,USHR.
Buffer seal/buffer ring:HBY,HBTS,HBT,HBTY,HBTZ
Wearing ring: RYT,WR.
Pollution prevention seal: KZT.
Back up ring: BRT,T3G,T3P,N4W
O Ring/D RING/X RING: Material:NBR,VMQ,FKM.
Adjuster seal:OUY,UKH.
Center joint seal:ROI,SPNN
Others: BUSHING,IBP,IBG,CWR,STEP SEAL,SLIDE RING,WIPER SEAL,ROTARY SEAL.
Skeleton seal: TC,TB,VC,VB,TCV,TCN.

Material Power-transmission fluid Temperature Speed Pressure Max.Gap F
IDI: Polyurethane Mineral Oil -45℃ - +110℃ ≦1.0m/s 400 bar F ≦0.4 mm
HBY: Polyurethane Mineral Oil -45℃ - +111℃ ≦1.1m/s 300 bar F ≦0.6 mm
SPGO: PTFE+bronze Mineral Oil -45℃ - +112℃ ≦1.2m/s 400 bar F ≦0.2 mm
SPGW: PTFE+bronze Mineral Oil -45℃ - +113℃ ≦1.3m/s 500 bar F ≦0.4 mm
KZT: PTFE+bronze Mineral Oil -45℃ - +114℃ ≦1.4m/s 6 MN/㎡
WR: Resin fabric Mineral Oil -45℃ - +115℃ ≦1.5m/s
O-RING: NBR Mineral Oil -45℃ - +116℃ ≦1.6m/s ≦60-350 90A
DKBI: Polyurethane Mineral Oil -45℃ - +117℃ ≦1.7m/s
BRT3 Mineral Oil -45℃ - +118℃ ≦1.8m/s
