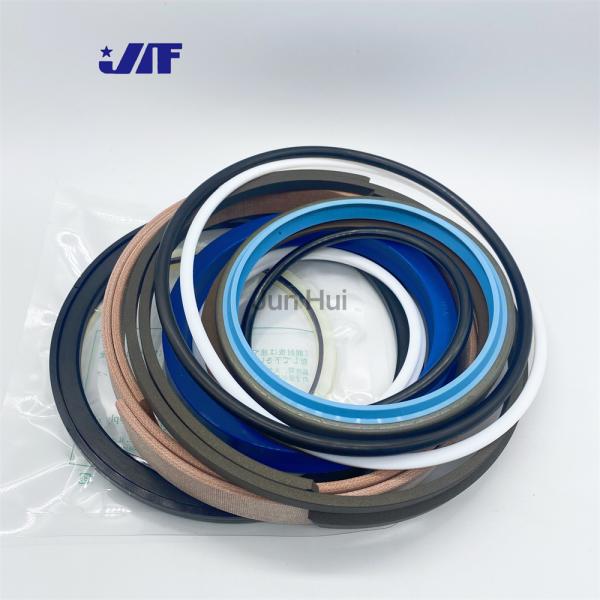

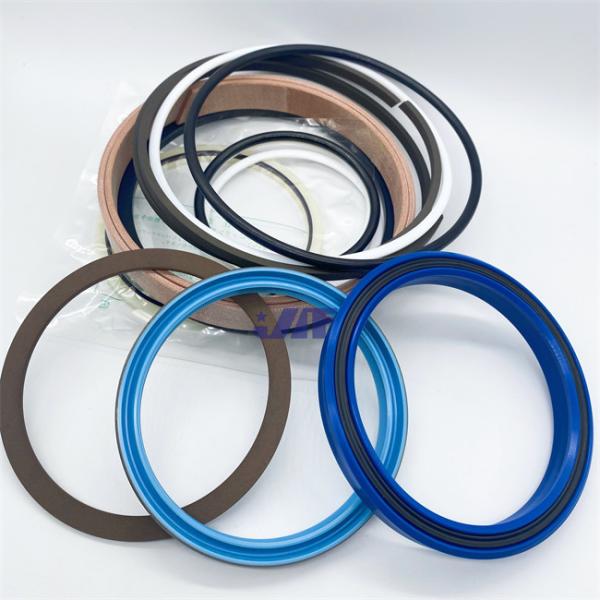

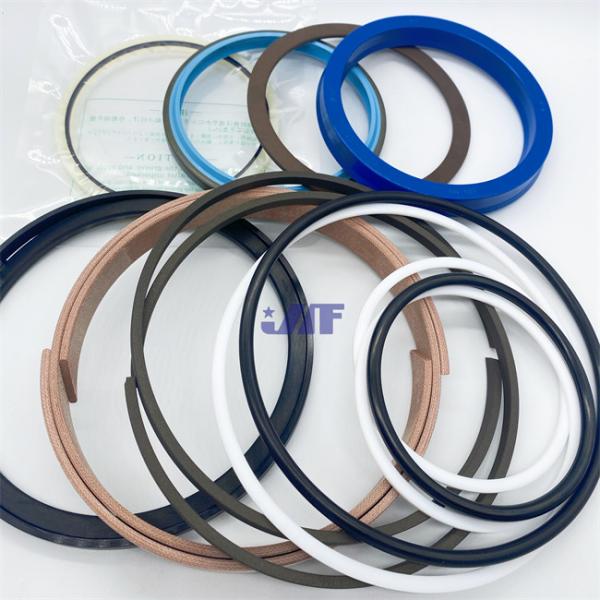

Boom Arm Bucket Seal Kit EC360 SA8148 - 16130 SA8148 - 16140 SA8148 - 16150
Boom Arm Bucket Seal Kit EC360 SA8148 - 16130 SA8148 - 16140 SA8148 - 16150
Boom Arm Bucket Seal Kit EC360 SA8148 - 16130 SA8148 - 16140 SA8148 - 16150
Boom Arm Bucket Seal Kit EC360 SA8148 - 16130 SA8148 - 16140 SA8148 - 16150
Boom Arm Bucket Seal Kit EC360 SA8148 - 16130 SA8148 - 16140 SA8148 - 16150
Boom Arm Bucket Seal Kit EC360 SA8148 - 16130 SA8148 - 16140 SA8148 - 16150
Specifications
Model Number :
EC360 EC380
Place of Origin :
China
Price :
Negotiable
Payment Terms :
T/T, Western Union,
Supply Ability :
500Set
Delivery Time :
3-7 Work Days
Packaging Details :
Plastic bag and Carton
Part Name :
Boom Arm Bucket Seal Kit
Application :
Excavator
Material :
NBR , PTFE + Bronze , Polyurethane , Resin Fabric
Performance :
Wear Resistance, High Temperature Resistance, High Pressure Resistance
Temperature :
WR -40° ~ +120°
Pressure :
0~200MPa
Color :
Mixed Color
Size :
Standard Size
Description

Boom Arm Bucket Seal Kit EC360 SA8148 - 16130 SA8148 - 16140 SA8148 - 16150

Specification

Part Name Hydraulic Cylinder Boom Arm Bucket Seal Kit
Part Number SA8148 - 16130 SA8148 - 16140 SA8148 - 16150
Application Excavator
Feature High Quality
Material NBR , PTFE + Bronze , Polyurethane , Resin Fabric
Quality 100% Test
Size Standard Size
Color Mixed Color
Condition New
Reference Weight 1KG

Boom related parts

Boom Arm Bucket Seal Kit EC360 SA8148 - 16130 SA8148 - 16140 SA8148 - 16150

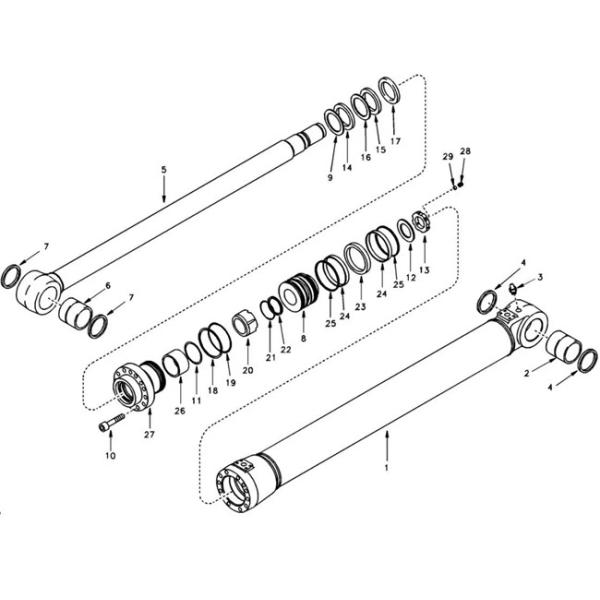

Pos. Part Number Qty Part Name
1. VOE14501224 1 Tube assembly
2. SA1146-04960 1 Bushing
3. SA9481-11003 1 Nipple
4. SA9561-10010 2 Seal

5.

 VOE14501225 1 Rod
6. SA1146-04450 1 Bushing
7. SA9561-11010 2 Seal
8. SA1146-06170 1 Piston
9. SA9557-09500 1 Retaining Ring
10. SA9016-21618 17 Bolt
11. SA9556-10500 1 Retaining Ring
12. SA1046-03961 1 Washer
13. SA1146-05880 1 Lock Nut
14. SA9564-21050 SA1146-08290 1 Seal
15. SA9563-21050 SA1146-08370 1 Seal
16. SA9567-21050 1 Back-up Ring
17. SA1146-08010 SA1146-08180 1 Seal
18. SA9566-31500 1 Back-up Ring
19. VOE990652 1 O-Ring
20. SA1146-03170 1 Cushion
21. SA9511-12090 1 O-Ring
22. VOE14880846 1 Back-up Ring
23. SA9562-11600 1 Piston Seal
24. SA9565-11600 2 Wear Ring
25. SA9568-01600 2 Seal
26. SA9612-10540 1 Bearing
27. SA1146-06140 1 Head
28. SA9023-10802 1 Set Screw
29. SA1146-06870 1 Pad
VOE14589842 SA8148-16130 1 Sealing Kit
SA1146-04980 SA1146-07440 1 Boom Cylinder

Boom Arm Bucket Seal Kit EC360 SA8148 - 16130 SA8148 - 16140 SA8148 - 16150 Boom Arm Bucket Seal Kit EC360 SA8148 - 16130 SA8148 - 16140 SA8148 - 16150

Our advantages

1. Substantial product information , We have detailed parameters , so send us the right model and correct number , we can supply the exact product .
2. Salesperson with professional knowledge and abundant experience has been developing , so we have wealthy experience .
3. Strict and integral company system We will try our best to obey customer’s delivery time . Before delivering your products , we must check the part number or pictures of the products carefully to let our customers receive high-quality and right-quantity goods .
4. Good service attitude If you have any questions about the product , after knowing the situation , we will help the customer to solve the problem at the first time . As long as customers’ requirements are reasonable , we will endeavour to satisfy them .
