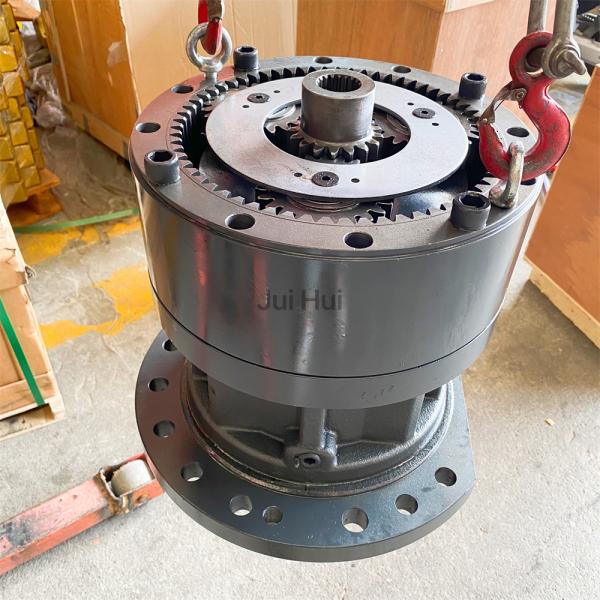

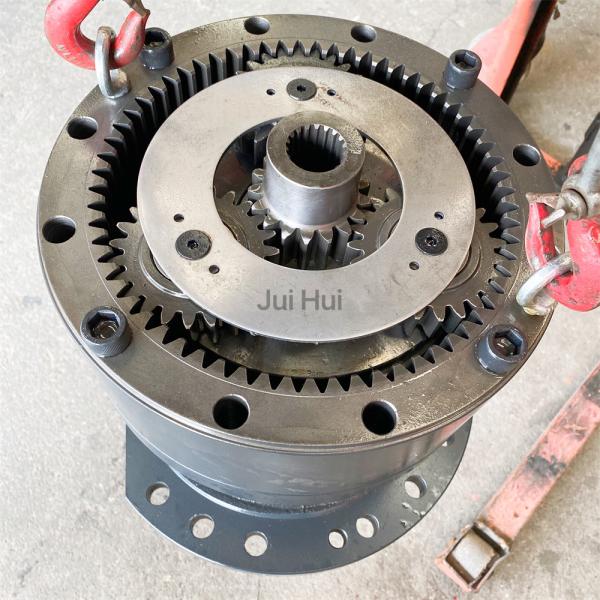

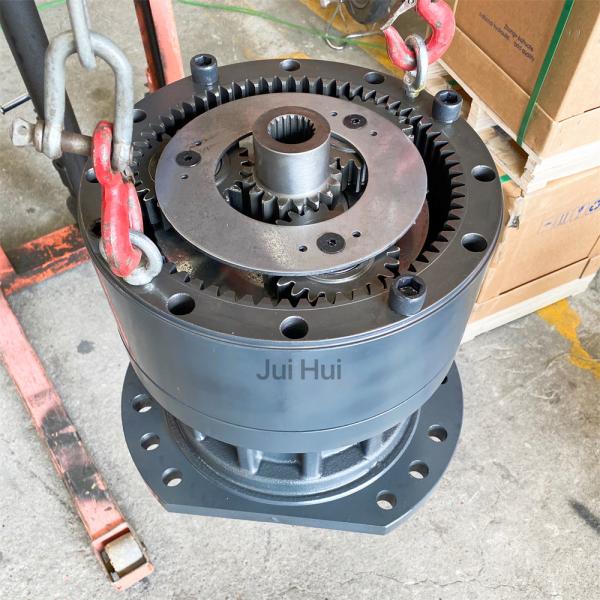

VOE14541030 Excavator Gear Parts , EC460 EC480 Rotary Head Gearbox
VOE14541030 Excavator Gear Parts , EC460 EC480 Rotary Head Gearbox
VOE14541030 Excavator Gear Parts , EC460 EC480 Rotary Head Gearbox
VOE14541030 Excavator Gear Parts , EC460 EC480 Rotary Head Gearbox
VOE14541030 Excavator Gear Parts , EC460 EC480 Rotary Head Gearbox
VOE14541030 Excavator Gear Parts , EC460 EC480 Rotary Head Gearbox
Specifications
Price :
Negotiable
Payment Terms :
L/C, T/T,
Model Number :
EC480D EC460B VOE14541030
Place of Origin :
China
Delivery Time :
3-7 Work Days
Packaging Details :
Wooden s
Part Number :
VOE14541030
Product Name :
Rotating Gearbox
Application :
Crawler Excavator
Process :
Heat Treatment
Material :
Casting
Colour :
Grey
Condition :
100% New
Reference Weight :
120KG
Description

EC460 EC480 Excavator Gear Parts VOE14541030 Rotary Reducer

Specification

Part Number VOE14541030
Product Name Rotating Gearbox
Application Crawler Excavator
Process Heat Treatment
Material Casting
Colour Grey
Condition 100% New
Reference Weight 120KG
Size Standard
Availability In Stock

Application

EC460B EC460C EC460CHR EC480D EC480DHR EC480E EC480EHR PL4608 PL4611 PL4809D PL4809E .Heavy

The slewing drive includes the following gear components: sun gear, planetary gears, needle bearings, roller bearings, brackets, pinion shafts, pinion gears, oil seals, ring gears, and slewing shells.

VOE14541030 Slewing Gear Box Related Parts

Pos. Part Number Qty Part Name
1 VOE14529015 [1] Valve
2 VOE14540404 [1] Shaft
3 VOE14540405 [1] Collar
4 VOE14509281 [1] Cover
5 VOE990596 [1] O-ring
6 VOE14508911 [1] Seal
7 VOE993025 [10] Hexagon screw
8 VOE14640027 [1] Roller bearing
9 VOE14558674 [1] Roller bearing
10 SA9541-01090 [1] Retaining ring
11 SA7118-30510 [1]
12 SA7118-30350 [1] Ring gear
13 VOE950677 [4] Pin
14 SA984363 [12] Bolt
15 SA7118-30370 [1] Plate
16 SA7118-30380 [1] Thrust ring
17 SA7118-30390 [1] Gear
18 SA7118-30480 [1] Washer
19 SA7118-30490 [1] Sun gear
20 SA7118-34510 [1] Adapter
21 SA7118-30200 [1] Planet carrier
22 SA7118-30230 [3] Pin
23 SA7118-30260 [6] Washer
24 SA9325-08010 [3] Spring pin
25 SA7118-30220 [3] Planetary gear
26 VOE14528725 [1] Planet carrier
27 VOE14528725 [1] Planet carrier
28 SA7118-30430 [3] Pin
29 VOE14528726 [3] Pin
30 VOE14550879 [3] Needle bearing
31 VOE14550879 [3] Needle bearing
32 SA7118-30450 [3] Washer
33 SA7118-30460 [3] Washer
34 SA9541-01042 [3] Retaining ring
35 SA9325-08010 [3] Spring pin
36 SA7118-30410 [1] Planet carrier
37 SA7118-30420 [3] Planetary gear
38 VOE14526214 [1] Overhaul kit
