EX120-5 Excavator Hydraulic Parts , Hydraulic Plunger Pump 1020401
EX120-5 Excavator Hydraulic Parts , Hydraulic Plunger Pump 1020401
EX120-5 Excavator Hydraulic Parts , Hydraulic Plunger Pump 1020401
EX120-5 Excavator Hydraulic Parts , Hydraulic Plunger Pump 1020401
EX120-5 Excavator Hydraulic Parts , Hydraulic Plunger Pump 1020401
EX120-5 Excavator Hydraulic Parts , Hydraulic Plunger Pump 1020401
EX120-5 Excavator Hydraulic Parts , Hydraulic Plunger Pump 1020401
EX120-5 Excavator Hydraulic Parts , Hydraulic Plunger Pump 1020401
Specifications
Model Number :
EX100 - 5 EX120 - 5
Place of Origin :
China
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100
Delivery Time :
3-7Work Days
Packaging Details :
Carton
Applicable :
Excavator
Type :
Plunger Pump
Material :
Cast iron
Size :
Standard
Feature :
High Pressure & Long Life,High Quality
Reference Weight :
16.9KG
Condition :
100%new
Availability :
In Stock
Description

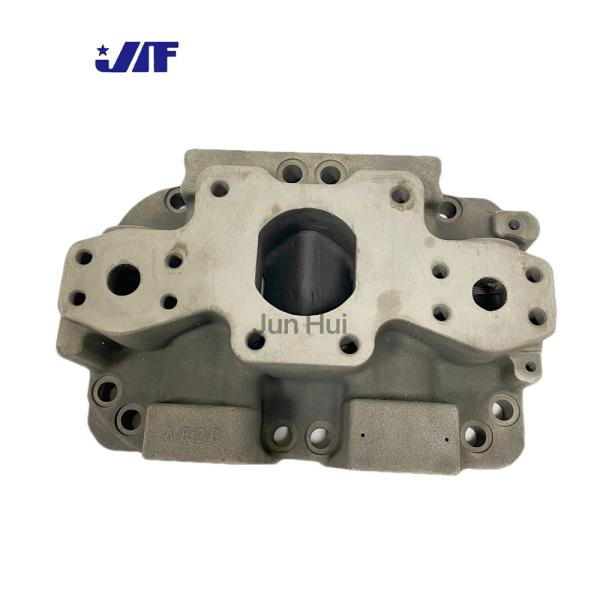

EX120 - 5 Excavator 1020401 Head Hydraulic Parts Hydraulic Pump Spare Parts


Specification

Product Name Head Cover
Part Number 1020401
Applicable Excavator
Colour Reference Picture
Material Cast iron
Size Standard
weight 16.9KG
Performance High Pressure & Long Life,High Quality
Condition 100% New

Description

Head Cover Servo Piston Feed Back Lever
Valve Plate Servo Piston Pin Pilot Pump
Cylinder Block Ball Guide Lock Nut
Shoe Plate Spacer Cradle
Piston Shoe Center Pin Pin Of Link
Swash Retainer Case
Swash Plate Thrust Bearing Separation Plate
Drive Shaft Coil Spring Friction Plate
Set Plate Regulaton Socket Bolt



Our advantages

1. Substantial product information , We have detailed parameters , so send us the right model and correct number , we can supply the exact product .
2. Salesperson with professional knowledge and abundant experience has been developing , so we have wealthy experience .
3. Strict and integral company system We will try our best to obey customer’s delivery time . Before delivering your products , we must check the part number or pictures of the products carefully to let our customers receive high-quality and right-quantity goods .
4. Good service attitude If you have any questions about the product , after knowing the situation , we will help the customer to solve the problem at the first time . As long as customers’ requirements are reasonable , we will endeavour to satisfy them .

More

Part Number Quantity Part number name
1 1020513 1 Casing,Pump
2 2036963 1 Disc,Driving
3 2036965 1 Disc,Driving
4 4339254 2 Brg,Rol
5 4348299 2 Ring
6 4338325 2 Brg,Rol
7 4180790 2 Nut,Brg
8 4331993 1 Ring,Thrust
9 4340358 2 Seal,Oil
10 4086775 2 Ring,Retaining
11 4233165 2 Plug
12 957366 2 O-Ring
13 9742464 14 Piston
14 4339296 2 Shaft,Center
15 4198956 2 Pin
16 4180786 2 Spring,compres
17 2036958 2 Rotor
18 2036441 1 Valve
19 2037013 1 Valve
20 4179179 4 Pin
21 3075855 2 Link
22 9724756 4 Lever
23 4179177 4 Pin
24 4179176 2 Pin
25 4146370 12 Ring,Retaining
26 4200227 2 Pin
27 1020401 1 Head
28 3068226 2 Piston,Servo
29 4330909 2 Pin
30 4179838 2 Screw,Set
31 4355081 2 O-Ring
32 4330951 2 Stopper
33 4355080 2 O-Ring
34 4330950 2 Stopper
35

4180349

 20 O-Ring
36 M340825 16 Bolt,Socket
37 4514388 16 Wasger,Spring
38 3071500 1 Ring,Back-up
39 4099290 2 Pin,Spring
40 4345061 1 O-Ring
41 M341245 10 Bolt,Socket
42 M341290 2 Bolt,Socket
43 4355012 2 Sensor,Pres
44 4365826 1 O-Ring
45 9134110 2 Plug
46 957366 1 O-Ring
47 9151414 2 Regulator

EX120-5 Excavator Hydraulic Parts , Hydraulic Plunger Pump 1020401
