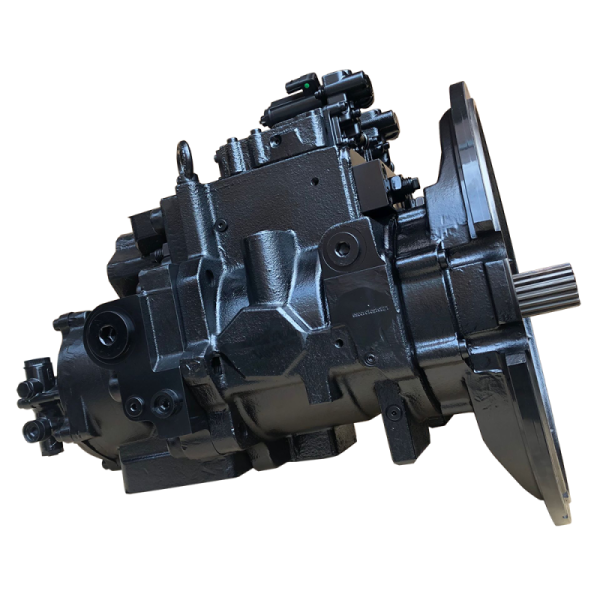

SK480 SK480-8 SK480LC Kobelco Excavator Hydraulic Pump K5V200DPH Piston Pump LS10V00016F1
SK480 SK480-8 SK480LC Kobelco Excavator Hydraulic Pump K5V200DPH Piston Pump LS10V00016F1
SK480 SK480-8 SK480LC Kobelco Excavator Hydraulic Pump K5V200DPH Piston Pump LS10V00016F1
SK480 SK480-8 SK480LC Kobelco Excavator Hydraulic Pump K5V200DPH Piston Pump LS10V00016F1
SK480 SK480-8 SK480LC Kobelco Excavator Hydraulic Pump K5V200DPH Piston Pump LS10V00016F1
SK480 SK480-8 SK480LC Kobelco Excavator Hydraulic Pump K5V200DPH Piston Pump LS10V00016F1
Specifications
Brand Name :
Belparts
Model Number :
SK480 SK480-8 SK480LC
Certifiion :
OEM
Place of Origin :
Made in China
MOQ :
1 piece
Price :
Negotiable price
Payment Terms :
T/T, Paypal and Trade Assurance
Supply Ability :
1000pcs
Delivery Time :
1-7days
Packaging Details :
Wooden packing
Apply to :
Crawler Excavator
Excavator Model :
SK480 SK480-8 SK480LC
Product name :
Excavator hydraulic main pump
Brand :
Belparts
Weight :
200KG
Packing :
67*87*89
pump Number :
9191165
Description

SK480 SK480-8 SK480LC Kobelco Excavator hydraulic pump main pump piston pump

Appliion

Kobelco crawler Excavator

Part name

hydraulic main pump

Material

Steel

Model

 SK480 SK480-8 SK480LC

Part number

9191165 HPVO118HW

Payment term

As require

Delivery

3-7 working days

Brand

made in china or orginal new

Pump Type Typical Appliion Models
　 　
K3V112DT SK200/210/230/250/330-6
K3V112DTP SK200/210/230/250/330-6E, SK200/210LC/250/260LC-8, SK330NLC-6E
K5V140DTP SK350LC-8
　 　
K3V63DT DH120W,DH130,DH130LC,DH130W,DH130-2, DH130LC-V, DH150LC-7
K3V112DT DH200LC,DH220LC, DH215/220/225/258-7
K3V112DTP DH215/225-9, DH210/215/220/225-9E
K3V140DT DH280LC
K5V140DT DX300LC, DH300LC-7
　 　
K3V63DT R130, R130LC, R120W
K3V112DT R200, R200LC, R210LC-7, R210-3
K3V140DT R280LC, R290LC, R290LC-3
　 　
K3V63DT MX132W, SE130W, MX135W, SE130LC-2/3
K3V112DT

MX202W, MX222, MX222LC, MX255LC, SE210/-2, SE200LC, EC210B,

EC210C, SE240LC-3
EC200B, EC240B
K3V140DT SE280LC, MX292LC, EC290B
K3V180DT EC360B
　 　
K3V63DT S130LC-2, S130LC-3, S120W, S130W, S130-V
K3V112DT S220LC, S220LC-3, S220LC-V, SH200, SH200LC, SH220LC
K3V112DTP SH210LC-5, SH240
K3V140DT S28OLC-3, S280-V
　 　
K3V112DT HD700, HD700-7, HD700V-2/3,
K3V140DT HD1120, HD1220
　 　
K3V112DTP CX210B, CX240B
　 　
K3V112DTP SY200 C8, SY215 C8
K5V140DTP SY235 C8
　 　
K3V63DT XE135B, XE150W, XE150D
K3V112DT XE215C, XE215CLL, XE215HB
K3V140DT XE260CLL, XE265C
　 　
K3V112DT SWE210, SWE230LC, SWE230E
K3V140DT SWE330LC
K3V180DT SWE360E
　 　
K3V63DT CLG915D
K3V112DT CLG920D, CLG922D, CLG922E, CLG923D, CLG925D, CLG925LL
K3V140DT CLG933D

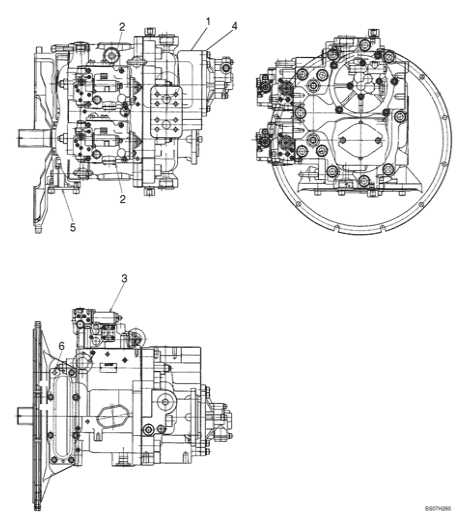

Parts on group (SK485-8) - ACERA MARK 8 EXCAVATOR - TIER 3 (NA) YS07U0701 - (8/07-12/12):

Pos. Part No Qty Parts name Comments
. . LS10V00016F1 [1] PUMP KOB Hydraulic Pump Assembly Superseded by part number: LS10V00016F6
. . LS10V00016F1R [1] REMAN-HYD PUMP BRR For SK485-8 Acera Mark 8
. . LS10V00016F1C [1] CORE-HYDRAULIC PUMP BRR Return Number
1. LS10V00017F1 [1] HYDRAULIC PUMP SM Hydraulic Pump -- See Figure 08-32-00 Superseded by part number: LS10V00014F2
2. LS10V01006F1 [2] SPEED GOVERNOR SM Regulator -- See Figure 08-33 Superseded by part number: LS10V01006F4
3. YN35V00052F1 [2] VALVE KOB Solenoid -- See Figure 08-34 Superseded by part number: YN35V00054F1
4. LS10V00018F1 [1] PUMP SM Gear Pump -- See Figure 08-35
5. LS10V00016S263 [1] COVER KOB Cover
6. ZS23C12020 [8] CAPSCREW,Hex Socket Head, M12 x 20mm KOB SCREW M12x1.75x20mm

FAQ

(1). Are you a manufacturer or trading company?

We are the professional manufacturer of the Excavator Hydraulic parts,

(2). What’s the accessory for each Outdoor Digital Signage?

Accessory such as : blower or pump, repair kits (including the PVC materials, glue, Etc.) are included;

(3). Your blowers and pumps meet CE/UL requirements?

(4). Yes, Our blowers/pumps have the certifies of CE/UL.

(5). Can we change the size and color for the inflatables we desire ?

Yes, the size and color can be customized according to your request.
