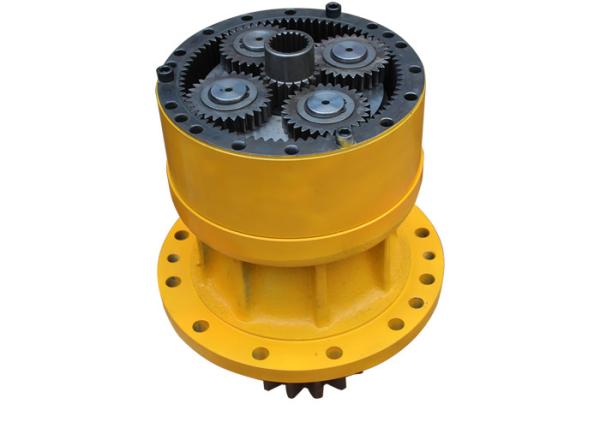

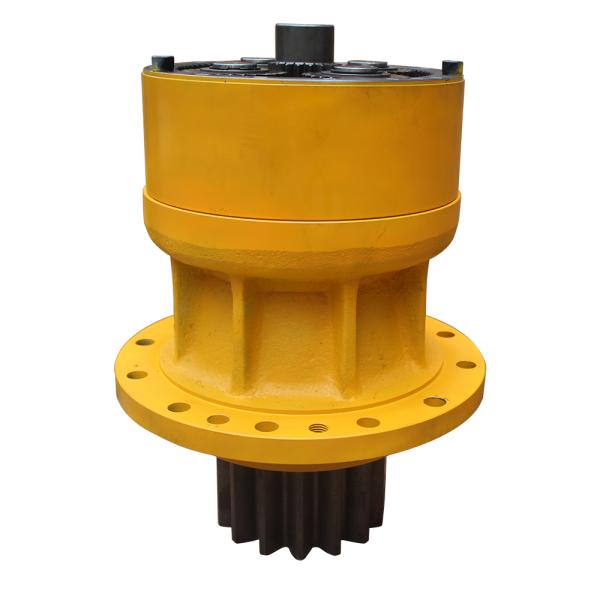

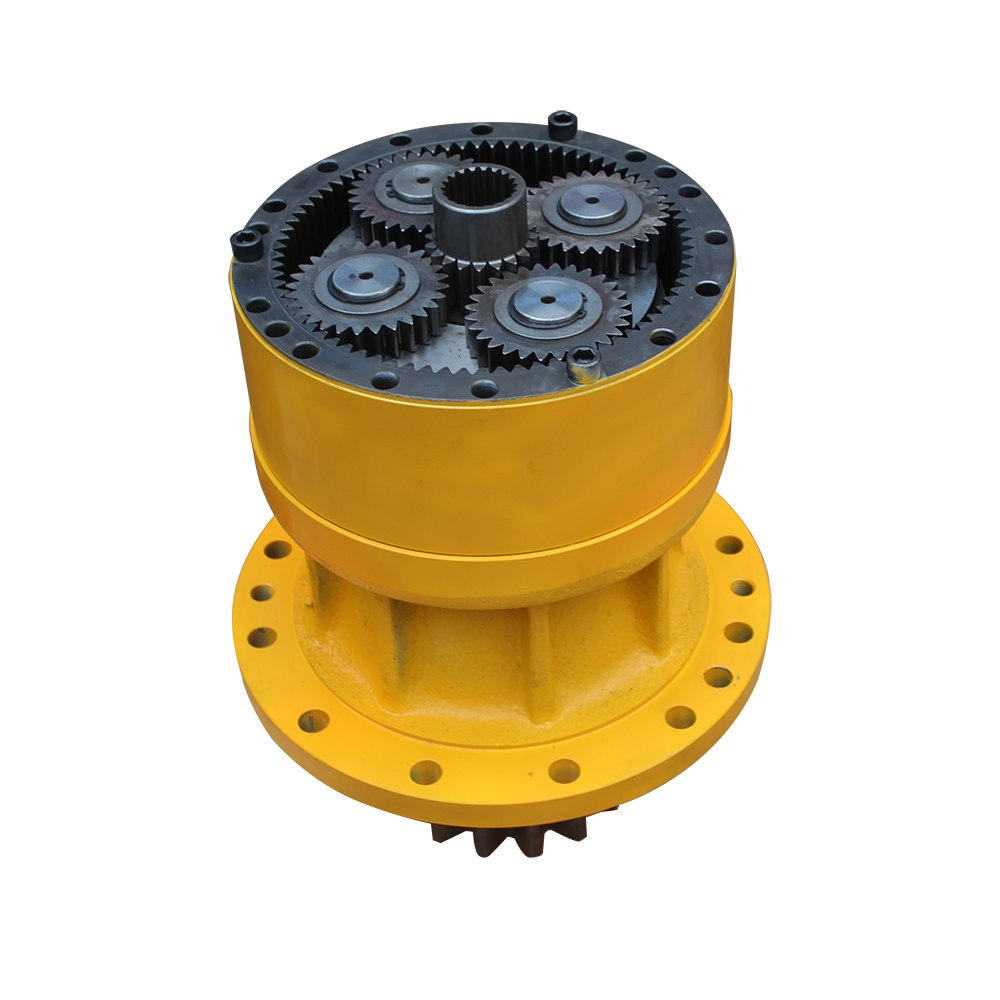

31NA-10150 Excavator Swing reduction R360LC-7A swing gearbox
Product Description
Appliion | Excavator |
Part name | Belparts swing motor |
Material | Steel |
Model | R360LC-7A |
MOQ | 1PC |
Payment term | T/T, Paypal, Trade assurance, or as required |
Delivery | 2 days after the payment received |
Shipment | by sea, by air, by express, or as required |

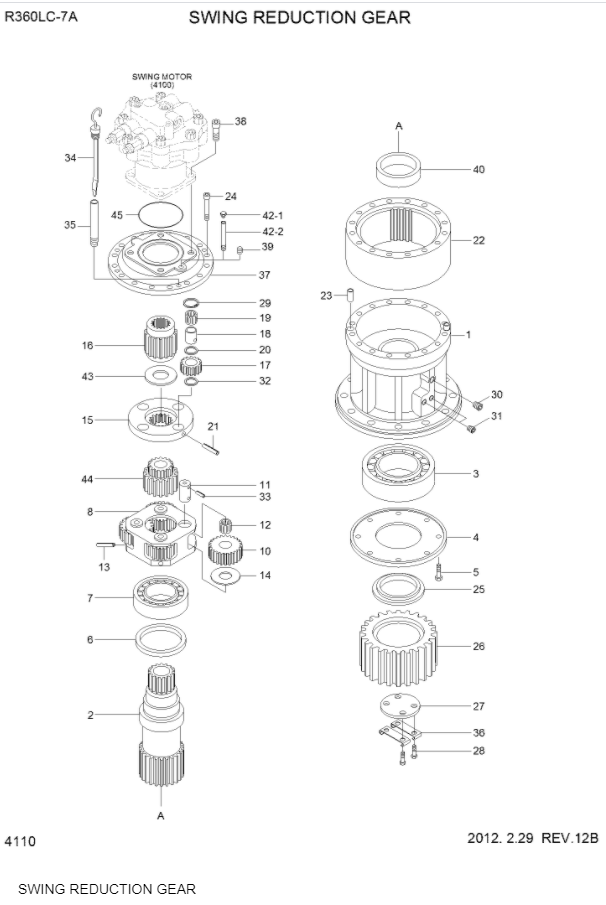

List of spare parts
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
*-2. | 31NA-10150 | [1] | SWING REDUCTION GEAR | |
*-2. | 31NA-10151 | [1] | SWING REDUCTION GEAR | |
*-2. | 31NA-10152 | [1] | REDUCTION GEAR | |
1. | XKAQ-00144 | [1] | CASING | |
1. | XKAQ-00773 | [1] | CASING | |
2. | XKAQ-00300 | [1] | SHAFT-DRIVE | |
2. | XKAQ-00739 | [1] | SHAFT-DRIVE | |
3. | XKAQ-00146 | [1] | BEARING-ROLLER | |
4. | XKAQ-00147 | [1] | PLATE-COVER | |
4. | XKAQ-00747 | [1] | PLATE-COVER | |
5. | XKAQ-00148 | [8] | BOLT-HEX | |
6. | XKAQ-00149 | [1] | SEAL-OIL | |
7. | XKAQ-00027 | [1] | BEARING-ROLLER | |
*. | XKAQ-00264 | [1] | CARRIER ASSY-NO 2 | |
8. | XKAQ-00251 | [1] | CARRIER 2 | |
8. | XKAQ-00740 | [1] | CARRIER 2 | |
10. | XKAQ-00776 | [4] | GEAR-PLANET 2 | |
10. | XKAQ-00741 | [4] | GEAR-PLANETARY 2 | |
11. | XKAQ-00254 | [4] | PIN 2 | |
N12. | @ | [4] | BUSHING | |
N33. | @ | [4] | PIN-SPRING | |
13. | XKAQ-00050 | [4] | PIN-SPRING | |
14. | XKAQ-00156 | [4] | WASHER-THRUST | |
14. | XKAQ-00411 | [4] | WASHER | |
*. | XKAQ-00262 | [1] | CARRIER ASSY-NO 1 | |
15. | XKAQ-00325 | [1] | CARRIER 1 | |
15. | XKAQ-00743 | [1] | CARRIER 1 | |
16. | XKAQ-00257 | [1] | GEAR-SUN 1 | |
16. | XKAQ-00746 | [4] | GEAR-SUN 1 | |
17. | XKAQ-00777 | [4] | GEAR-PLANET 1 | |
17. | XKAQ-00774 | [4] | GEAR-PLANET 1 | |
18. | XKAQ-00019 | [4] | PIN 1 | |
18. | XKAQ-00415 | [4] | PIN 1 | |
19. | XKAQ-00030 | [4] | CAGE-NEEDLE | |
20. | XKAQ-00040 | [4] | PLATE-SIDE 2 | |
20. | XKAQ-00416 | [4] | PLATE 2-SIDE | |
21. | XKAQ-00048 | [4] | PIN-SPRING | |
22. | XKAQ-00258 | [1] | GEAR-RING | |
22. | XKAQ-00420 | [1] | GEAR-RING | |
23. | XKAQ-00072 | [2] | PIN-KNOCK | |
24. | XKAQ-00259 | [16] | BOLT-SOCKET | |
25. | XKAQ-00162 | [1] | SPACER | |
25. | XKAQ-00775 | [1] | SPACER | |
26. | XKAQ-00163 | [1] | GEAR-PINION | |
26. | XKAQ-00749 | [1] | GEAR-PINION | |
27. | XKAQ-00299 | [1] | PLATE-LOCK | |
28. | XKAQ-00042 | [4] | BOLT-HEX | |
29. | XKAQ-00041 | [4] | RING-STOP | |
30. | XKAQ-00273 | [1] | PLUG | |
31. | XKAQ-00274 | [2] | PLUG | |
32. | XKAQ-00057 | [4] | PLATE-SIDE 1 | |
32. | XKAQ-00417 | [4] | PLATE 1-SIDE | |
33. | XKAQ-00165 | [4] | PIN-SPRING | |
34. | XKAQ-00166 | [1] | BAR-GAUGE | |
35. | XKAQ-00167 | [1] | PIPE-GAUGE | |
36. | XKAQ-00292 | [2] | WASHER-LOCK | |
37. | XKAQ-00169 | [1] | COVER | |
37. | XKAQ-00750 | [1] | COVER | |
38. | XKAQ-00170 | [4] | BOLT-SOCKET | |
39. | XKAQ-00155 | [1] | PLUG-SOCKET | |
40. | XKAQ-00171 | [1] | RING-SPACER | |
42. | XKAQ-00143 | [1] | POST-AIR BREATHER | |
42. | XKAQ-00798 | [1] | AIR BREATHER ASSY | |
42-1. | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
42-2. | XKAQ-00799 | [1] | POST AIR BREATHER | |
43. | XKAQ-00260 | [1] | RING-THRUST | |
43. | XKAQ-00422 | [1] | RING-THRUST | |
44. | XKAQ-00252 | [1] | GEAR-SUN 2 | |
44. | XKAQ-00745 | [1] | GEAR-SUN 2 | |
45. | XKAQ-00751 | [1] | O-RING | |
N. | @ | [1] | NOT SUPPLIED PARTS |
