Specifications
Brand Name :
Belparts
Model Number :
XN20
Certifiion :
OEM
Place of Origin :
Made in china
MOQ :
1PCS
Price :
Negotiated price
Payment Terms :
T/T, trade assurance,PayPal
Supply Ability :
1000PCS
Delivery Time :
1~7 days
Packaging Details :
Wooden case
Model :
XN20
Weight :
1900Kg
Warranty :
1 Year or Working 1200 hours
Color :
Orange/Red/Green
Quality :
High quality
Condition :
100% New
Working device form :
backhoe
Rated power :
10.3kw/2200/r/min / 11.2 kw
Description

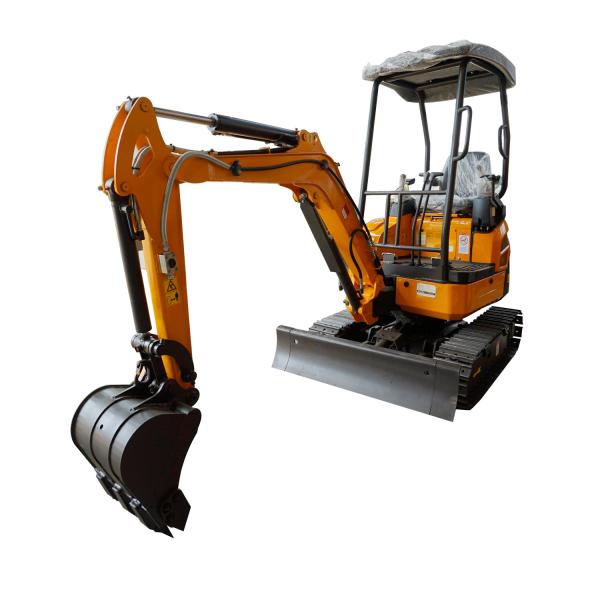

Excavator XN20 2.0 tons hydraulic mini high quality wheeled excavator


Product Description


XN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/Min

Machine Weight 1900 Kg
Bucket Capacity 0.048 m³
Engine Japanese YANMAR 3TNV70 / 3TNV74
Rotated power 10 kw/11.2kw/ 2200r/min
Track type Steel track
MAIN DEMENSIONS
Overall dimension( LxWxH)

3400 x (990-1240) x 2350mm

Total length of track on land 1590 mm
Platform ground clearance 473 mm
Platform back turning radius 740 mm
Chassis width 990 mm(retract)/1240mm(extended)
Track width 230 mm
OPERATING RANGE
Max. Digging depth 2150 mm
Max. Vertical digging depth 1740 mm
Max. Digging height 3275 mm
Max. Dumping height 2310 mm
Max. Digging radius on ground 3470mm
Min. Rotation radius 1440 mm
XN20
SPECIFIION Unit
Operating Weight 1880 kg
bucket capacity 0.045m³
Working device form backhoe

engine

Model Yanmar 3TNV70/ 3TNV74F
Displacement 0.854L
Rated power 10.3kw/2200/r/min / 11.2 kw
Maximum torque 51.9N.m/1600 r/min

Speed/ Digging force

Max.travel speed(high/low)

3.4 / 1.9 km/h

swing speed 10.5 rpm
Max. Gradeability 30°(58%)
Bucket digging force 13.5KN
Bucket arm digging force 10.1 KN
Theoretical Maximum traction 17.5 KN
Ground specific pressure 32.8KPA
Track material Steel track
Type of track tension device Butter oil cylinder

Hydraulic and liquid capacity

Pump type Plunger pump
Working pressure 22 Mpa
Flow rate 2x17+14 L/min
Hydraulic oil tank capacity 15.3L
Engine fuel tank capacity 2.8(1.3)L
Fuel tank capacity 19 L

Main dimension Unit (mm)
a Wheelbase 1230
b Total length of track 1590
c Platform ground clearance 473
d Counterweight turning radius 740
e Chassis width 990(1240)
f Track width 230
g Track height 360
h Length 3400
i Height (From seat to ground) 1660
j Total height 2380
k boom swing - left 390
I boom swing - right 510

Operating range Unit(mm)
A Max. Digging radius on ground 3610 mm
B Max. Digging radius 3700 mm
C Max. Digging depth 2150 mm
D Max. Digging height 3275 mm
E Max. Dumping height 2310 mm
F Max. Vertical digging depth 1740 mm
G Min. Rotation radius 1580 mm
H Max. Upgrade height of bulldozer blade 275 mm
I Max. Digging depth of bulldozer blade 180 mm

Company Information


GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.

XN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/Min


Factory


XN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/Min


Exhibition Strength


In the past few years, in order to sell our products all over the world, we have participated in many exhibitions, such as Beijing Construction Machinery Exhibition in 2017, Shanghai Bauma Exhibition in 2018, German Exhibition in 2019, and we will continue to participate in various exhibitions in the future to let our products go to the world.

XN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/Min

Our advantages


1.Strong part number database.
If you can provide the right model and part number, we can supply the right product.
2.Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
3.Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
4.Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
5.Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.

XN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/Min


Delivery


XN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/Min

Customer Review


XN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/MinXN20 2 Ton Mini Wheeled Excavator 10kw 11.2kw 2200r/Min
FAQ:


1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6. What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
