Specifications
Brand Name :
Belparts
Model Number :
DX480 DX520
Place of Origin :
Guangdong, China
Price :
negotiation
Supply Ability :
1000 Piece/Pieces per Month
Packaging Details :
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes
Product name :
swing gearbox
Model :
DX480 DX520
Weight :
200KG
Brand :
Doosan
Package :
53*53*68
Part number :
130426-00005A
Description

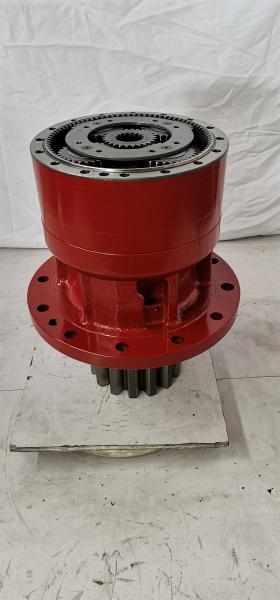

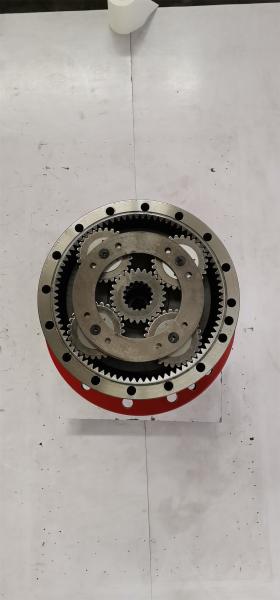

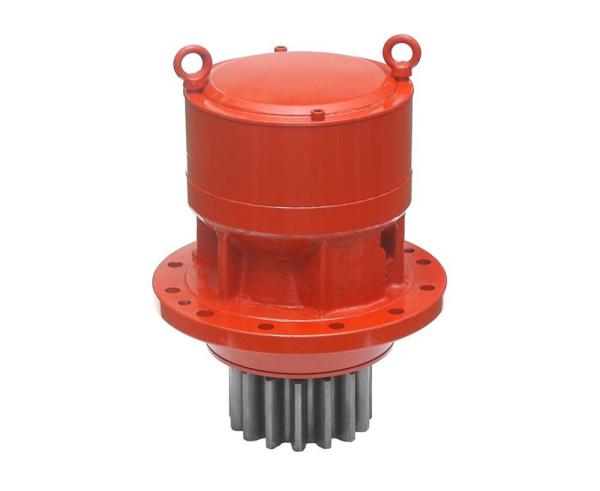

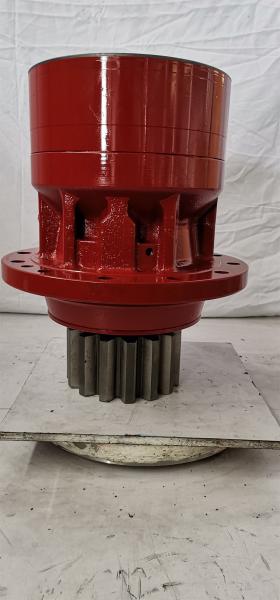

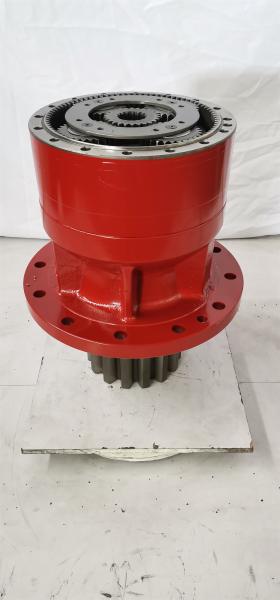

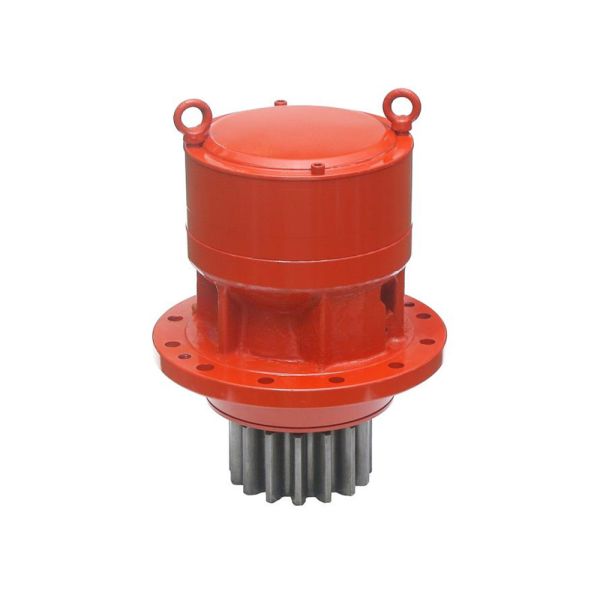

Earth-moving machinery excavator DX480 DX520 swing gearbox reduction 130426-00005A swing gearbox

Product parameter:

Product name

swing gearbox

Weight

200KG

Model:

DX480 DX520

Part number:

130426-00005A

Brand:

Doosan

Package:

53*53*68

Delivery time:

Within 2 days after receiving the payment

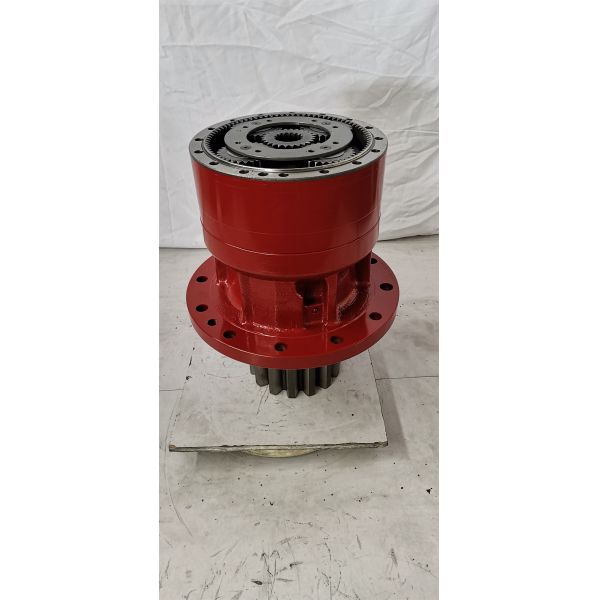

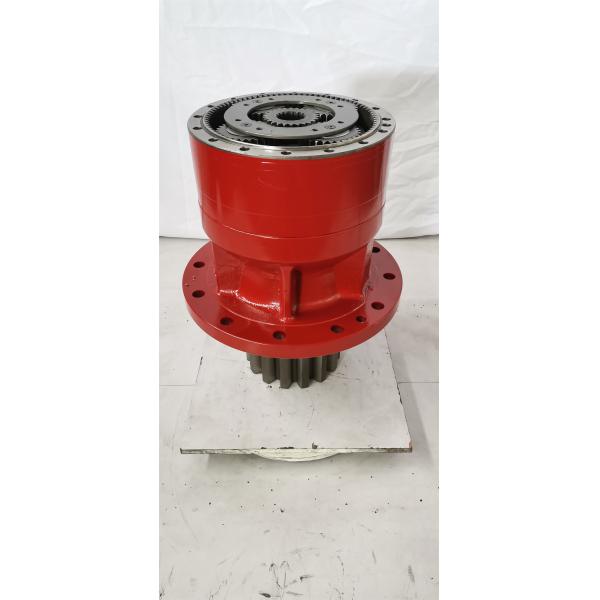

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing GearboxEarth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox

Earth Moving Machinery Excavator DX480 DX520 Swing Gearbox Reduction 130426-00005A Swing Gearbox

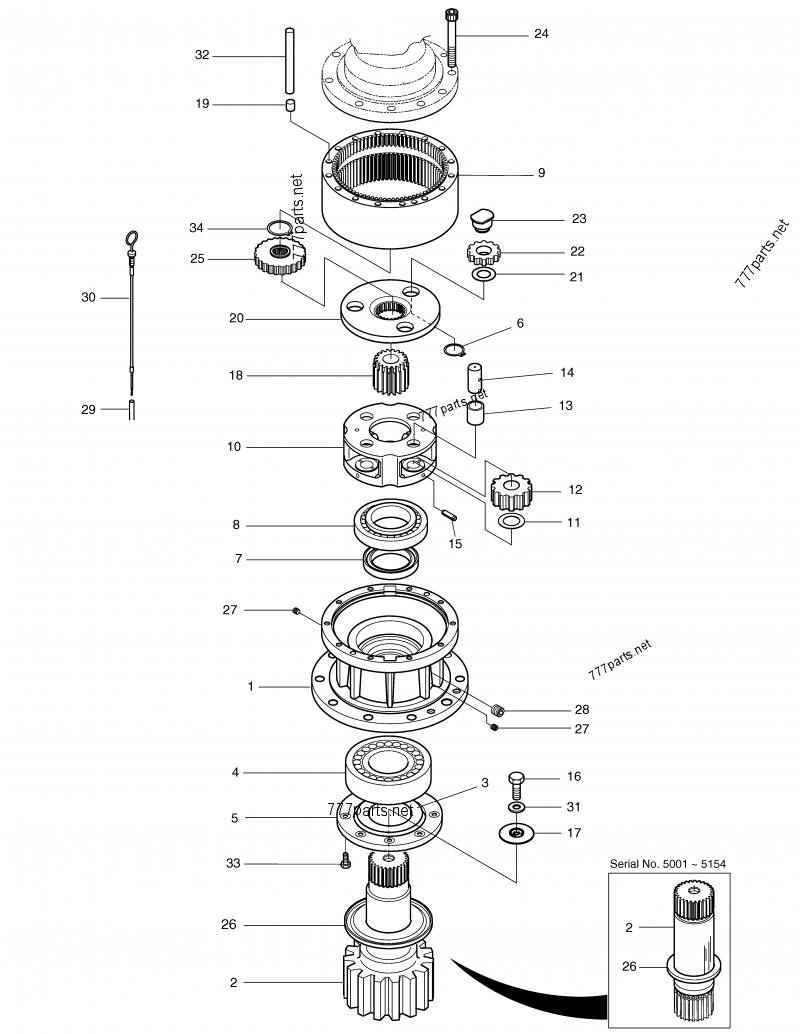

List of spare parts

# Part No Part Name Comment Qty. Price request
- K1000350 BOX, SWING REDUCTION GEAR 160 kg 2
- K1033589 BOX, SWING REDUCTION GEAR 157 kg 2
1 2402-6003C CASING 37 kg 1
2 2405-1018C SHAFT, DRIVE 19 kg 1
2 K1033590 SHAFT, DRIVE 33 kg 1
3 2412-1040 RING, NILOS 1
4 2109-9033 ROLLER BEARING(=2109-9033P) 13 kg 1
5 2891-1421B PLATE, COVER 1 kg 1
6 S6500380 RING, RETAINING 3
7 2180-1254 SEAL, OIL 1
8 2109-1050 ROLLER BEARING( 2109-1050P) 3 kg 1
8 109-00174 CYLINDRICAL BEARING 3 kg 1
9 104-00051A GEAR, RING 21 kg 1
10 230-00061 CARRIER NO.2 11 kg 1
11 2114-1901A WASHER, THRUST NO.2 4
12 104-00050 GEAR, PLANET NO.2 2 kg 4
13 110-00219 BUSH NO.2 4
14 123-00437A PIN NO.2 1 kg 4
15 S5741341 PIN, SPRING 4
16 S0121061 BOLT, HEX.HD. 1
17 114-00548 WASHER, THRUST NO.3 1
18 104-00048 GEAR, SUN NO.2 2 kg 1
19 2705-1030 PIN, KNOCK 1 kg 4
20 230-00060A CARRIER NO.1 6 kg 1
21 114-00527 WASHER, THRUST NO.1 3
22 104-00049A GEAR, PLANET NO.1 1 kg 3
23 123-00435A PIN ASS`Y NO.1 1 kg 3
24 S2217471 BOLT, SOCKET M12X150 16
25 104-00047A GEAR, SUN NO.1 1 kg 1
26 2114-1914A SPACER 1
26 K1033591 SPACER 1
27 2181-1116D2 PLUG, RECHECK 2
28 2181-1116D4 PLUG, RECHECK 97123-04111 1
29 2140-1406 PIPE, LEVEL GAUGE 1
30 2119-1065 GAUGE, LEVEL 1
31 S5231090 WASHER, DOUBLE TAP 1
32 140-01374A PIPE 4
33 120-00144 BOLT , HEX. HD 8
34 S6500450 RING, SNAP 1
