Kobelco SK210-8 SK200-8 Excavator Swing Reduction Gearbox YN32W00019F1 YN32W00022F1
Kobelco SK210-8 SK200-8 Excavator Swing Reduction Gearbox YN32W00019F1 YN32W00022F1
Kobelco SK210-8 SK200-8 Excavator Swing Reduction Gearbox YN32W00019F1 YN32W00022F1
Kobelco SK210-8 SK200-8 Excavator Swing Reduction Gearbox YN32W00019F1 YN32W00022F1
Kobelco SK210-8 SK200-8 Excavator Swing Reduction Gearbox YN32W00019F1 YN32W00022F1
Kobelco SK210-8 SK200-8 Excavator Swing Reduction Gearbox YN32W00019F1 YN32W00022F1
Specifications
Brand Name :
Belparts
Model Number :
SK210-8
Place of Origin :
Made in China
MOQ :
1 piece
Price :
Negotiable Price
Payment Terms :
T/T, Paypal and Trade Assurance
Supply Ability :
1000pieces
Delivery Time :
1-7days
Packaging Details :
Wooden packing
Model Name :
SK210-8
Part Name :
YN32W00019
Material :
Steel
MOQ :
1PC
After-sales Services :
Online
Condition :
New
Description

Kobelco SK210-8 SK200-8 excavator swing reduction gearbox YN32W00019F1 YN32W00022F1

Appliion Excavator
Part name Belparts swing gearbox
part number

YN32W00019F1 YN32W00022F1
Model SK210-8 SK200-8
Brand kobelco
Payment term T/T, Paypal, Trade assurance, or as required
Delivery 2 days after the payment received
Shipment by sea, by air, by express, or as required

Maintenance & Repair Tips

  1. Regular Lubrication

    • Use high-viscosity gear oil (ISO VG 150 or higher).

    • Check oil levels monthly.

  2. Inspect Seals & Gaskets

    • Replace worn seals to prevent leaks.

  3. Monitor Hydraulic System

    • Ensure proper hydraulic pressure (check pump and valves).

  4. Brake Adjustment

    • Test brake function regularly.

  5. Gear & Bearing Inspection

    • Look for pitting, scoring, or abnormal wear.

  6. Avoid Overloading

    • Excessive loads accelerate wear.

Conclusion

The excavator swing gearbox is a vital component that ensures smooth and efficient rotation of the machine’s upper structure. Understanding its construction, working principle, and maintenance requirements helps extend its lifespan and prevent costly downtime.

By following proper lubrication practices, hydraulic system checks, and timely repairs, operators can maximize the performance and reliability of their excavators.

For heavy-duty applications, choosing a high-quality swing drive from reputable manufacturers ensures durability and operational efficiency.

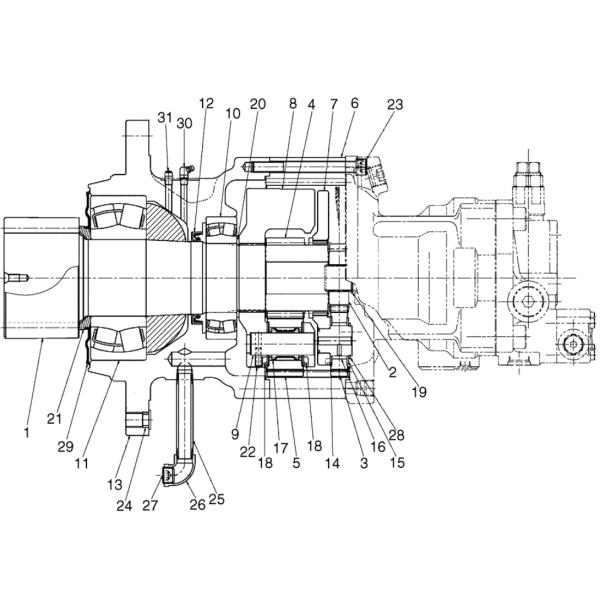

Parts on group

Pos. Part No Qty Parts name Comments
1. YN32W01051P1 [1] SHAFT SM
2. YN32W01052P1 [1] GEAR SM
3. YN32W01117P1 [3] GEAR SM Pinton
4. YN32W01054P1 [1] GEAR SM
5. YN32W01055P1 [4] GEAR SM
6. YN32W01056P1 [1] RING GEAR SM
7. YN32W01123F1 [1] SPIDER KOB Spider, Inludes, Refs. 7-1 & 7-2
7-1. NSS [1] NOT SOLD SEPARAT CON Spider
7-2. NSS [3] NOT SOLD SEPARAT CON Shaft
8. YN32W01058P1 [1] CARRIER,Housing, Spider SM
9. YN32W01067P1 [4] SHAFT SM
10. YN32W01030P1 [1] SPHERICAL BEARING KOB Superseded by part number: 25Z804D18
11. YN32W01029P1 [1] SPHERICAL BEARING KOB Superseded by part number: R25P0047D9
12. YN32W01060P1 [1] OIL SEAL SM
13. YN32W01104P1 [1] BOX SM Superseded by part number: YN32W00022F2
14. YN32W01026P1 [3] THRUST WASHER KOB
15. YN32W01028P1 [3] THRUST WASHER KOB
16. YN32W01022P1 [102] ROLLER KOB
17. YN32W01072P1 [4] NEEDLE BEARING SM
18. YN32W01063P1 [8] WASHER SM
19. ZR16X03500 [1] RING KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
20. ZR16X09000 [1] RING KOB Retaining -- ID 84.50 x OD 108 x 3.0mm
21. YN32W01082P1 [1] SLEEVE SM
22. ZP26D08025 [4] PIN KOB Roll -- OD 08 x 25mm Long
23. HS23C14135G1 [11] SCREW,M14 x 135mm SM M14x2.0x135mm
24. PV02B01073DB [2] CAP KOB 18.4mm Plastic
25. YN32W01080D1 [1] RIGID TUBE SM 1/2" PT x 112mm Long
26. ZG31U08000 [1] HYD CONNECTOR SM Elbow, 90° -- 1/2" PT
27. ZE82T08000 [1] PLUG KOB 1/2" PT
28. ZR16X04000 [3] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
29. YN32W01081P1 [1] OIL SEAL SM
30. ZG91V02000 [1] LUBE NIPPLE,67 Degree x 1/8" PT KOB 67° x 1/8" PT Superseded by part number: 72283072
31. 2444Z3305 [1] BREATHER KOB 1/8"PT
