Specifications
Brand Name :
HOPE
Model Number :
HP45
Certification :
ISO900; CE(EU)
Place of Origin :
China
MOQ :
30 PIECE
Price :
CNY 10300 -13390 RMB/PIECE
Delivery Time :
5-8 DAYS
Packaging Details :
Wooden box
Piston :
40CrNiMo
oil seals :
NOK
Body :
20CrMoA,carburized,quenched
Chisel :
42CrMo
Chisel diameter :
85mm
Weight :
760 kg
Drive flow :
60-100litre/min
Working pressure :
130-160 kg/cm2
Impact frequency :
400-800 b.m.p
Valve :
20CrMo
Through Bolt*4s :
42CrMo
Length :
2120mm
Description

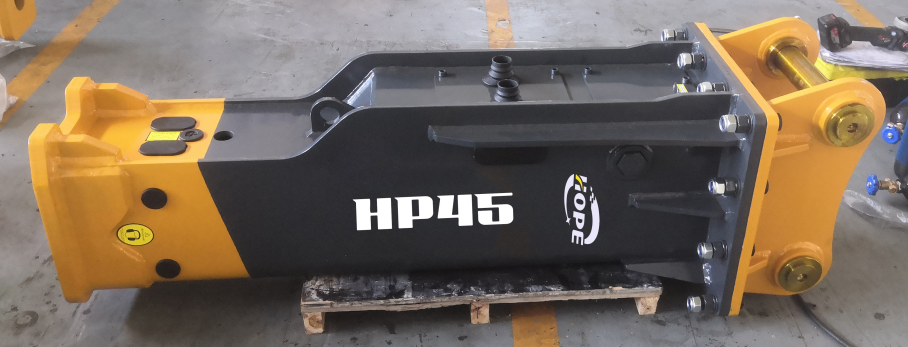

HOPE Hydraulic Breaker

HOPE silenced hydraulic breaker

Bid farewell to the deafening noise of traditional breaking hammers and enjoy a quiet and efficient demolition experience.
Adopting advanced noise reduction technology, the volume is significantly reduced during operation, preventing your construction site from being disturbed by noise.
It has a strong impact force and an extremely high breaking efficiency.

With excellent performance and durable quality, it can withstand the test of time and high-intensity operations.
Efficient, quiet, reliable, easy to control and convenient to operate.

Percussion Liugong Excavator Breaker Hammer Machine 7-14 Ton85Percussion Liugong Excavator Breaker Hammer Machine 7-14 Ton85

Description

1.Adjust the strike energy according to the hardness of material.
2.High efficiency of reversing valve.High precision,strict roundness and concentricity quality inspection ensure that the valve is not stuck.
3.High-quality material such as 42CrMo is adopted on the chisel to support high strength,toughness,hardenability,fatigue limit and multiple impact resistance after quenching and tempering treatment.
4.Using the high-quality carbon structural steel,the screws have higher strength,good mechanical properties and deformation resistance.
5.Less maintenance cost.

Percussion Liugong Excavator Breaker Hammer Machine 7-14 Ton85Percussion Liugong Excavator Breaker Hammer Machine 7-14 Ton85

Percussion Liugong Excavator Breaker Hammer Machine 7-14 Ton85Percussion Liugong Excavator Breaker Hammer Machine 7-14 Ton85

Specification

ITEMS SILENCED TYPE BREAKER
Models 35 40 45 53 68 70 75 85 100 140 155 165 175
Gross Weight(kg) 150 150 180 210 370 370 475 760 1000 1940 2960 3440 3900
Length(mm) 1085 1085 1270 1410 1610 1610 1870 2120 2390 2870 3120 3460 3660
Driving Flow-Rate(litre/min) 15-25 15-25 20-30 25-50 40-70 40-70 50-90 60-100 80-110 120-180 180-240 200-260 210-290
Operating Pressure(Kg/cm2) 90-120 90-120 90-120 90-120 95-130 95-130 120-150 130-160 150-170 160-180 160-180 160-180 160-180
Striking Frequency(b.m.p) 800-1400 800-1400 700-1200 600-1100 500-900 500-900 400-800 400-800 350-700 350-500 350-450 250-400 200-350
Hose Diameter(inch) 1/2 1/2 1/2 1/2 1/2 1/2 1/2 3/4 3/4 1 5/4 5/4 5/4
Rod Diameter(mm) 35 40 45 53 68 70 75 85 100 140 155 165 175
Applicable Vehicle Weight(ton) 0.8-2.5 0.8-2.5 1.2-3 2-3.5 4-6 4-6 4.5-7 7-14 10-15 18-26 28-35 30-40 35-50

ABOUT US

Yantai Hope Precision Machinery Co., Ltd. specializes in the technical R&D and sales services of hydraulic breakers, wood grabbers, vibration hammers and other excavators and accessories. It adopts world-class production lines, high-quality alloy steel, advanced and reasonable oil channel design, rigorous heat treatment technology, first-class professional R&D team and more than 10 years of production experience. It has super striking power, stable work, economical and durable, and is suitable for various harsh working environments.It occupies the most cutting-edge information and development advantages, and leads the cutting-edge of excavators.

We produce our own brand by ourselves, the models of our products respectively are SB05, SB10,SB20,SB30,SB35,SB40,SB43,SB45,SB70,SB81 and other models.Our products are based on the quality of development. We use the highest quality raw materials and the most advanced manufacturing processes to provide the most durable quality products and best appearance and after-sale services.

The hydraulic breaker and other equipment produced by the company have successfully passed the ISO9001/2000 international quality management system certification and EU-CE certification with excellent quality control system, and have been selected into the "preferred domestic brand" of the China Council for the Promotion of International Trade. It has won many honors in the industry quality evaluation, attracting many franchisees to visit the factory and negotiate the agency to join.

Hope adheres to the enterprise concept of sincerity, truth-seeking and development, provides customers with high-quality technical support, and is always committed to becoming an international first-class enterprise on the basis of satisfying customers and gaining the trust of customers.

Percussion Liugong Excavator Breaker Hammer Machine 7-14 Ton85Percussion Liugong Excavator Breaker Hammer Machine 7-14 Ton85
