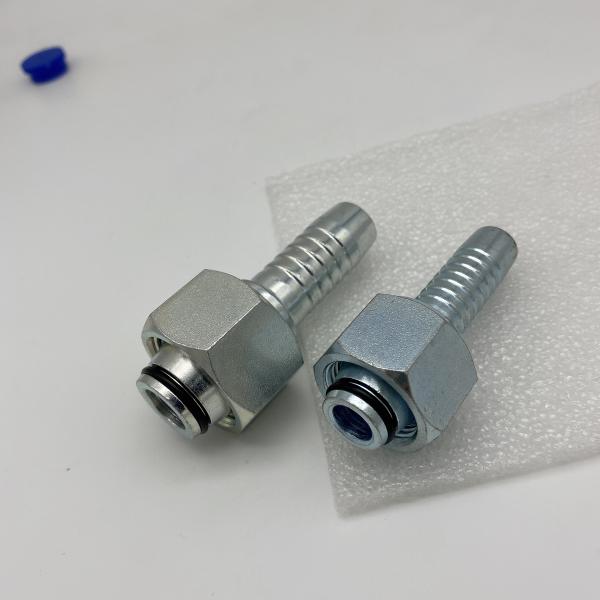

20411 Hydraulic Fittings Jic / Npt / Bsp / Sae / Din / Metric Female O Ring 24 Degree Cone Reusable
20411 Hydraulic Fittings Jic / Npt / Bsp / Sae / Din / Metric Female O Ring 24 Degree Cone Reusable
20411 Hydraulic Fittings Jic / Npt / Bsp / Sae / Din / Metric Female O Ring 24 Degree Cone Reusable
20411 Hydraulic Fittings Jic / Npt / Bsp / Sae / Din / Metric Female O Ring 24 Degree Cone Reusable
20411 Hydraulic Fittings Jic / Npt / Bsp / Sae / Din / Metric Female O Ring 24 Degree Cone Reusable
20411 Hydraulic Fittings Jic / Npt / Bsp / Sae / Din / Metric Female O Ring 24 Degree Cone Reusable
Specifications
Brand Name :
YADE
Model Number :
20411 hose fittings
Place of Origin :
Zhejiang, China
MOQ :
100 Pieces
Price :
be negotiation
Product name :
hydraulic hose fittings
Model :
20411 hose fittings
Material :
stainless steel or carbon steel
suitable medium :
water / oil / gas
Technics :
hot forge ,CNC machine
Connection :
female
Surface treatment :
Trivalent zinc plated
Application :
industry excavator
Assemble way :
crimp,lock on
Size :
1/4"-2"
Type :
Hydraulic Filters
Package Type :
Neutral export package: carton box with plastic bag then into woodem plastic
Description

Product Name

20411 Jic/npt/bsp/sae/din/Metric Female O-Ring Hose Fitting 24 Degree Cone Reusable Hydraulic Hose Fitting

BSP thread with captive seal

hydraulic pressure hose

hydraulic hose coupling

hydraulic hose crimp fittings

20411 Hydraulic Fittings Jic / Npt / Bsp / Sae / Din / Metric Female O Ring 24 Degree Cone Reusable

PART NO.
THREAD E
DN
DASH
TUBE O.D.
O RING
20411-12-04
M12*1.5
6
4
6
O4.5*1.5
20411-16-04
M16*1.5
6
4
10
O8.0*1.5
20411-18-06
M18*1.5
10
6
12
O10.0*1.5
20411-26-10
M26*1.5
16
10
18
O15.0*2.0
20411-27-10T
M27*1.5
16
10
18
O15.0*2.0
20411-27-12
M27*1.5
20
12
18
O15.0*2.0
20411-30-10T
M30*2
16
10
22
O20.0*2.0
20411-30-12
M30*2
20
12
22
O20.0*2.0
20411-36-12T
M36*2
20
12
28
O26.0*2.0
20411-36-14T
M36*2
22
14
28
O26.0*2.0
20411-45-16T
M45*2
25
16
35
O32.0*2.5
20411-45-20T
M45*2
32
20
35
O32.0*2.5
20411-52-20T
M52*2
32
20
42
O38.0*2.5
20411-52-24T
M52*2
40
24
42
O38.0*2.5
