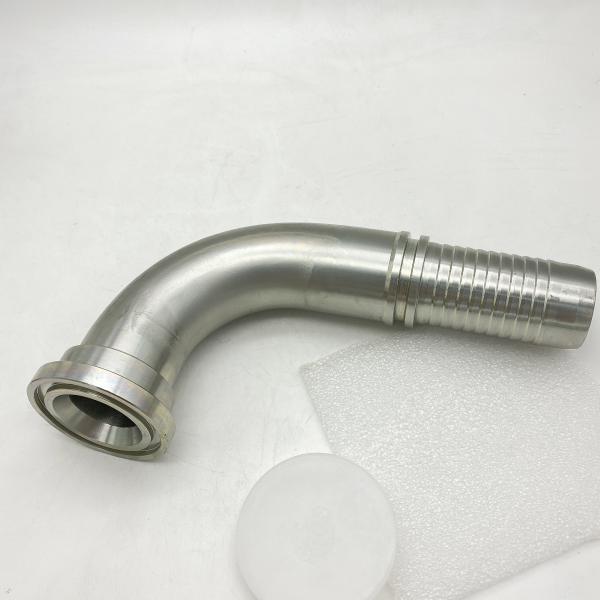

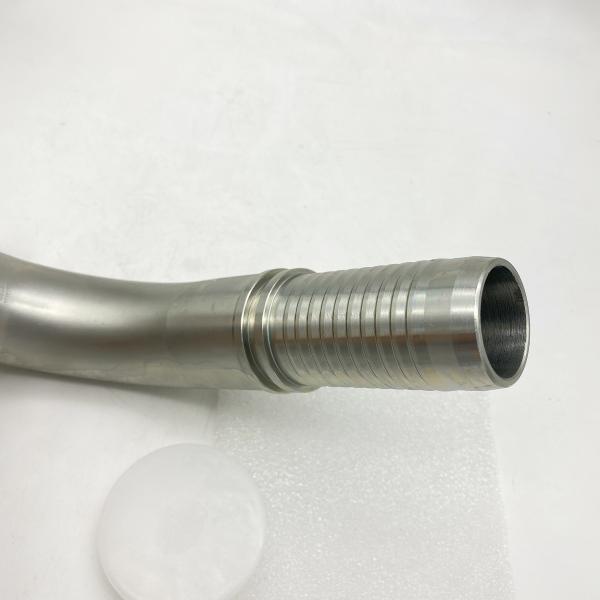

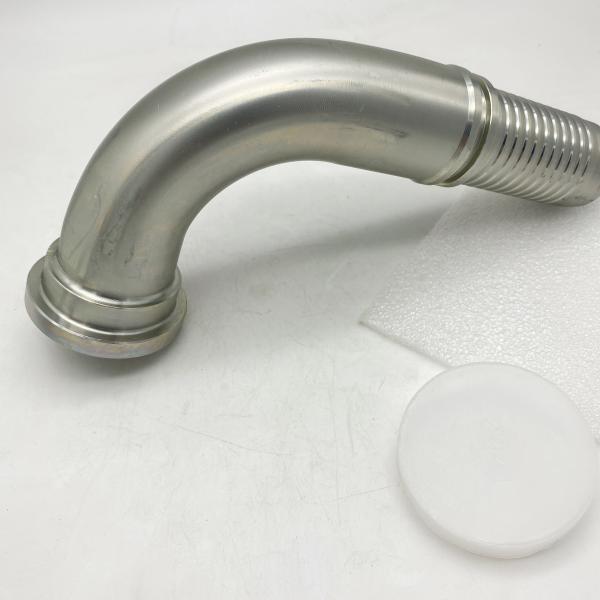

87392-16-16 90 Elbow Sae Hydraulic Hose Flange Fitting 3000 Psi
87392-16-16 90 Elbow Sae Hydraulic Hose Flange Fitting 3000 Psi
87392-16-16 90 Elbow Sae Hydraulic Hose Flange Fitting 3000 Psi
87392-16-16 90 Elbow Sae Hydraulic Hose Flange Fitting 3000 Psi
87392-16-16 90 Elbow Sae Hydraulic Hose Flange Fitting 3000 Psi
87392-16-16 90 Elbow Sae Hydraulic Hose Flange Fitting 3000 Psi
Specifications
Brand Name :
YADE
Model Number :
hydraulic hose flange
Place of Origin :
Zhejiang, China
MOQ :
100 Pieces
Price :
be negotiation
Product name :
hydraulic hose flanve
Model :
SAE flange
Material :
stainless steel or carbon steel
suitable medium :
water / oil / gas
Technics :
hot forge ,CNC machine
Surface treatment :
Trivalent zinc plated
Application :
industry excavator
Assemble way :
crimp,lock on
Size :
1/4"-2"
Type :
Hydraulic Filters
Package Type :
Neutral export package: carton box with plastic bag then into woodem plastic
Description

Product Name

87392-16-16 Reusable Hydraulic Hose Fittings 90 Elbow SAE Flange Hydraulic Flange Fitting 3000 PSI Hose Flange

　 　 HOSE BORE DIMENSIONS
PART NO. FLANGE SIZE DN DASH A C D H L
87392-08-08 1/2" 12 8 41 30.2 24 47 6.73
87392-12-08 3/4" 12 8 41 38.1 31.7 48 6.73
87392-12-10 3/4" 16 10 56.5 38.1 31.7 52.5 6.73
87392-12-12 3/4" 20 12 66.2 38.1 31.7 62 6.73
87392-12-12(H100) 3/4" 20 12 65.5 38.1 31.7 100 6.73
87392-12-12(H127) 3/4" 20 12 65.5 38.1 31.7 127 6.73
87392-12-12(H150) 3/4" 20 12 65.5 38.1 31.7 150 6.73
87392-12-16 3/4" 25 16 76.7 38.1 31.7 67.5 6.73
87392-16-12 1" 20 12 66.2 44.4 38 62 8
87392-16-16 1" 25 16 78 44.4 38 67.5 8
87392-16-16(H100) 1" 25 16 76.7 44.4 38 100 8
87392-16-16(H127) 1" 25 16 76.7 44.4 38 127 8
87392-16-16(H150) 1" 25 16 76.7 44.4 38 150 8
87392-16-20 1" 32 20 91.5 44.4 38 78.5 8
87392-20-16 1.1/4" 25 16 78 50.8 43 67.5 8
87392-20-20 1.1/4" 32 20 91.5 50.8 43 78.5 8
87392-20-20(H100) 1.1/4" 32 20 91.5 50.8 43 100 8
87392-20-20(H127) 1.1/4" 32 20 91.5 50.8 43 127 8
87392-20-20(H150) 1.1/4" 32 20 91.5 50.8 43 150 8
87392-20-24 1.1/4" 40 24 108.5 50.8 43 78.5 8
87392-24-20 1.1/2" 32 20 91.5 60.3 50 80.5 8
87392-24-24 1.1/2" 40 24 109.4 60.3 50 94 8
87392-24-24(H127) 1.1/2" 40 24 109.4 60.3 50 127 8
87392-32-24 2" 40 24 109.4 71.4 62 94 9.53
87392-32-32 2" 50 32 131.8 71.4 62 114.3 9.53
87392-40-32 2.1/2" 50 32 131.8 84.1 74.4 114.3 9.53

hydraulic hose fittings are production according the EATON standard ,in normal ,we used the carbon steel ,stainless steel and brass material ,if you have production quantities ,we can supply the material according to your requirement
