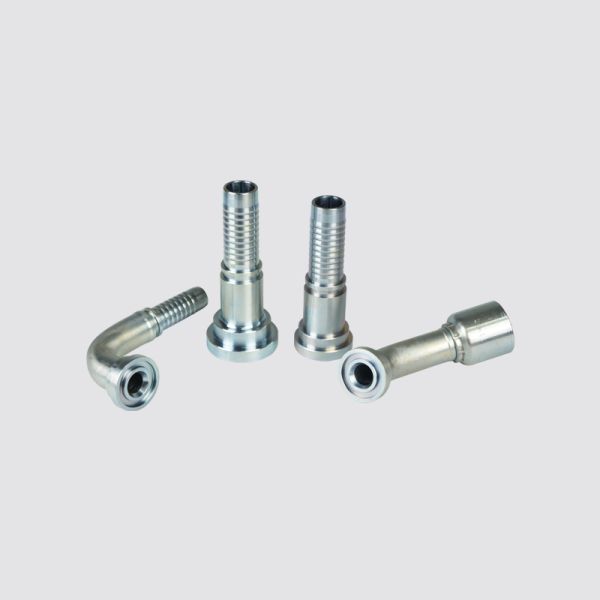

SAE 3000psi 1 Inch Hydraulic Hose Fittings Forged Flange
SAE 3000psi 1 Inch Hydraulic Hose Fittings Forged Flange
SAE 3000psi 1 Inch Hydraulic Hose Fittings Forged Flange
SAE 3000psi 1 Inch Hydraulic Hose Fittings Forged Flange
SAE 3000psi 1 Inch Hydraulic Hose Fittings Forged Flange
SAE 3000psi 1 Inch Hydraulic Hose Fittings Forged Flange
Specifications
Brand Name :
YADE
Model Number :
hydraulic hose flange
Place of Origin :
Zhejiang, China
MOQ :
100 Pieces
Price :
be negotiation
Product name :
hydraulic hose flanve
Model :
SAE flange
Material :
stainless steel or carbon steel
suitable medium :
water / oil / gas
Technics :
hot forge ,CNC machine
Surface treatment :
Trivalent zinc plated
Application :
industry excavator
Assemble way :
crimp,lock on
Size :
1/4"-2"
Type :
Hydraulic Filters
Package Type :
Neutral export package: carton box with plastic bag then into woodem plastic
Description

Product Name

SAE flange 3000psi Hydraulic Hose End Fittings Forged Flange Hydraulic Hose Flange


SAE flange are production according the EATON standard ,in normal ,we used the carbon steel ,stainless steel and brass material ,if you have production quantities ,we can supply the material according to your requirement

HOSE BORE DIMENSIONS
PART NO. FLANGE SIZE DN DASH A C D L
87312-08-08 1/2" 12 8 46 30.2 24 6.73
87312-12-08 3/4" 12 8 47 38.1 31.7 6.73
87312-12-10 3/4" 16 10 48 38.1 31.7 6.73
87312-12-12 3/4" 20 12 48 38.1 31.7 6.73
87312-12-16 3/4" 25 16 49 38.1 31.7 6.73
87312-16-12 1" 20 12 51 44.4 38 8
87312-16-16 1" 25 16 52 44.4 38 8
87312-16-20 1" 32 20 53 44.4 38 8
87312-20-16 1.1/4" 25 16 57 50.8 43 8
87312-20-20 1.1/4" 32 20 58 50.8 43 8
87312-24-20 1.1/2" 32 20 68 60.3 50 8
87312-24-24 1.1/2" 40 24 68 60.3 50 8
87312-32-24 2" 40 24 70 71.4 62 9.53
87312-32-32 2" 50 32 70 71.4 62 9.53
87312-40-40 2.1/2" 64 40 76 84.1 74 9.53
